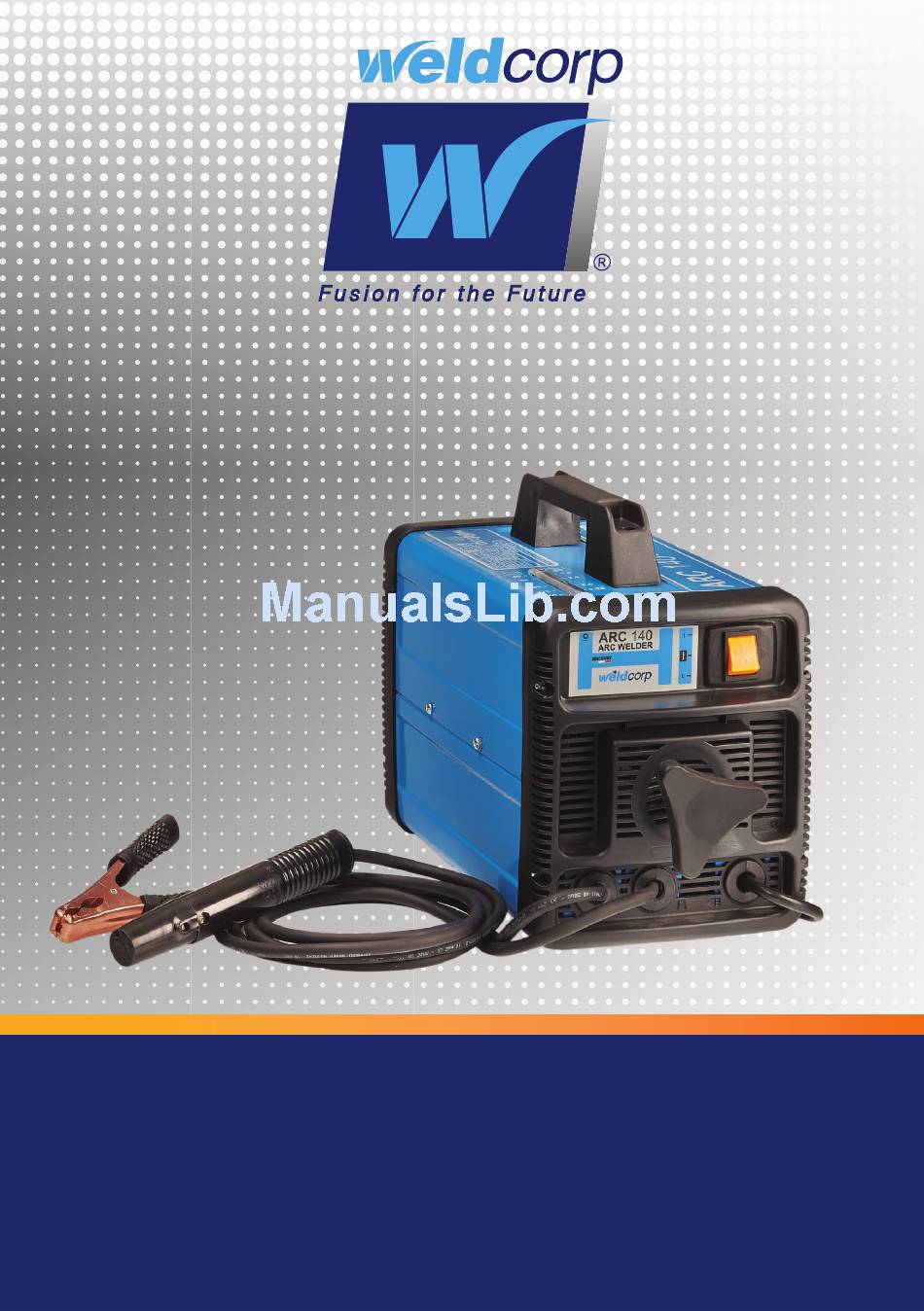

- Page 1 OWNER’S OPERATING MANUAL ARC 140 AMP WELDER...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Page Safety instructions Inverter Arc Welder Welder Information Arc 140 AMP welder set up Assembly instructions Operation Welding Information Wiring Diagram Troubleshooting guide 11-12 Spare Parts List 13-14 Warranty Information 15-16... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS When using power equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury, including the following. If used correctly, welders pose little risk to the operator; however, care should always be taken to ensure safety and proper performance. - Page 5 • DON’T OVERREACH: Keep proper footing and balance at all times. • DRESS PROPERLY: DO NOT wear loose clothing or jewellery. They can be caught in moving parts. Wear protective hair covering to cover long hair, and gloves and non-slip footwear is recommended when working outdoors.
-
Page 6: Inverter Arc Welder
ARC 140 AMP WELDER This model is a portable single -phase AC Arc Welder which is compact. The robust format makes them a versatile and efficient for a variety of uses. The welders compliance to current regulations and the optimum quality of materials used will ensure a long working life with complete safety. -
Page 7: Arc 140 Amp Welder Set Up
ARC 140 AMP WELDER SET UP ASSEMBLY INSTRUCTIONS- 1) Slide the handle into the grooves on top of the machine and insert screws. Page 6... -
Page 8: Operation
OPERATION Plug the welder power supply lead into any earthed domestic power point. Flick on the on/off The amperage can be adjusted from low to high by rotating the front amperage knob and viewing the amperage gauge. Select the correct diameter electrode accordingly to the thickness of the piece that you intend to weld. -
Page 9: Welding Information
ESTABLISHING THE ARC STRIKING THE ARC Strike the metal to be welded with the electrode as pictured. MAKING THE WELD The weld is made by feeding the electrode into the molten pool and at the same time move the electrode along the joint at a 30 to 40 angle at a speed needed to deposit the required size of weld. - Page 10 WELDING BASICS The welding surface should be free of rust or paint. Choose the electrode in accordance with the material being welded. It is advisable to initially test the electrode and amperage on some scrap metal. Place the electrode at a distance of 2 cm from the work piece and place the face shield in position to protect the eyes.
-
Page 11: Wiring Diagram
WIRING DIAGRAM Page 10... -
Page 12: Troubleshooting Guide
TROUBLESHOOTING GUIDE Page 11... -
Page 13: Troubleshooting Guide
TROUBLESHOOTING GUIDE If you are still having difficulty with your welder, do not hesitate to contact our service team on: 1800 011 812 Page 12... -
Page 14: Spare Parts List
SPARE PARTS LIST - ARC 140 AMP Product Code: WC00001 Page 13... - Page 15 SPARE PARTS LIST - ARC 140 AMP Product Code: WC00001 Page 14...
-
Page 16: Warranty Information
1YEAR WARRANTY Subject to the warranty conditions below, this Weldcorp product (“the Product”) is warranted by Cyclone Tools Pty Ltd (“the Company”) to be free from defects in material or workmanship for a period of 12 months from the date of original purchase (“the Warranty Period”). - Page 17 WARRANTY FORM THIS WARRANTY FORM SHOULD BE REAINED BY THE CUSTOMER AT ALL TIMES For your record and to assist in establishing date of purchase (necessary for in warranty service) please keep your purchase docket and this form completed with the following particulars. PURCHASED FROM SUBURB DATE...
- Page 18 Manufactured in Italy Cyclone Tools Pty Ltd ABN 89 169 427 061 73C Elizabeth Street Wetherill Park NSW 2164 www.weldcorp.com.au AUS Helpline: 1800 001 812...
