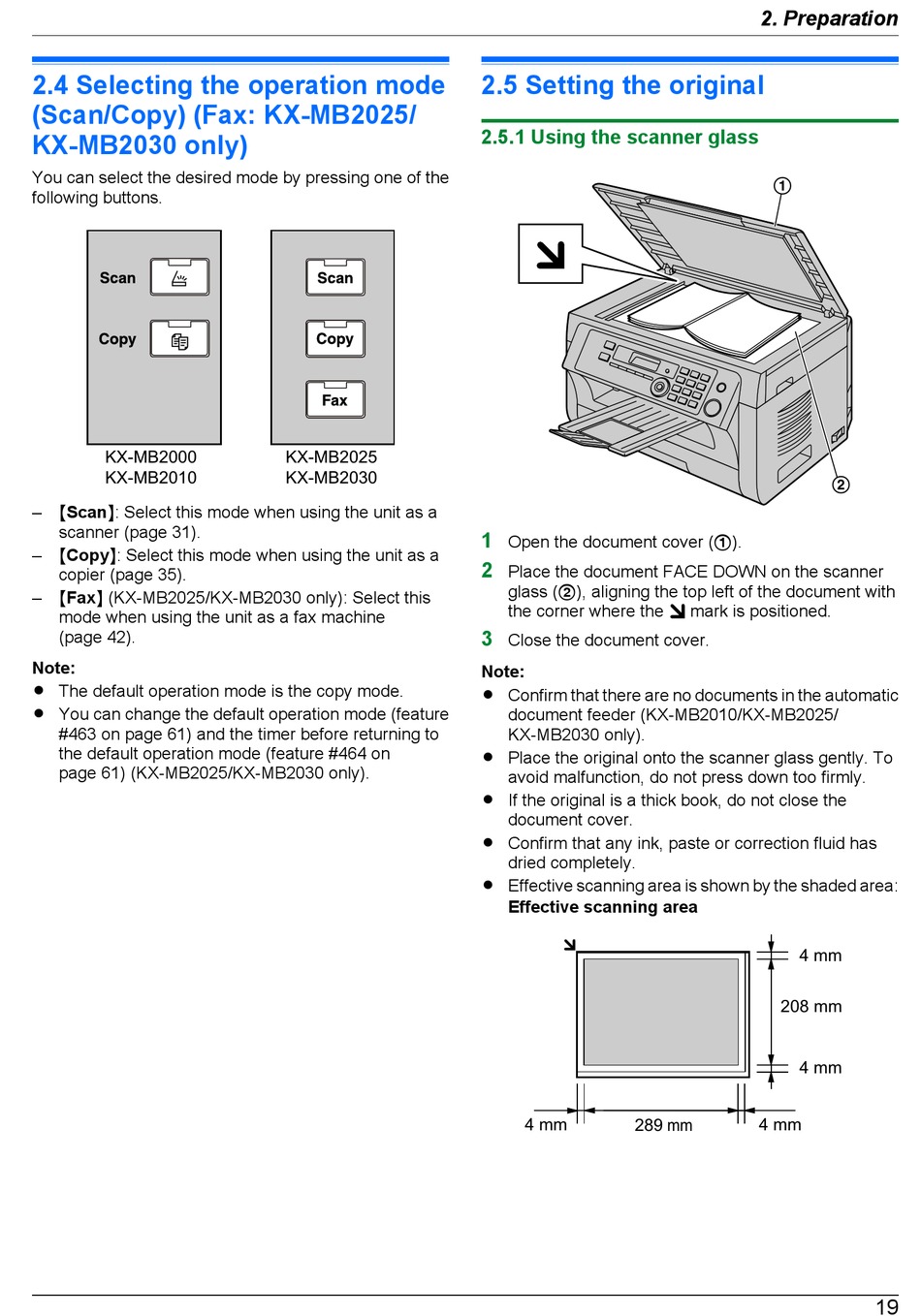

2.4 Selecting the operation mode
(Scan/Copy) (Fax: KX-MB2025/
KX-MB2030 only)
You can select the desired mode by pressing one of the
following buttons.
KX-MB2000
KX-MB2010
– MScanN: Select this mode when using the unit as a
scanner (page 31).
– MCopyN: Select this mode when using the unit as a
copier (page 35).
– MFaxN (KX-MB2025/KX-MB2030 only): Select this
mode when using the unit as a fax machine
(page 42).
Note:
R The default operation mode is the copy mode.
R You can change the default operation mode (feature
#463 on page 61) and the timer before returning to
the default operation mode (feature #464 on
page 61) (KX-MB2025/KX-MB2030 only).
KX-MB2025
KX-MB2030

2.5 Setting the original

2.5.1 Using the scanner glass

1
Open the document cover (A).
2
Place the document FACE DOWN on the scanner
glass (B), aligning the top left of the document with
the corner where the
3
Close the document cover.
Note:
R Confirm that there are no documents in the automatic
document feeder (KX-MB2010/KX-MB2025/
KX-MB2030 only).
R Place the original onto the scanner glass gently. To
avoid malfunction, do not press down too firmly.
R If the original is a thick book, do not close the
document cover.
R Confirm that any ink, paste or correction fluid has
dried completely.
R Effective scanning area is shown by the shaded area:
Effective scanning area
4 mm 289 mm
2. Preparation
A
B
mark is positioned.
4 mm
208 mm
4 mm
4 mm
19
