Panasonic SD48C10JAU6 Specification Sheet

MATSUSHITA Compressor
MODEL# SD48C10JAU6
Voltage Range . . . . . . . . . 103 Volts to 127 Volts @ 60 Hz
Application . . . . . . . . . . . . Low Back Pressure
Compressor Cooling . . . . Static Cooling
Rated Performance Data
Capacity . . . . . . . . . . . . . . 550 Btu/h ±10% *
E.E.R. . . . . . . . . . . . . . . . . . 4.43 Btu/Wh ±10% *
Current . . . . . . . . . . . . . . . 1.25 Amps *
Nominal Motor Data
Rated Current . . . 1.28 Amps
Locked Rotor . . . . . . . . . . 10.30 Amps
Start Current . . . . . . . . . . 18.29 Amps
Coil Resistances
Run . . . . 3.45 Ohms
@ 68°F (20°C)
Start . . . 5.36 Ohms
*Test Conditions for Performance Specifications
Test Oil . . . . . . . . . . . . . . . . Freol
Shell Temp . . . . . . . . . . . . . . 170.0°F / 76.0°C
Condensing Temp . . . . . . . . . 130.0°F / 54.4°C
Evaporating Temp . . . . . . . . .-10.0°F / -23.3°C
Ambient Temp . . . . . . . . . . . . 90.0°F / 32.2°C
Gas Superheat . . . . . . . . . . . 90.0°F / 32.2°C
Liquid Sub-Cooling . . . . . . . . 90.0°F / 32.2°C
Electrical Accessories
Overload Protector
Nominal Operating Characteristics
T130AH6 . 1
Model Name
Manufacturer Matsushita
Temperature To . . . . . . . . . . . Open: 266°F ± 9°F / 130°C ± 5°C
Close: 176°F ± 27°F / 80°C ± 15°C
Trip Current . . . . . . . . . . . . . . @212°F (100°C) 3.8 to 4.8 Amps
@77°F (25°C) 16.5 Amps @ 13 sec. max.
†
P.T.C. Starting Device
Nominal Operating Characteristics
Model Name PTH490D-AS4R7
Manufacturer Murata Mfg.
Base resistance
@ 77°F(25°C) ±20%
Power Consumption (max)
Operation time 1.3 to 3.0
Recovery time (max)
Run Capacitor
†Although these accessories are listed by UL/CSA for use with this compressor,
Matsushita assumes no responsibility whatsoever for these or any other components
sourced by the refrigeration system manufacturer from third parties.
Panasonic
Motor Input . . . . . 124 Watts*
Type . . . . . . . . . . RSCR, PTC relay
22
PTH7M4R7MD2
Murata Mfg.
4.7 4.7
3.3 3.0
0.7 to 2.2 seconds
65 70 seconds
12 µF 180 V (min.)
Refrigerant Control . . Capillary Tube
Evaporator
Temp. Range . . . . . . . -31°F to 23°F / -35°C to -5°C

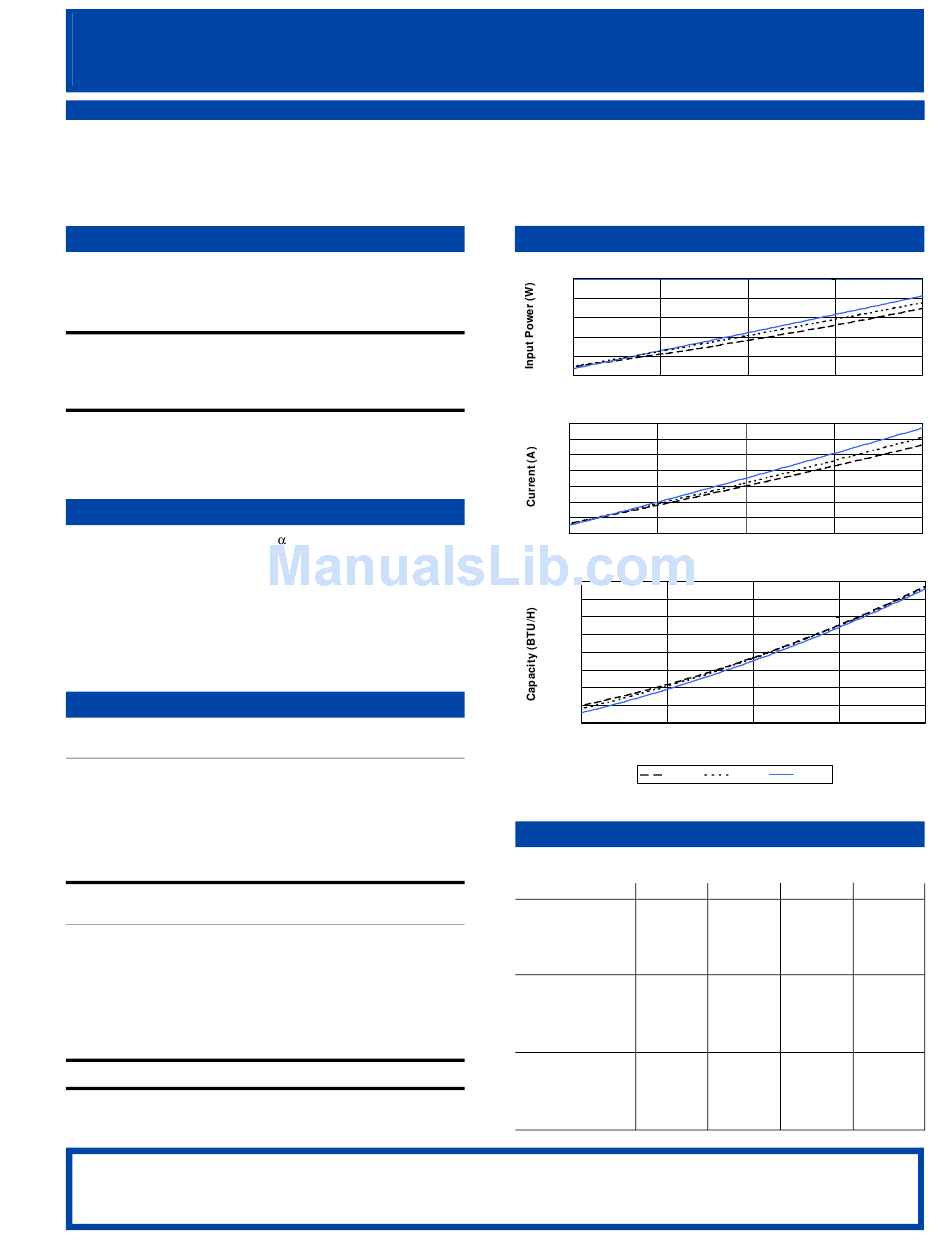

Performance Curves
180
160
140
120
100
80
-30
1.6
1.5
1.4
1.3
1.2
1.1
1.0
0.9
-30
1,000
900
800
700
600
500
400
300
200
-30
9 – Point Data
Condensing Temp.
130°F
120°F
Ohms
Watts
110°F
Panasonic Industrial Company
®
Refrigeration Products Department
Tel: 201 - 392 - 4249
Fax: 201 - 392 - 4315
Single Phase
R-134a
-20 -10
-20 -10
-20 -10
Evaporating Temperature (°F)
110°F 120°F 130°F
Evaporating Temp.
Rating -30°F -10°F
Btu/h 256 550
Watts 87 124
Amps 0.95 1.25
E.E.R. 2.94 4.43
Btu/h 280 563
Watts 89 121
Amps 0.96 1.22
E.E.R. 3.15 4.65
Btu/h 297 567
Watts 89 116
Amps 0.96 1.20
E.E.R. 3.34 4.89
115 V
60 Hz
0 10
0 10
0 10
+10°F
956
162
1.57
5.90
963
155
1.51
6.21
970
149
1.46
6.51
Rev#1-5/9
