Summary of Contents for Jet JCDC-3

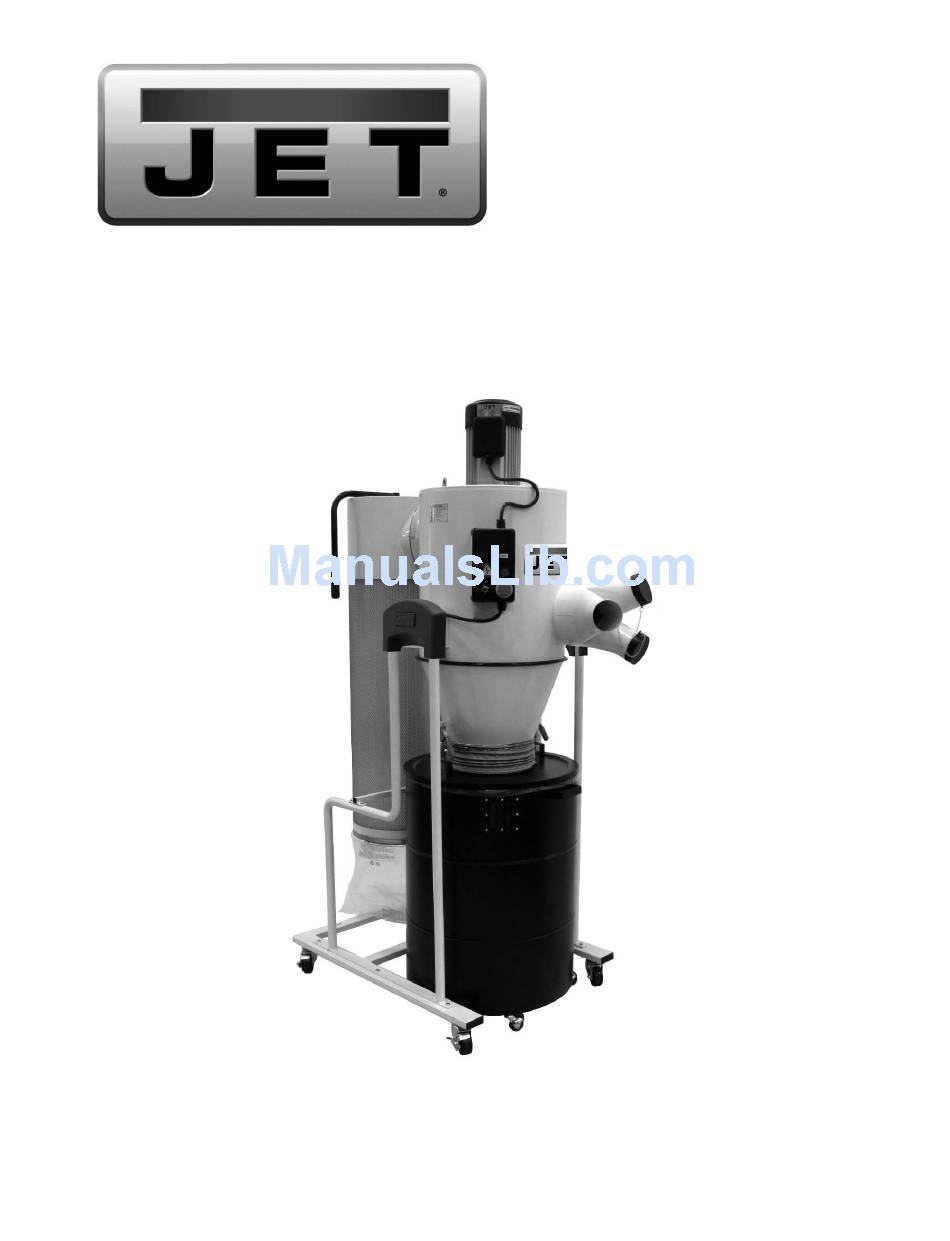

- Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual 3HP Mobile Cyclone Dust Collector Model JCDC-3 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-717530 Ph.: 800-274-6848 Edition 2 08/2015 www.jettools.com Copyright © 2015 JET...
-
Page 2: Important Safety Instructions
5. Do not use this dust collector for other than its function. Check for alignment of moving parts, intended use. If used for other purposes, JET binding of moving parts, breakage of parts, disclaims any real or implied warranty and holds... -
Page 3: About This Manual
Whatever accepted methods are used, always make personal safety a priority. If there are questions or comments about this product, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 4: Table Of Contents
10.2 Performance problems ........................... 14 11.0 Replacement Parts ............................. 14 11.1.1 JCDC-3 Cyclone Dust Collector – Exploded View ................15 11.1.2 JCDC-3 Cyclone Dust Collector – Parts List ..................16 12.0 Electrical Connections – JCDC-3 ....................... 18 ... -
Page 5: Specifications
4.0 Specifications Model number ............................JCDC-3 Stock numbers: Complete kit ............................717530K Main unit only ............................717530 Canister filter only ..........................717530F Motor and electricals: Motor type ................ .totally enclosed fan cooled, induction, capacitor start Horsepower ........................... 3 HP (2.2kW) Phase ................................ - Page 6 Shipping weight (canister filter only) ....................33 lb. (15 kg) The specifications in this manual were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations.
-
Page 7: Setup And Assembly
Do not discard carton or packing material until dust collector is assembled and running satisfactorily. 5.2 Shipping contents – JCDC-3 Main carton (see Figure 1) Main housing – A Funnel – B Base –... -
Page 8: Tools Required For Assembly
5.3 Tools required for assembly 5. Lift main housing (A) using hoist with straps through lifting rings atop main housing. If hoist Hex keys, 4mm and 5mm (provided) is not available, at least 2 persons must lift Open-end wrench, 10/12mm (provided) housing. - Page 9 11. Apply foam tape (U) around inlet port near edge. See Figure 10. The foam tape should completely encircle the port. 12. Install inlet adaptor (I) on main housing and secure with pan head screw (HP1). 13. Apply foam tape (W) just above lower lip of canister filter.
-
Page 10: Electrical Connections
Failure to comply may result in serious injury. The JCDC-3 Dust Collector is rated at 230-volt power only. The dust collector comes with a plug designed for use on a circuit with a grounded outlet that looks like the one pictured in Figure 15. -
Page 11: Extension Cords
Ampere Total length of Improper connection of the Volts Rating cord in feet equipment-grounding conductor can result in a risk of electric shock. Check with a qualified More electrician or service person if you are in doubt More Than as to whether the outlet is properly grounded. Than Do not modify the plug provided with the appliance –... -
Page 12: Dust Hose Connection
Any other servicing should be performed by an efficiency, and may create a safety hazard. authorized service representative. Contact your nearest JET distributor for a line of Dust Collector hoses and accessories. You can customize your installation and obtain maximum performance with dust hoods, hoses, clamps, fittings, and blast gates. -
Page 13: Optional Accessories
9.0 Optional accessories Part no. Description 717511 Canister collection bag for JCDC (package of 5) 717531 Drum collection bag for JCDC-3 (package of 5) Table 2 10.0 Troubleshooting the JCDC-3 10.1 Electrical and motor problems Symptom Possible Cause Correction* Motor will not start. -
Page 14: Performance Problems
10.2 Performance problems Symptom Possible Cause Correction Poor performance; lack Hose improperly secured at dust Inspect and remedy. of suction. origination point. Inlet port is open. Cap unused inlet ports. Collection bag is full. Empty bag (check sight window). Collection drum not sealed properly. Inspect drum for leaks, make sure lid is tight. -
Page 15: Jcdc-3 Cyclone Dust Collector - Exploded View
11.1.1 JCDC-3 Cyclone Dust Collector – Exploded View... -
Page 16: Jcdc-3 Cyclone Dust Collector - Parts List
34-4 ... JWL1221VS-314 ..Mach Screw, Pan HD, Phillips ......... M3 x 12 ....... 24 34-5 ... JCDC3-34-5 ....Bag Frame Support -Short........7mm ......4 35 ....717531 ...... Drum Collection Bag for JCDC-3 (pkg. of 5).... 980 x 1200 /mm .... 1 36 ....JCDC2-35 ....Clamp ..............Dia. 500 mm....1 37 .... - Page 17 Index No Part No Description Size 39 ....JCDC1.5-36 ....Quick Lever Assembly (Index # 39-1 thru # 39-4) ......... 2 39-1 ... JCDC1.5-36-1 ... Quick Lever....................2 39-2 ... 5712561 ....Mach Screw, Pan HD, Phillips ......... M5 x 8 ......8 39-3 ...
-
Page 18: Electrical Connections - Jcdc-3
12.0 Electrical Connections – JCDC-3... -
Page 19: Warranty And Service
JET sells through distributors only. The specifications listed in JET printed materials and on official JET website are given as general information and are not binding. JET reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason ®... - Page 20 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com...
