Page 1: Instruction Manual

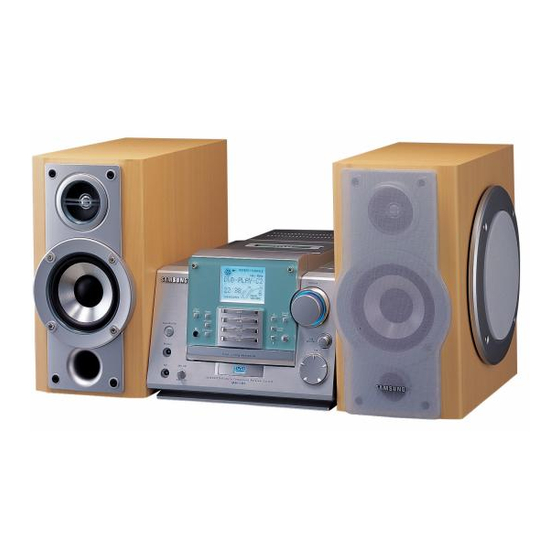

MICRO COMPONENT AUDIO SYSTEM MP3-CD/ CD-R/RW PLAYBACK MM-ZB9 Instruction Manual Downloaded From Disc-Player.com Samsung Manuals... -
Page 2: Safety Warnings
BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED. WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E OR BY THE EARTH SYMBOL , OR COLOURED GREEN OR GREEN AND YELLOW. Downloaded From Disc-Player.com Samsung Manuals... -
Page 3: Table Of Contents
ECOMMENDATIONS FOR Safety Precautions ....................................23 Cleaning Your Micro Component System..............................23 Precautions When Using Compact Discs ..............................24 Precautions When Using Audio Cassettes ..............................24 Before Contacting the After-Sales Service ..............................24 Technical Specifications ..................................25 Symbols Press Push Important Note Downloaded From Disc-Player.com Samsung Manuals... -
Page 4: Front Panel View
14. Multi Jog 5. CD Synchro 15. S.Bass Level Headphone Jack Connector 16. Sound Mode 7. AUX 17. Volume 8. CD Repeat 18. Power Surround 9. Stop 19. Sleep Push Eject (Cassette Door Open/Close) 10. DISC Tray Downloaded From Disc-Player.com Samsung Manuals... -
Page 5: Remote Control
Band TAPE Rewind CD Play TAPE Fast-Forward Rec/Pause, CD SYNCHRO Display (RDS) REV. Mode PTY (RDS) Repeat Deck Stop CD Stop Deck Play Program/Set Sleep Skip or Search TUNE/CD Mode Timer On/Off Mono/ST Timer/Clock Mute Downloaded From Disc-Player.com Samsung Manuals... -
Page 6: Rear Panel View
Rear Panel View DIGITAL OUT OPTICAL 1. CD Digital Out jack 2. AUX-Input 3. AM Aerial Connector Terminal 4. FM Aerial Connector Terminal 5. SUBWOOFER Speaker 6. MAIN Speaker Downloaded From Disc-Player.com Samsung Manuals... -
Page 7: Where To Install Your Micro Component System
Before plugging your system into a main socket, you must check the voltage. Plug the main lead (marked AC Cord on the rear of the system) into an appropriate socket. Press the On/Standby( ) button to switch your mini-compact system Downloaded From Disc-Player.com Samsung Manuals... -
Page 8: Connecting To An External Source
Remove the dust cap (1) from the CD DIGITAL OUT jack. Then, connect an optical cable plug to the CD DIGITAL OUT jack. When the CD DIGITAL OUT jack is not being used Attach the supplied dust cap. Downloaded From Disc-Player.com Samsung Manuals... -
Page 9: Connecting The Am (Mw)/Lw Aerial
If reception is poor, you may need to install an outdoor aerial. To do so, connect an outdoor FM aerial to the FM socket on the rear of the system using a 75Ω coaxial cable (not supplied). DIGITAL OUT OPTICAL DIGITAL OUT OPTICAL Downloaded From Disc-Player.com Samsung Manuals... -
Page 10: Viewing The Various Functions On Your System
Timer/Clock once. You can use the Multi Jog to instead button in step 4,6. Timer Timer/ On/Off Clock EQ/S.Bass Sleep TAPE REV. CD SYNC. Mode Display 3,5,7 Repeat Program/ Band VOL. TUNE/CD Mode VOL. Downloaded From Disc-Player.com Samsung Manuals... -
Page 11: To Replay The Cd/Mp3-Cd
S.Bass Level Tuning Mode If the button is pressed more than the number of tracks Multi Jog within the album, it moves to the next album. TAPE Open/Close Mono/ST S.Bass Level Tuning Mode Multi Jog Downloaded From Disc-Player.com Samsung Manuals... -
Page 12: Searching For A Specific Music Passage On A Cd
Album 01 Skipped Kevin01.mp3 Kevin.jpg Kevin02.mp3 Life.doc Kevin03.mp3 Kevin04.mp3 Album 02 Album 04 Summer05.mp3 Garden.mp3 Summer06.mp3 Garden.mp3 Album 03 Album 05 Michael07.mp3 Water.mp3 Michael08.mp3 Water.mp3 Skipped Album 06 Kenny01.wav Album 07 Kenny02.wav Butterfly.mp3 Piano14.mp3 John15.mp3 Downloaded From Disc-Player.com Samsung Manuals... -
Page 13: Function To Skip Through 10 Tracks At A Time
When you wish to stop the Repeat function, press EQ/S.Bass Sleep TAPE TAPE REV. CD SYNC. Display Mode REV. CD SYNC. Display Mode Repeat Repeat Program/ VOL. Band Program/ Band VOL. TUNE/CD Mode TUNE/CD Mode VOL. VOL. Mono/ST Mute Mono/ST Mute Downloaded From Disc-Player.com Samsung Manuals... -
Page 14: Programming The Order Of Playback
CD SYNC. Mode Display tracks in step 4, 8. REV. CD SYNC. Display Mode 2,3,5 Repeat 1, 9 Program/ Band VOL. TUNE/CD Repeat Mode Program/ Band VOL. VOL. TUNE/CD Mode VOL. Downloaded From Disc-Player.com Samsung Manuals... -
Page 15: Searching For And Storing The Radio Stations
TUNER /Band Demo REC/Pause Surround Mode On/Standby CD Synchro Sleep VOL. TAPE Open/Close CD Repeat Mono/ST S.Bass Level Tuning Mode Multi Jog Mono/ST Mute Phones Repeat Program/ VOL. Band VOL. TUNE/CD TUNE/CD Mode Mode VOL. Downloaded From Disc-Player.com Samsung Manuals... -
Page 16: About Rds Broadcasting
The CT information will take up to 2 minutes to be decoded there- fore the clock isn’t displayed immediately. If there is no received CT information, "NO CT" is displayed. TAPE Repeat REV. CD SYNC. Mode Display Downloaded From Disc-Player.com Samsung Manuals... -
Page 17: Pty (Program Type) Indication And Pty-Search Function
LEISURE TUNE/CD Mode JAZZ • Jazz Music COUNTRY • Country Music VOL. NATIONAL M • National Music Mono/ST Mute OLDIES • Oldies Music FOLK M • Folk Music DOCUMENT • Documentary • Alarm Test TEST Downloaded From Disc-Player.com Samsung Manuals... -
Page 18: Listening To A Cassette
Display Mode Volume Power Sound TUNER /Band Demo REC/Pause Surround Mode Repeat On/Standby CD Synchro Sleep TAPE Open/Close CD Repeat Mono/ST S.Bass Program/ VOL. Band Level Tuning Mode Multi Jog Phones TUNE/CD Mode MIC Mixing Downloaded From Disc-Player.com Samsung Manuals... -
Page 19: Recording A Compact Disc
) buttons to select the desired song. Press the REC/Pause button. Result: Recording will begin. To stop recording, press Power Sound TUNER /Band Demo REC/Pause Surround Mode On/Standby CD Synchro Sleep TAPE Open/Close CD Repeat Mono/ST Tuning Mode Phones Downloaded From Disc-Player.com Samsung Manuals... -
Page 20: Timer Function
EQ/S.Bass Sleep If the timer switch on and off times are identical, the word ERROR TAPE is displayed. You can also use Multi Jog to instead button in step 4, 5, 6, 7 Downloaded From Disc-Player.com Samsung Manuals... -
Page 21: Mute Function
To cancel this function, perss Power Surround button again. Volume Volume Power Sound TUNER /Band Surround Mode Power Sound TUNER /Band Surround Mode Sleep Sleep TAPE Open/Close Mono/ST S.Bass TAPE Level Open/Close Tuning Mode Mono/ST S.Bass Level Tuning Mode Downloaded From Disc-Player.com Samsung Manuals... -
Page 22: Setting The System To Switch Off Automatically
Change the remaining time by repeating Steps 1 and 2 To cancel SLEEP function, press Sleep one or more times until OFF is display. MIC Mixing Timer Timer/ On/Off Clock EQ/S.Bass Sleep TAPE REV. CD SYNC. Display Mode Repeat Downloaded From Disc-Player.com Samsung Manuals... -
Page 23: Safety Precautions
Do not remove any equipment panels. main lead. Main cable damage can The inside of the unit lead to damage of the equipment (fire contains live components, which hazard) and can cause electric cause electric shock. shock. Downloaded From Disc-Player.com Samsung Manuals... -
Page 24: Precautions When Using Compact Discs
If the above guidelines do not allow you to solve the problem, take a note of: The model and serial numbers, normally printed on the rear of the system Your warranty details A clear description of the problem Then contact your local dealer or SAMSUNG after-sales service. Downloaded From Disc-Player.com Samsung Manuals... -
Page 25: Technical Specifications
Technical Specifications SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice. RADIO Usable sensitivity 60 dB AM (MW) Signal/noise ratio 40 dB Usable sensitivity 54 dB... - Page 26 THIS APPLIANCE IS MANUFACTURED BY: ELECTRONICS AH68-01020B Downloaded From Disc-Player.com Samsung Manuals...
