Panasonic BB-HCM381 Getting Started

Getting Started

Network Camera

BB-HCM381
Model No.
BB-HCE481
Trademarks
• Adobe, Acrobat and Reader are either registered trademarks or trademarks of
Adobe Systems Incorporated in the United States and/or other countries.
• Microsoft, Windows and ActiveX are either registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other countries.
• This software is based in part on the work of the Independent JPEG Group.
• Screen shots reprinted with permission from Microsoft Corporation.
• All other trademarks identified herein are the property of their respective owners.
Abbreviations
• UPnP is the abbreviation for "Universal Plug and Play".
• "Network Camera" is called "Camera" in this manual.
• "Setup CD-ROM" is called "CD-ROM" in this manual.

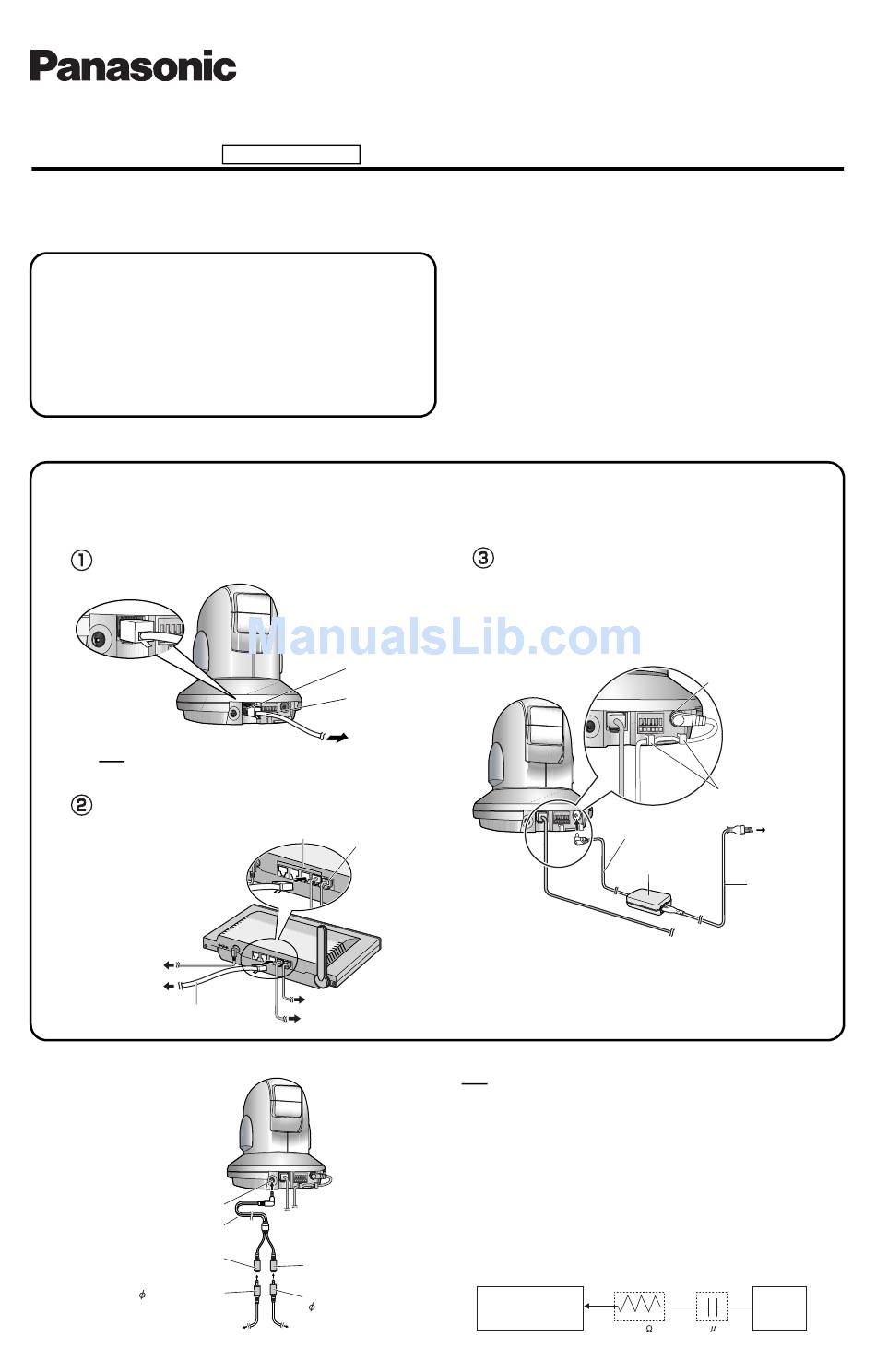

1.
Connect the camera (BB-HCM381), and turn the camera on.
Connect the camera to your router using a "straight" Cat5 Ethernet cable (customer-provided) to set up the camera.
• Before you begin the installation, the UPnP
http://panasonic.co.jp/pcc/products/en/netwkcam/ or contact your router's manufacturer.
Connect the Ethernet cable (customer-provided) to the camera.
Note
• These instructions assume that your PC is already connected to the Internet and
your network includes a router that is UPnP
Connect the Ethernet cable (customer-provided) to your
router.
To the supply
To the camera
A "straight" Cat5 Ethernet
cable (customer-provided)
Connecting an External Microphone or Speaker
Audio Terminal
Audio Cable
For microphone (white)
(Plug-in power +3.3 V)
Microphone cable
( 3.5 mm mini plug)
To microphone
© 2006 Panasonic Communications Co., Ltd. All Rights Reserved.
PQQX15194ZA KK0306JT0 (CE)
Indoor Use Only
(AC Adaptor Type)
(PoE Type)
™
feature in your router needs to be enabled. Usually, the default setting disables this feature. For more info, please visit,
Ethernet (LAN) port
Ethernet cable
(customer-provided)
To the network
™
(Universal Plug and Play) compliant.
LAN ports
WAN port
To your modem
To your PC
For speaker (red)
(Output impedance
Ω
560 line level)
Speaker cable
( 3.5 mm stereo mini plug)
To speaker
Please read the Important Information before using.
• This Getting Started explains how to connect and set up the camera.
See the Installation Guide for mounting, and see the Operating
Instructions on the CD-ROM for details about the camera's features.
• The CD-ROM provides Getting Started in the following languages:
English, French, German, Italian, Spanish, Russian, Simplified Chinese
and Korean.
• If you cannot complete the setup, see Troubleshooting on the
CD-ROM.
This manual is for both BB-HCM381 (AC Adaptor Type) and BB-HCE481
(PoE Type). Available features and operations are different in part
depending on the model. Read the Operating Instructions on the CD-
ROM carefully and use the camera properly.
BB-HCM381 User: See below.
BB-HCE481 User: Go to page 2.
Connect the AC adaptor cord to the DC IN jack, and plug the
AC cord into the power outlet.
• When you operate the camera, the power outlet should be near the camera and
easily accessible.
• Use only the specified Panasonic AC adaptor PSLP1242 (Order No.
PSLP1242Z).
• If the camera's indicator does not light green, see pages 3-4 of Troubleshooting
on the CD-ROM.
• A noise can be heard during pan/tilt operation. This is normal.
Note
• If you use an external microphone, excessive cable length or a poor quality cable can
cause a degradation in audio quality.
• The cables for the external microphone and external speaker must be shielded, and
less than 2.4 m long including the included Audio Cable. Using nonstandard cables
may cause sound interference due to strong radio waves.
• Use a speaker with a built-in amplifier. The speaker connects to the camera with a
stereo audio cable similar to that used by your PC. The output signal is mono.
• Make sure the camera and speaker are turned off when connecting or disconnecting
the Audio Cable or speaker cable, otherwise noise may be heard from the speaker.
• Use only the included Audio Cable when connecting an external microphone or
speaker.
• The external microphone input (via the Audio Cable) does not correspond to a line
level. Audio may be distorted when the line level is input. Audio distortion will be
solved if you insert the following circuits. Under no circumstance should high-level
audio, such as from a speaker, be connected to this input terminal. Doing so is likely
to damage the camera.
Camera
Microphone Input
(via Audio Cable)
DC IN jack
Hook for AC adaptor cord
AC adaptor cord
To the power outlet
AC adaptor
AC cord
Resistor Capacitor
Audio Line
Out
33 K 1 F
