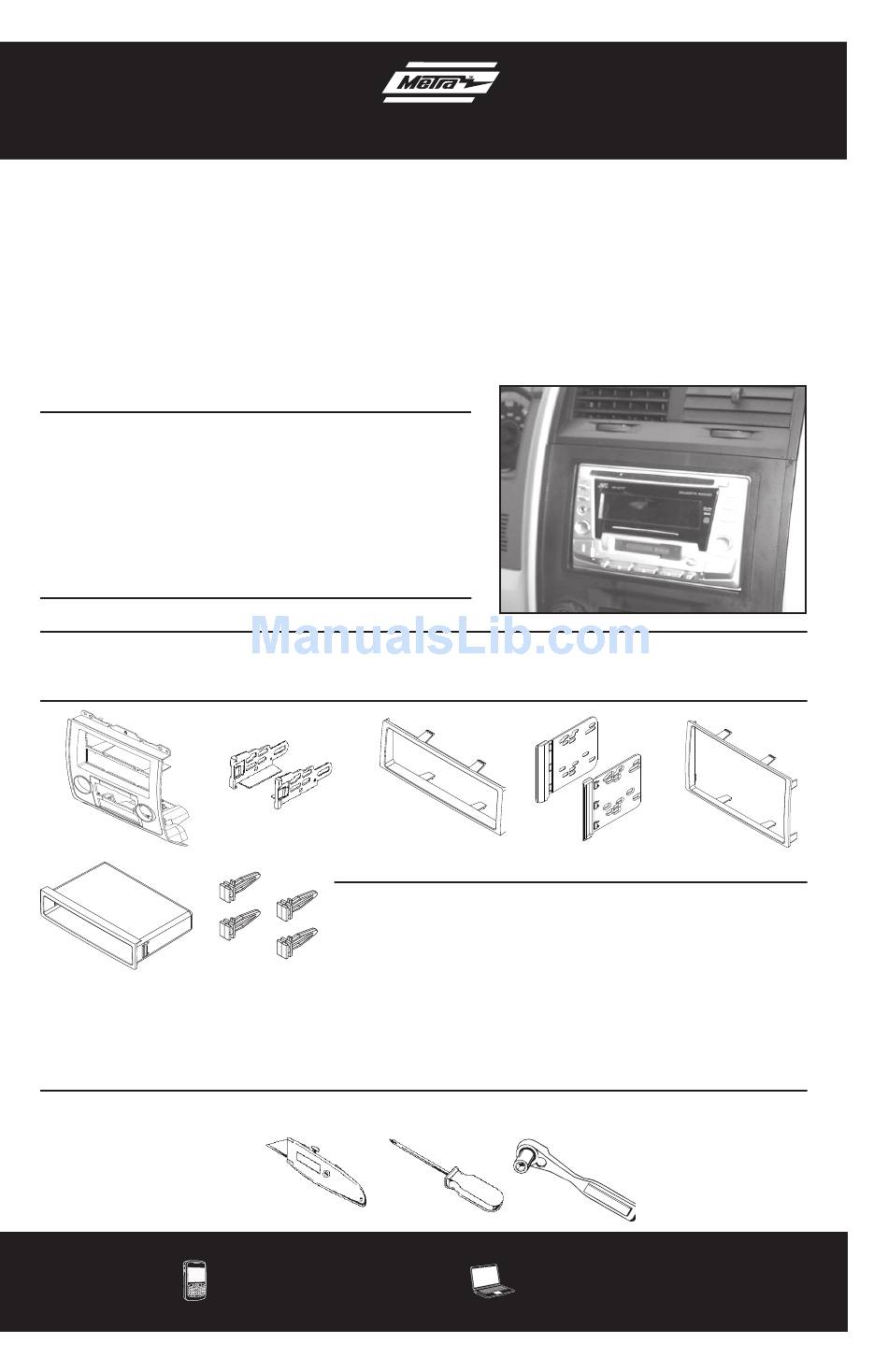

INSTALLATION INSTRUCTIONS FOR PART 99-5814
KIT FEATURES
• DIN Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
Painted to match factory dash:
99-5814=Black, 99-5814S=Silver
KIT COMPONENTS
• A) Radio Housing • B) ISO Brackets • C) Trim Plate • D) Double DIN Brackets
• E) Double DIN Trim Plate • F) Pocket • G) (2) Spare Radio Housing Panel Clips
A
B
F
G
APPLICATIONS
See application list inside
Ford/Mazda multi-kit
2008-Up
99-5814/99-5814S
C
WIRING & ANTENNA CONNECTIONS (Sold Separately)
TOOLS REQUIRED
Cutting Tool • Phillips Screwdriver • Socket Wrench
METRA. THE WORLD'S BEST KITS.™
1-800-221-0932
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
D
Wiring Harness:
• XSVI-5520-NAV Ford Interface 2006-up
• 70-5522-Ford Sub harness 2003-up
Antenna Adapter:
• 40-CR10 Chrysler/GM antenna adapter 2002-up
• AFSI-02 if equipped w/ sync
metraonline.com
E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 99-5814 and is the answer not in the manual?

Questions and answers

Related Manuals for Metra Electronics 99-5814

Summary of Contents for Metra Electronics 99-5814

  • Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-5814 APPLICATIONS See application list inside Ford/Mazda multi-kit 2008-Up 99-5814/99-5814S KIT FEATURES • DIN Radio Provision with Pocket • ISO Mount Radio Provision with Pocket • Double DIN Radio Provision • Stacked ISO Mount Units Provision...
  • Page 2 99-5814 Applications Ford Escape 2008-Up Mercury Mariner 2008-Up Mazda Tribute 2008-Up Table of Contents Dash Disassembly - All Vehicles........................1,2 Kit Assembly - Kit Preparation........................2 - DIN Radio with Pocket Provison..................2 - ISO Mount Radio with Pocket Provison................2 - Double DIN Radio Provison....................2 - Stacked ISO Mount Units Provison..................2...
  • Page 3 99-5814 Dash Disassembly All Vehicles 1. Unclip and remove the a/c vent panel above the radio. (Figure A) 2. Remove the (2) 7 MM screws exposed at the top of the factory radio panel. (Figure B) 3. Unclip the accessory socket/switch/aux input panel below the radio.
  • Page 4 99-5814 Dash Disassembly All Vehicles 4. Remove the (2) 7 MM screws exposed at the bottom of the factory radio panel. (Figure D) 5. Slide radio out and remove (1) 8mm bolt from the right side securing the ground strap to the radio brackets. Unplug and remove the radio.

  • Page 5: Kit Preparation

    99-5814 Kit Preparation 1. Attach the climate control to the radio housing using the factory hardware removed in step 7 of dash disassembly. (Figure A) Note: There are (2) extra radio housing panel clips included with the kit in case removal of the kit is necessary at any time.

  • Page 6: Din Mount Radio Provision

    99-5814 DIN Mount Radio Provision With Pocket 1. Slide the DIN cage into the radio housing and secure by bending the metal locking tabs outward. (Figure A) 2. Slide the aftermarket radio into the DIN cage and until it snaps into place.

  • Page 7: Iso Mount Radio Provision

    99-5814 ISO Mount Radio Provision With Pocket 1. Mount the ISO Brackets to the radio using the screws supplied with the radio. (Figure A) 2. Slide the radio into the radio housing until it snaps into place. (Figure B) 3. Snap the trim plate onto the front of the Radio Housing.

  • Page 8: Double Din Radio Provision

    99-5814 Double DIN Radio Provision 1. Cut and remove the center bar from the radio housing. (Figure A) 2. Snap the Double DIN brackets to the inside edge of the radio housing. (Figure B) 3. Slide the Double DIN radio into the DDIN...

  • Page 9: Stacked Iso Mount Units Provision

    99-5814 Stacked ISO Mount Units Provision 1. Cut and remove the center bar from the radio housing. (Figure A) 2. Snap the Double DIN brackets to the inside edge of the radio housing. (Figure B) 3. Slide the stacked ISO mount units into...
  • Page 10 INSTALLATION INSTRUCTIONS FOR PART 95-5817 METRA. THE WORLD’S BEST KITS.™ metraonline.com 1-800-221-0932 © COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION...
