FS100
1

Equipment Configuration

1.1
Converter unit
CSTR-COB02AA
Power relay circuit board
JEPMC-PSD3007R-E
Control circuit board
JEPMC-CP3201R-E
(abbreviated as CPU-201R)
1 Equipment Configuration
1.1

Arrangement of Units and Circuit Boards

Arrangement of Units and Circuit Boards

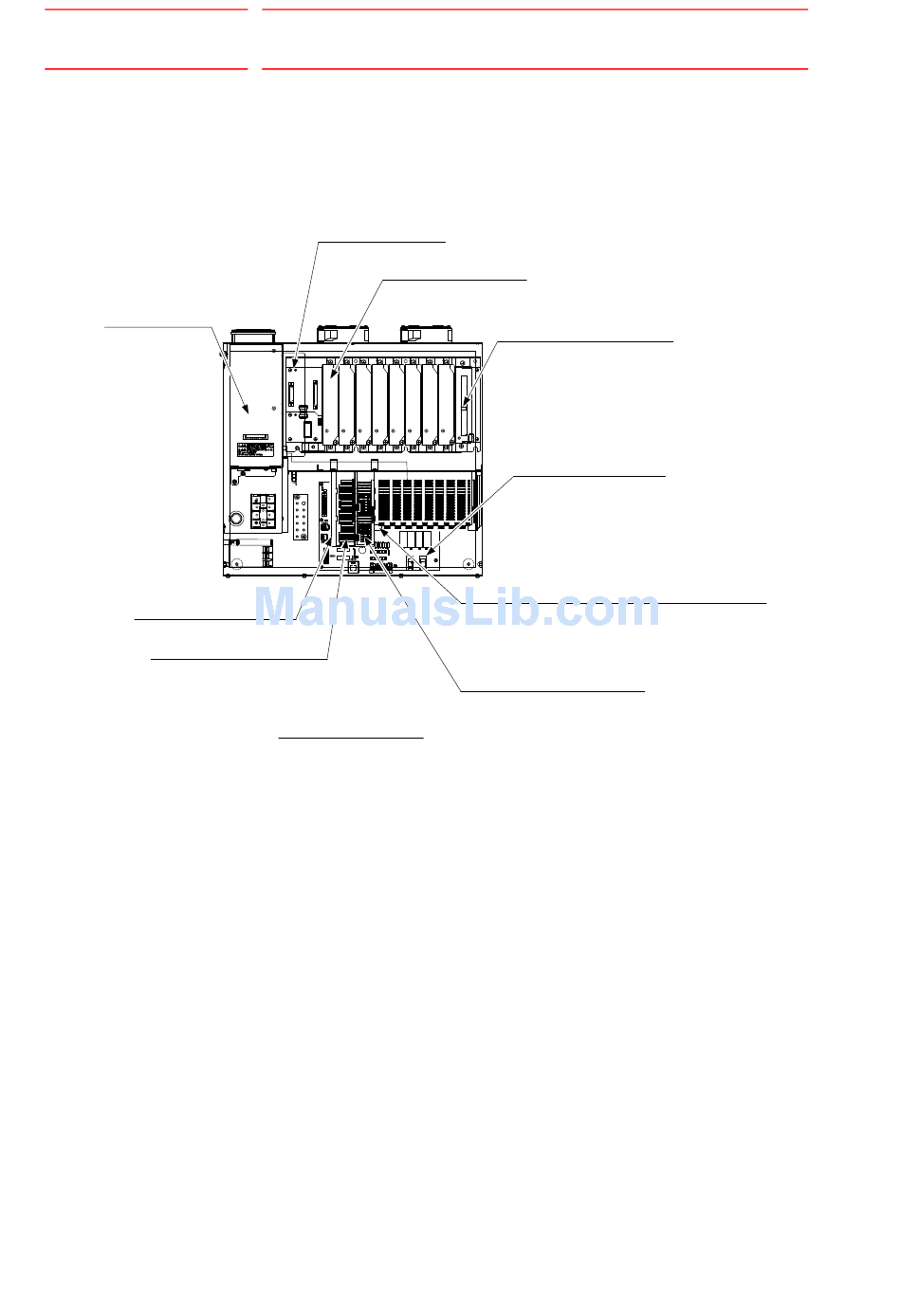

Fig. 1-1: Arrangement of Units and Circuit Boards
Mounting base unit
CSTR-MBB08AAA
PWM amplifier module
CSTR-SDB
Top view
(without top cover)
1-1
AAA
***
Major axes control circuit board
CSTR-IFBM3LA
I/O relay circuit board
CSTR-FBBCA8R03CAA
User I/O circuit board
for Japan and North America: JAPMC-IO2308R-E
for Europe: JAPMC-IO2309R-E
(abbreviated as LIO-09R)
Machine safety circuit board
JAPMC-SF2300R-E
(abbreviated as SF2300R)
(abbreviated as LIO-08R)
