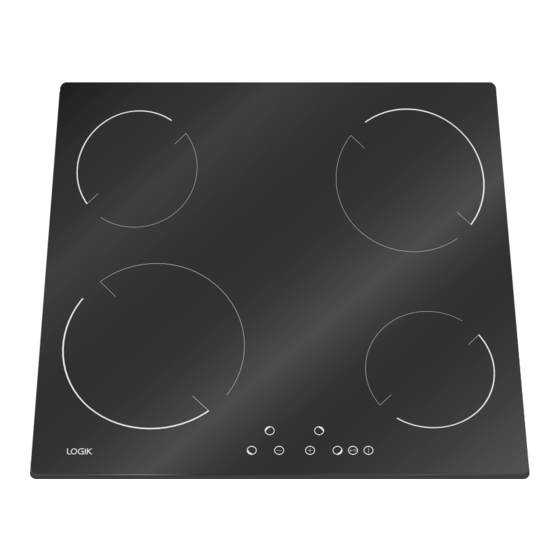

- Page 1 SERVICE MANUAL Ceramic hob - LCHOBTC14...
- Page 2 Visualisation of the appliance: Opening the hob: Opened appliance:...
- Page 3 Replacing the PCB: Use a screwdriver to lift the plate (take special care of the three white pins mounted the PCB). Unplug the plugs by small screwdriver...
- Page 4 Replacing the ceramic module: Remove the screws on the underside of the device (one screw each module) Disconnect ceramic module Removing cado box First disconnect all wires...
- Page 5 Replacing the cooking zones When installing a new cooking zone, install the spring in the same position as in the old cooking zone. If the spring is installed in a wrong manner, the actual cook- ing zone will be shifted in relation to the marking on the hob. Follow the numbers visible on the old and new cooking zones.
