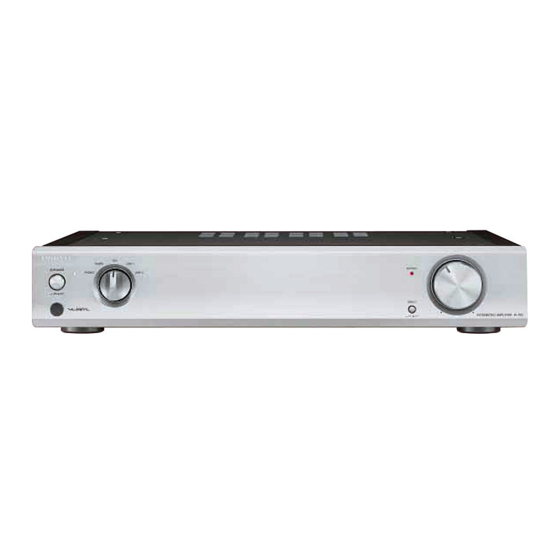

Integrated Stereo Amplifier
A-1VL
Instruction Manual
Thank you for purchasing an Onkyo A-1VL Integrated
Stereo Amplifier. Please read this manual thoroughly
before making connections and plugging in the unit.
Following the instructions in this manual will enable
you to obtain optimum performance and listening
enjoyment from your A-1VL.
Please retain this manual for future reference.
Contents
Introduction .................................... 2
Connections ................................... 9
Enjoying Audio Sources.............. 12
Troubleshooting........................... 14
Specifications .............................. 15
E
n
Advertisement
Table of Contents
Related Manuals for Onkyo A-1VL
Summary of Contents for Onkyo A-1VL
- Page 1 Integrated Stereo Amplifier A-1VL Instruction Manual Thank you for purchasing an Onkyo A-1VL Integrated Stereo Amplifier. Please read this manual thoroughly before making connections and plugging in the unit. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your A-1VL.
-
Page 2: I Mportant Safety Instructions
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING QUALIFIED PERSONNEL. -
Page 3: Precautions
2. AC Fuse The AC fuse inside the A-1VL is not user serviceable. If you cannot turn on the A-1VL, contact your Onkyo dealer. 3. Care Occasionally you should dust the A-1VL all over with a soft cloth. -
Page 4: Features
Remote controller (RC-573A) [1] & two batteries (AA/R6) [2] In catalogs and on packaging, the letter added to the end of the product name indicates the color of the A-1VL. Speci- fications and operation are the same regardless of color. -
Page 5: Table Of Contents
Connecting a Turntable ...10 Connecting a Power Amplifier ...11 Connecting a Preamp...11 Connecting the Power Cord ...11 Enjoying Audio Sources Turning on the A-1VL ...12 Playing a Connected Component ...12 Muting the A-1VL ...12 Using the DIRECT Function...13 Recording...13 Others Troubleshooting ...14... -
Page 6: Front & Rear Panels
Front & Rear Panels Front Panel POWER button This button is used to set the A-1VL to On or Off. POWER indicator This indicator lights up when the A-1VL is ON. While this indicator is illuminated, you can operate the A-1VL with the remote controller. -
Page 7: Remote Controller
Remote Controller Remote Controller (RC-573A) AMP section Use the following buttons to operate the A-1VL while it is turned on. VOLUME [ / ] buttons These buttons are used to set the volume of the A-1VL. MUTING button This button is used to mute the A-1VL. This func- tion can be set only with the remote controller. -
Page 8: Inserting The Batteries
Remote Controller—Continued Inserting the Batteries Detach the battery cover. Insert the two R6 (size AA) batteries. Be sure to match the + and – ends of the batter- ies to the diagram inside the battery compart- ment. Attach the battery cover. -
Page 9: Connecting The A-1Vl
Connect the “+” connector on each speaker to the “+” connectors on the A-1VL, and connect the “–” connec- tor on each speaker to the “–” connectors on the A-1VL. Be sure to connect the positive and negative cables for the speakers properly. -
Page 10: Audio Components
A-1VL’s LINE 1 L/R inputs to the analog audio outputs on your component such as a TV, as shown. Note: If your TV has no audio outputs, connect the A-1VL to your VCR and use its tuner. Connecting a Cassette or MD Recorder Use an analog audio cable (RCA/phono) to connect the A-1VL’s LINE 2 IN L/R inputs to the MD recorder or... -
Page 11: Connecting A Power Amplifier
PRE OUT. LINE IN Note: Before you use the A-1VL as a power amplifier, be sure to turn on the DIRECT function by pressing the DIRECT button. (page 13) Connecting the Power Cord Notes: •... -
Page 12: Enjoying Audio Sources
POWER indicator Tips on sound quality You will get better sound quality 10 to 30 minutes after you turn on the A-1VL. To avoid degrading the sound quality, do not tie audio RCA/phono cables and speaker cables together in a bundle. -
Page 13: Using The Direct Function
OFF: The audio signal from the component connected to the A-1VL will be output. Notes: • While the DIRECT function is turned on, the A-1VL works as a power amplifier and the VOLUME control of the A-1VL will not change the volume level. Instead, when you turn off the DIRECT function, the A-1VL outputs the audio signal at the level that its volume control is positioned. -
Page 14: Troubleshooting
There’s no sound, or it’s very soft. • When you use the A-1VL as a power amplifier (when the DIRECT function is turned on), the sound from the component connected to the preamplifier will be output. If you want to output the sound from a component connected to the A-1VL, or when you use the A-1VL as a preamplifier, use the DIRECT button to turn off the DIRECT function. -
Page 15: Specifications
Specifications Power Output Dynamic Power THD (Total Harmonic Distortion) Damping Factor Input Sensitivity and Impedance Output Level and Impedance Phono Overload Frequency Response SN Ratio Speaker Impedance Power Supply Power Comsumption Dimensions (W × H × D) Weight Analog Inputs Analog Outputs Pre Outputs Speaker Outputs... - Page 16 UNITED KINGDOM Tel: +44-(0)1494-681515 Fax: +44(0)-1494-680452 ONKYO CHINA LIMITED Units 2102-2107, Metroplaza Tower I, 223 Hing Fong Road, Kwai Chung, N.T., HONG KONG Tel: 852-2429-3118 Fax: 852-2428-9039 SN 29343551A (C) Copyright 2004 ONKYO CORPORATION Japan. All rights reserved. HOMEPAGE http://www.onkyo.com/ Printed in Japan D0408-2...
