Page 1: User Guide

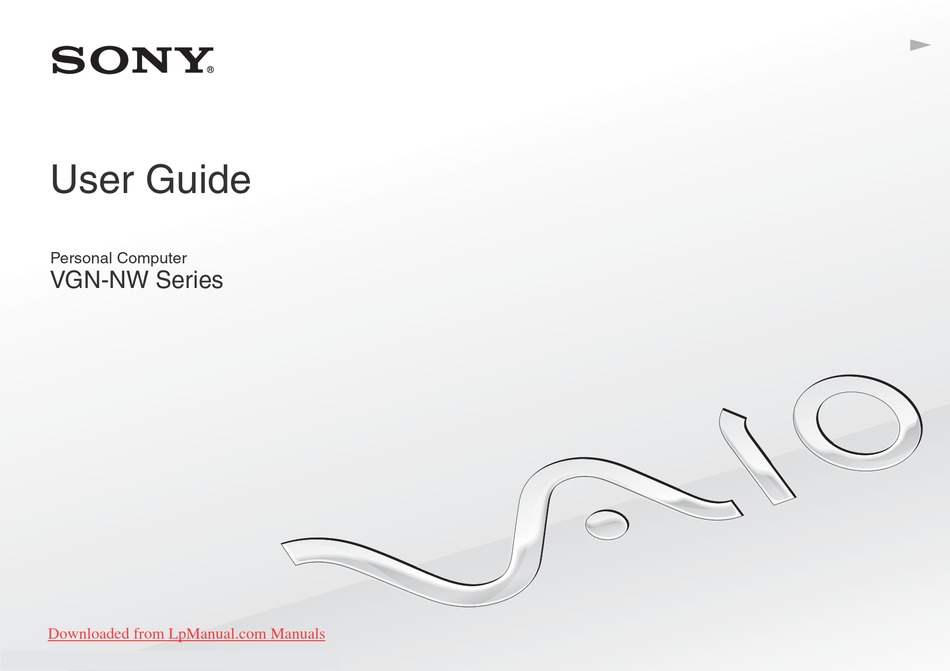

User Guide Personal Computer VGN-NW Series Downloaded from LpManual.com Manuals...
Page 2: Table Of Contents
Contents Before Use................4 Using the Wireless LAN..........61 Finding More about Your VAIO Computer ....5 Using Peripheral Devices ..........64 Ergonomic Considerations ..........9 Connecting External Speakers or Headphones ..65 Getting Started..............11 Connecting an External Display ........66 Locating Controls and Ports........12 Selecting Display Modes ..........71 About the Indicator Lights ...........
Page 3 Handling the Built-in Camera ........106 Handling Discs ............107 Using the Battery Pack..........108 Handling "Memory Stick"........... 109 Handling the Built-in Storage Device ......110 Troubleshooting .............. 111 Computer ..............113 System Update / Security.......... 120 Battery............... 122 Built-in Camera ............124 Networking (LAN/Wireless LAN) .......
Page 4: Before Use
How to find specifications Some features, options, and supplied items may not be available on your computer. To find out about the configuration of your computer, visit the Sony online support web site at the following URLs: ❑ For customers in USA http://esupport.sony.com/EN/VAIO/...
Page 5: Finding More About Your Vaio Computer
- Software Information Troubleshoot my VAIO Maintain and troubleshoot your VAIO computer with VAIO Care, system restore, backup and recovery, and contact Sony support. Downloaded from LpManual.com Manuals...
Page 6 Before Use > Finding More about Your VAIO Computer ❑ Program help files — May be included with the preinstalled software programs on your computer. You may be able to access the help files from the help menu on a specific program. ❑...
Page 7 3. Support Web Sites ❑ Sony online support web site The Sony online support web site provides instant access to information on commonly encountered problems. Type a description of the problem and the Knowledge Database searches for the corresponding solutions online.
Page 8 4. Customer Information Center If you do not find the information you are looking for at our site, you may call Sony directly. You can find the contact numbers on the Sony online support web site. In order to receive the fastest and most efficient services, have the following information...
Page 9: Ergonomic Considerations
Before Use > Ergonomic Considerations Ergonomic Considerations You will be using your computer as a portable device in a variety of environments. Whenever possible, you should attempt to take account of the following ergonomic considerations for both stationary and portable environments: ❑...
Page 10 Before Use > Ergonomic Considerations ❑ Viewing angle of the computer display – Use the display tilting feature to find the best position. You can reduce eye strain and muscle fatigue by adjusting the tilt of the display to the proper position. Adjust the brightness level of the display as well.
Page 11: Getting Started
Getting Started > Getting Started This section describes how to get started using your VAIO computer. Before starting your computer for the first time, do not connect any other hardware that did not originally come with your computer. Upon completion, connect one device (for example, a printer, an external hard disk drive, a scanner, and so on) at a time, following the manufacturer's instructions.
Page 12: Locating Controls And Ports
Getting Started > Locating Controls and Ports Locating Controls and Ports Take a moment to identify the controls and ports shown on the following pages. The appearance of your computer may be different from those illustrated in this manual due to variations in specifications. It may also vary in some countries or areas.
Page 13 Getting Started > Locating Controls and Ports Front Built-in microphone (monaural) Built-in MOTION EYE camera indicator (page 18) Built-in MOTION EYE camera (page 39) WIRELESS switch (page 61) WIRELESS indicator (page 18) Media Access indicator (page 18) "Memory Stick" slot (page 47) SD memory card slot (page 55)
Page 14 Getting Started > Locating Controls and Ports WEB button (page 36), (page 37) Muting (S1) button (page 36) DISPLAY OFF button (page 36) Num lock indicator (page 18) Caps lock indicator (page 18) Scroll lock indicator (page 18) Power button LCD screen (page 104) Built-in speakers (stereo)
Page 15 Getting Started > Locating Controls and Ports Right Headphones jack (page 65) Microphone jack (page 74) Hi-Speed USB (USB 2.0) ports (page 75) Optical disc drive (page 40) Drive eject button (page 40) Manual eject hole (page 129) Security slot Support high-/full-/low- speeds.
Page 16 Getting Started > Locating Controls and Ports Left DC IN port (page 19) Network (LAN) port (page 60) Air vent Monitor port (page 66) HDMI output port (page 69) i.LINK 4-pin (S400) port (page 77) Hi-Speed USB (USB 2.0) port (page 75) ExpressCard/34 slot (page 53)
Page 17 Getting Started > Locating Controls and Ports Back/Bottom Air vents Battery connector (page 21) Memory module compartment cover (page 91) Downloaded from LpManual.com Manuals...
Page 18: About The Indicator Lights
Getting Started > About the Indicator Lights About the Indicator Lights Your computer is equipped with the following indicator lights: Indicator Functions Power 1 Illuminates in green while the computer is on, blinks slowly in orange while the computer is in Sleep mode, and turns off when the computer is turned off or enters Hibernate mode.
Page 19: Connecting A Power Source
Getting Started > Connecting a Power Source Connecting a Power Source You can use either an AC adapter or a rechargeable battery pack for supplying power to your computer. Using the AC Adapter While your computer is directly connected to an AC power source and has a battery pack installed, it uses power from the AC outlet.
Page 20 Getting Started > Connecting a Power Source ✍ To disconnect your computer completely from an AC power source, unplug the AC adapter from the AC outlet. Make sure that the AC outlet is easily accessible. If you do not intend to use your computer for an extended period of time, place the computer into Hibernate mode. See Using Hibernate Mode (page 30).
Page 21: Using The Battery Pack
Getting Started > Using the Battery Pack Using the Battery Pack The battery pack supplied with your computer is not fully charged at the time of delivery. Installing/Removing the Battery Pack To install the battery pack Turn off the computer and close the LCD screen lid. Slide the battery LOCK switch (1) inward.
Page 22 Getting Started > Using the Battery Pack Slide the battery pack diagonally into the battery compartment until the projection (2) on either side of the battery compartment fits into the U-shaped cut (3) on either side of the battery pack. Push the battery pack down into the compartment until it clicks into place.
Page 23: To Remove The Battery Pack
Slide and hold the battery RELEASE latch (2) inward, put your fingertip underneath the tab (3) on the battery pack, and lift the battery pack in the direction of the arrow, and then slide it away from the computer. This computer is designed to operate only with genuine Sony battery packs. Downloaded from LpManual.com Manuals...
Page 24: Charging The Battery Pack
Getting Started > Using the Battery Pack Charging the Battery Pack The battery pack supplied with your computer is not fully charged at the time of delivery. To charge the battery pack Install the battery pack. Connect the computer to a power source with the AC adapter. The charge indicator light is on while the battery pack is charging.
Page 25 Getting Started > Using the Battery Pack ✍ Keep the battery pack in your computer while it is directly connected to an AC power source. The battery pack continues to charge while you are using the computer. When the battery pack is running out of power and both the charge and power indicator lights blink, you should either connect the AC adapter to recharge the battery pack or shut down your computer and install a fully charged battery pack.
Page 26 Getting Started > Using the Battery Pack Extending Your Battery Life When your computer is running on battery power, you can extend your battery life using the following methods. ❑ Decrease the LCD brightness of your computer screen. ❑ Use the power saving mode. See Using the Power Saving Modes (page 28) for more information.
Page 27: Shutting Down Your Computer Safely
Getting Started > Shutting Down Your Computer Safely Shutting Down Your Computer Safely To avoid losing unsaved data, be sure to shut down your computer properly, as described below. To shut down your computer Turn off any peripherals connected to the computer. Click Start and the Shut down button.
Page 28: Using The Power Saving Modes
Getting Started > Using the Power Saving Modes Using the Power Saving Modes You can take advantage of the power management settings to conserve battery life. In addition to the normal operating mode, your computer has two distinct power saving modes to suit your preference: Sleep and Hibernate. If you do not intend to use your computer for an extended period of time while it is disconnected from an AC power source, place the computer into Hibernate mode or turn it off.
Page 29: Using Sleep Mode
Getting Started > Using the Power Saving Modes Using Sleep Mode To activate Sleep mode Click Start, the arrow next to the Shut down button, and Sleep. To return to Normal mode ❑ Press any key. ❑ Press the power button on your computer. If you press and hold the power button for more than four seconds, your computer will turn off automatically.
Page 30: Using Hibernate Mode
Getting Started > Using the Power Saving Modes Using Hibernate Mode To activate Hibernate mode Press the Fn+F12 keys. Alternatively, you can click Start, the arrow next to the Shut down button, and Hibernate. Do not move your computer before its power indicator light turns off. To return to Normal mode Press the power button.
Page 31: Updating Your Computer
Getting Started > Updating Your Computer Updating Your Computer Be sure to update your VAIO computer with the following software applications so that the computer can run more efficiently and securely. The VAIO Update automatically notifies you of new updates for enhancing your computer's performance available on the Internet, and downloads and installs them on the computer.
Page 32: Using Your Vaio Computer
Using Your VAIO Computer > Using Your VAIO Computer This section describes how to get the most out of using your VAIO computer. ❑ Using the Keyboard (page 33) ❑ Using the Touch Pad (page 35) ❑ Using Special-function Buttons (page 36) ❑...
Page 33: Using The Keyboard
Using Your VAIO Computer > Using the Keyboard Using the Keyboard Your keyboard has additional keys that perform model-specific tasks. Combinations and Functions with the Fn Key ✍ Some keyboard functions can be used only after the operating system is finished launching. Combination/Feature Function Fn + % (F2): muting...
Page 34 Using Your VAIO Computer > Using the Keyboard Combination/Feature Function Changes the size of an image or a document displayed on some software. Fn + (F9/F10): zooming To make the view look smaller and further away (zoom out), press the Fn+F9 keys. To make the view look bigger and closer (zoom in), press the Fn+F10 keys.
Page 35: Using The Touch Pad
Using Your VAIO Computer > Using the Touch Pad Using the Touch Pad You can point to, select, drag, and scroll objects on the screen using the touch pad. Action Description Point Slide your finger on the touch pad (1) to place the pointer (2) on an item or object. Click Press the left button (3) once.
Page 36: Using Special-Function Buttons
Using Your VAIO Computer > Using Special-function Buttons Using Special-function Buttons Your computer is equipped with special buttons to help you use specific functions of the computer. Special-function button Functions While the computer is in Normal mode, the WEB button launches the web browser assigned to the button by default.
Page 37: Using The Quick Web Access Function
Using Your VAIO Computer > Using the Quick Web Access Function Using the Quick Web Access Function The Quick Web Access function enables you immediately to access the Internet without launching the Windows operating system. Activating the Quick Web Access Function To activate the Quick Web Access function, your computer must be off.
Page 38 Using Your VAIO Computer > Using the Quick Web Access Function Notes on using the Quick Web Access function While the Quick Web Access function is activated, you cannot use: ❑ any function key, except the F2, F3, and F4 keys, in combination with the Fn key for shortcuts. ❑...
Page 39: Using The Built-In Camera
Using Your VAIO Computer > Using the Built-in Camera Using the Built-in Camera Your computer is equipped with a built-in MOTION EYE camera. With the preinstalled image capture software, you can perform the following: ❑ Capture still images and movies ❑...
Page 40: Using The Optical Disc Drive
Using Your VAIO Computer > Using the Optical Disc Drive Using the Optical Disc Drive Your computer is equipped with an optical disc drive. Some features and options in this section may not be available on your computer. See the specifications to find out about the configuration of your computer. To insert a disc Turn on the computer.
Page 41 Using Your VAIO Computer > Using the Optical Disc Drive Place a disc in the middle of the drive tray with the label side facing upward and gently push it down until the disc clicks into place. Do not exert pressure on the drive tray. Be sure to hold the bottom of the drive tray when placing/removing a disc onto/from the tray. Close the drive tray by pushing it in gently.
Page 42 Using Your VAIO Computer > Using the Optical Disc Drive Supported Disc Media ™ Your computer plays and records CDs, DVDs, and Blu-ray Disc media, depending on the model you purchased. See the reference chart below to find out which type of optical disc drive supports which types of media. PR: playable and recordable P: playable but not recordable –: not playable or recordable...
Page 43 When you buy pre-recorded or blank discs for use with your VAIO computer, be sure to read the notices on the disc package carefully to check both playback and recording compatibility with your computer's optical disc drives. Sony does NOT guarantee the compatibility of VAIO optical disc drives with discs that are not compliant with the official "CD,"...
Page 44 Using Your VAIO Computer > Using the Optical Disc Drive Notes on Using the Optical Disc Drive Notes on writing data to a disc ❑ Only use circular discs. Do not use discs in any other shape (star, heart, card, etc.), as this may damage the optical disc drive.
Page 45 Using Your VAIO Computer > Using the Optical Disc Drive Notes on region codes Region code indicators are labeled on the discs or packages to indicate in which region and on what type of player you can play the disc. If the region code indicates "all," you can play this disc in most regions of the world. If the region code for your residence area is different from the label, you cannot play the disc on your computer.
Page 46: Playing Discs
Using Your VAIO Computer > Using the Optical Disc Drive Playing Discs To play a disc Insert a disc into the optical disc drive. Connect the AC adapter to the computer and close all running software applications before playing a disc. If nothing appears on the desktop, click Start, All Programs, and your desired software to play the disc.
Page 47: Using "Memory Stick
Using Your VAIO Computer > Using "Memory Stick" Using "Memory Stick" "Memory Stick" is a compact, portable, and versatile IC recording media especially designed for exchanging and sharing digital data with compatible products, such as digital cameras, mobile phones, and other devices. Because it is removable, it can be used for external data storage.
Page 48 Using Your VAIO Computer > Using "Memory Stick" Inserting and Removing "Memory Stick" To insert "Memory Stick" Locate the "Memory Stick" slot. Hold "Memory Stick" with the arrow facing upward and pointing toward the slot. Carefully slide "Memory Stick" into the slot until it clicks into place. ✍...
Page 49 Using Your VAIO Computer > Using "Memory Stick" Be sure to hold "Memory Stick" with the arrow pointing in the correct direction as you insert it into the slot. To avoid damaging your computer or the media, do not force "Memory Stick" into the slot if you cannot insert it smoothly. Before using "Memory Stick Micro"...
Page 50 Using Your VAIO Computer > Using "Memory Stick" Formatting "Memory Stick" To format "Memory Stick" "Memory Stick" is formatted by default and is ready for use. If you want to reformat the media with your computer, follow these steps. Be sure to use the device that is designed to format the media and supports "Memory Stick" when formatting the media. Formatting "Memory Stick"...
Page 51 Using Your VAIO Computer > Using "Memory Stick" Click Start. Follow the on-screen instructions. It may take time to format "Memory Stick" depending on the media type. Downloaded from LpManual.com Manuals...
Page 52 Notes on Using "Memory Stick" ❑ Your computer has been tested and found compatible with Sony branded "Memory Stick" with capacity of up to 32 GB that are available as of September 2009. However, not all "Memory Stick" are guaranteed of compatibility.
Page 53: Using Other Modules / Memory Cards
Using Your VAIO Computer > Using Other Modules / Memory Cards Using Other Modules / Memory Cards Using the ExpressCard Module Your computer is equipped with an ExpressCard/34 slot for transferring data among digital cameras, camcorders, music players, and other audio/video devices. This slot can only accommodate an ExpressCard/34 (34 mm wide) module Referred to as the ExpressCard slot and the ExpressCard module in this manual.
Page 54 Using Your VAIO Computer > Using Other Modules / Memory Cards ✍ If the module does not go into the slot easily, remove it gently and verify you are inserting it in the proper direction. Make sure you use the most recent driver software provided by the ExpressCard module manufacturer. To remove an ExpressCard module ✍...
Page 55: Using The Sd Memory Card
Using Your VAIO Computer > Using Other Modules / Memory Cards Using the SD Memory Card Your computer is equipped with an SD memory card slot. You can use this slot to transfer data among digital cameras, camcorders, music players, and other audio/video devices. Before you use the SD memory card The SD memory card slot on your computer supports the following memory cards: ❑...
Page 56 Using Your VAIO Computer > Using Other Modules / Memory Cards To insert an SD memory card Locate the SD memory card slot. Hold the SD memory card with the arrow facing upward and pointing toward the slot. Carefully slide the SD memory card into the slot until it clicks into place. Do not force the card into the slot.
Page 57 Using Your VAIO Computer > Using Other Modules / Memory Cards To remove an SD memory card Locate the SD memory card slot. Check that the Media Access indicator light is unlit. Push in the SD memory card toward the computer and release. The SD memory card ejects.
Page 58 Using Your VAIO Computer > Using Other Modules / Memory Cards Notes on Using Memory Cards General notes on using the memory card ❑ Be sure to use memory cards that are compliant with the standards supported by your computer. ❑...
Page 59: Using The Internet
Using Your VAIO Computer > Using the Internet Using the Internet Before using the Internet, you need to sign up with an Internet Service Provider (ISP) and set up devices required for connecting your computer to the Internet. The following types of Internet connection services may be available from your ISP: ❑...
Page 60: Using The Network (Lan)
Using Your VAIO Computer > Using the Network (LAN) Using the Network (LAN) You can connect your computer to 1000BASE-T/100BASE-TX/10BASE-T type networks with a LAN cable. Connect one end of a LAN cable (not supplied) to the network (LAN) port on the computer and the other end to your network. For detailed settings and devices required for LAN access, ask your network administrator.
Page 61: Using The Wireless Lan
Using Your VAIO Computer > Using the Wireless LAN Using the Wireless LAN Using the Wireless LAN (WLAN), all your digital devices with the built-in WLAN function communicate freely with each other through a network. A WLAN is a network in which a user can connect to a Local Area Network (LAN) through a wireless (radio) connection.
Page 62 Using Your VAIO Computer > Using the Wireless LAN ✍ In some countries, using WLAN products may be restricted by the local regulations (e.g. limited number of channels). Before activating the WLAN function, read the Safety Information carefully. WLAN uses the IEEE 802.11a /b/g/n standard, which specifies the type of technology used.
Page 63 Using Your VAIO Computer > Using the Wireless LAN The communication speed varies depending on the distance between communication devices, existence of obstacles between such devices, the device configuration, the radio conditions, and the software in use. In addition, communications may be cut off depending on the radio conditions. The communication range varies depending on the actual distance between communication devices, existence of obstacles between such devices, the radio conditions, the ambient environment that includes existence of walls and materials of such walls, and the software in use.
Page 64: Using Peripheral Devices
Using Peripheral Devices > Using Peripheral Devices You can add functionality to your VAIO computer by using the various ports on the computer. ❑ Connecting External Speakers or Headphones (page 65) ❑ Connecting an External Display (page 66) ❑ Selecting Display Modes (page 71) ❑...
Page 65: Connecting External Speakers Or Headphones
Using Peripheral Devices > Connecting External Speakers or Headphones Connecting External Speakers or Headphones You can connect external sound output devices (not supplied), such as speakers or headphones, to your computer. To connect external speakers ✍ Make sure your speakers are designed for computer use. Turn down the volume of the speakers before you turn them on.
Page 66: Connecting An External Display
Using Peripheral Devices > Connecting an External Display Connecting an External Display Some features and options in this section may not be available on your computer. Connecting a Computer Display or a Projector You can connect an external display, such as a computer display or a projector, to your computer. Downloaded from LpManual.com Manuals...
Page 67 Using Peripheral Devices > Connecting an External Display To connect a computer display or a projector Plug the power cord (1) of your external display or the projector into the AC outlet. Connect the external display or the projector to the monitor port (2) on the computer with a display cable (3). ✍...
Page 68 Using Peripheral Devices > Connecting an External Display ✍ If the external computer display is equipped with an HDMI input port and the computer is equipped with the HDMI output port, plug one end of an HDMI cable into the HDMI output port on the computer and the other end into the HDMI input port on the computer display. If your computer is equipped with the HDMI output port, use an HDMI to DVI-D adapter to connect a TFT/DVI monitor.
Page 69 Set up the TV configuration system. If a device driver other than the one provided by Sony is used, the image will not be displayed and the audio will not be heard. Always use the device driver provided by Sony for updates.
Page 70 Using Peripheral Devices > Connecting an External Display ✍ See the manual that came with your TV for more information on installation and use. The HDMI cable carries both video and audio signals. To connect a high-quality digital sound output device between your computer and a TV You can connect a high-quality home theater receiver or other surround sound decoder devices between your computer and TV using an HDMI connection.
Page 71: Selecting Display Modes
Using Peripheral Devices > Selecting Display Modes Selecting Display Modes When an external display is connected, you can select either your computer screen or the connected display to use as the primary monitor. ✍ You may not be able to display the same content on your computer screen and the external display or projector at the same time, depending on the type of your external display or projector.
Page 72: Using The Multiple Monitors Function
Using Peripheral Devices > Using the Multiple Monitors Function Using the Multiple Monitors Function The Multiple Monitors function allows you to distribute portions of your desktop across separate displays. For example, if you have an external display connected to the monitor port, your computer screen and the external display can function as a single desktop.
Page 73 Using Peripheral Devices > Using the Multiple Monitors Function To use the Multiple Monitors function ✍ Your external display may not support the Multiple Monitors function. Certain software applications may not be compatible with Multiple Monitors settings. Make sure that your computer does not enter Sleep or Hibernate mode while you are using the Multiple Monitors function, or the computer may not return to Normal mode.
Page 74: Connecting An External Microphone
Using Peripheral Devices > Connecting an External Microphone Connecting an External Microphone You can connect an external microphone (not supplied) to your computer. To connect an external microphone Plug the microphone cable (1) into the microphone jack (2) m. ✍ Make sure your microphone is designed for computer use.
Page 75: Connecting A Usb Device
Using Peripheral Devices > Connecting a USB Device Connecting a USB Device You can connect a Universal Serial Bus (USB) device to your computer, such as a mouse, floppy disk drive, speaker, and printer. To connect a USB device Choose the USB port (1) you prefer to use. Plug the USB device cable (2) into the USB port.
Page 76 Using Peripheral Devices > Connecting a USB Device Notes on connecting a USB device ❑ You may need to install the driver software supplied with your USB device before use. See the manual that came with the USB device for more information. ❑...
Page 77: Connecting An I.link Device
✍ i.LINK is a trademark of Sony Corporation used only to designate that a product contains an IEEE 1394 connection. The procedure to establish an i.LINK connection may vary, depending on a software application, an operating system, and a compatible i.LINK device. Not all products with an i.LINK connection can communicate with each other.
Page 78: Connecting A Digital Video Camcorder
Using Peripheral Devices > Connecting an i.LINK Device Connecting a Digital Video Camcorder To connect a digital video camcorder Plug one end of an i.LINK cable (1) (not supplied) into the i.LINK port (2) on the computer and the other end into the DV In/ Out port (3) on the digital video camcorder.
Page 79: Customizing Your Vaio Computer
Customizing Your VAIO Computer This section briefly describes how to change the main settings of your VAIO computer. Among other things, you will learn how to use and customize the look of your Sony software and utilities. ❑ Setting the Password (page 80) ❑...
Page 80: Setting The Password
Customizing Your VAIO Computer > Setting the Password Setting the Password Setting the password allows you to protect your computer from unauthorized access by making the user enter the password when the computer is turned on or returns to Normal mode from Sleep mode or Hibernate Mode. Do not to forget your password.
Page 81 Customizing Your VAIO Computer > Setting the Password Setting the Power-on Password To add the power-on password (machine password) Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If the screen does not appear, restart the computer and press the F2 key several times when the VAIO logo appears.
Page 82 Customizing Your VAIO Computer > Setting the Password To add the power-on password (user password) Make sure you set the machine password before setting the user password. Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears.
Page 83 Customizing Your VAIO Computer > Setting the Password To change or remove the power-on password (machine password) Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If the screen does not appear, restart the computer and press the F2 key several times when the VAIO logo appears.
Page 84 Customizing Your VAIO Computer > Setting the Password To change or remove the power-on password (user password) Turn on the computer. Press the F2 key when the VAIO logo appears. The BIOS setup screen appears. If the screen does not appear, restart the computer and press the F2 key several times when the VAIO logo appears.
Page 85 Customizing Your VAIO Computer > Setting the Password Setting the Windows Password To add the Windows password Click Start and Control Panel. Click User Accounts and Family Safety or User Accounts. Click User Accounts. Click Create a password for your account under Make changes to your account. In the New password and Confirm new password fields, enter the password for your account.
Page 86 Customizing Your VAIO Computer > Setting the Password To change the Windows password Click Start and Control Panel. Click User Accounts and Family Safety or User Accounts. Click User Accounts. Click Change your password. In the Current password field, enter your current password. In the New password and Confirm new password fields, enter a new password.
Page 87: Using Intel(R) Vt
Customizing Your VAIO Computer > Using Intel(R) VT Using Intel(R) VT Intel(R) Virtualization Technology (VT) allows you to use hardware virtualization software for enhancing your computer's performance. Intel VT may not be available depending on the CPU installed on your computer. For information on virtualization and how to use hardware virtualization software, contact the software publisher.
Page 88: Using The Vaio Control Center
Customizing Your VAIO Computer > Using the VAIO Control Center Using the VAIO Control Center The VAIO Control Center utility allows you to access system information and to specify preferences for system behavior. To use the VAIO Control Center Click Start, All Programs, and VAIO Control Center. Select your desired control item and change the settings.
Page 89: Using The Vaio Power Management
Customizing Your VAIO Computer > Using the VAIO Power Management Using the VAIO Power Management Power management helps you set up power plans for running on AC or battery power to suit your requirements for power consumption. The VAIO Power Management function is added to the Windows Power Options. With this software application, you can enhance the Windows power management functions to ensure better operation of your computer and longer battery life.
Page 90: Upgrading Your Vaio Computer
❑ You should not install it yourself, if you are not familiar with upgrading memory on a computer. ❑ You should not touch the connectors or open the memory module compartment cover. For assistance, contact an authorized Sony Service Center. To find the nearest center or agent, see Finding More about Your VAIO Computer (page The type of module and the amount of memory installed on your computer may differ depending on the model you purchased.
Page 91: Adding And Removing Memory
Upgrading Your VAIO Computer > Adding and Removing Memory Adding and Removing Memory If you want to expand the functionality of your computer, you can increase the amount of memory by installing optional memory modules. Before you upgrade your computer's memory, read the notes and procedures in the following pages. Notes on adding/removing memory modules ❑...
Page 92 Upgrading Your VAIO Computer > Adding and Removing Memory ❑ Do not open the memory module package before you are ready to change the module. The package protects the module from ESD. ❑ Use the special bag supplied with the memory module or wrap the module in aluminum foil to protect it from ESD. ❑...
Page 93: Removing And Installing A Memory Module
Upgrading Your VAIO Computer > Adding and Removing Memory Removing and Installing a Memory Module To change or add a memory module Shut down the computer and disconnect all peripheral devices. Unplug the computer and remove the battery pack. Wait about an hour until the computer cools down. Unscrew the screw (indicated by the arrow below) on the bottom of the computer and remove the memory module compartment cover.
Page 94 Upgrading Your VAIO Computer > Adding and Removing Memory Remove the currently installed memory module as follows: ❑ Pull the latches in the direction of the arrows (1). The memory module is released. ❑ Make sure that the memory module tilts up and then pull it out in the direction of the arrow (2). Remove the new memory module from its packaging.
Page 95 Upgrading Your VAIO Computer > Adding and Removing Memory Slide the memory module into the memory module slot and push it in until it clicks into place. Do not touch any components on the motherboard other than the memory module. If you want to install only one memory module, be sure to use the lower slot.
Page 96 Upgrading Your VAIO Computer > Adding and Removing Memory Viewing the Amount of Memory To view the amount of memory Turn on the computer. Click Start, All Programs, and VAIO Control Center. Click System Information and System Information. You can view the amount of system memory in the right pane. If the additional memory does not appear, repeat the installation procedure and restart the computer.
Page 97: Precautions
Precautions > Precautions This section describes safety guidelines and precautions to help you protect your VAIO computer from potential damage. ❑ Safety Information (page 98) ❑ Care and Maintenance Information (page 101) ❑ Handling Your Computer (page 102) ❑ Handling the LCD Screen (page 104) ❑...
Page 98: Safety Information
Precautions > Safety Information Safety Information Computer ❑ Use your computer on a solid, stable surface. ❑ Provide adequate air circulation to prevent internal overheating. Do not place your computer on porous surfaces such as rugs, blankets, couches, beds, or near draperies that may block its air vents. ❑...
Page 99: Battery Pack
❑ For your safety, Sony recommends using the genuine Sony battery pack and AC adapter provided with this product. If these items need to be replaced during the life of the product, be sure to use a compatible genuine Sony battery pack or AC adapter.
Page 100 Precautions > Safety Information Headphones ❑ Road safety – Do not use headphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and is illegal in some areas. It can also be potentially dangerous to play loud music while walking, especially at pedestrian crossings.
Page 101: Care And Maintenance Information
Precautions > Care and Maintenance Information Care and Maintenance Information Computer ❑ Clean the cabinet with a soft, dry or lightly moistened cloth with a mild detergent solution. Do not use an abrasive pad, scouring powder, or solvent such as alcohol or benzine, as these may damage the finish of your computer. ❑...
Page 102: Handling Your Computer
If any problems occur, unplug the computer and contact an authorized Sony Service Center. To find the nearest center or agent, see Finding More about Your VAIO...
Page 103 Precautions > Handling Your Computer ❑ To avoid losing data when your computer is damaged, back up your data regularly. ❑ Do not exert pressure on the LCD screen or its edges when opening the LCD screen lid or lifting your computer. The LCD screen may be sensitive to pressure or added stress, and exerting pressure may damage the screen or cause it to malfunction.
Page 104: Handling The Lcd Screen
❑ Do not change the LCD screen orientation setting in the Tablet PC Settings window even when there are change options available for selection, as this may make your computer unstable. Sony assumes no liability for any malfunctions arising from changes to the settings.
Page 105: Using The Power Source
❑ You can purchase a power strip with a surge protector. This device helps prevent damage to your computer caused by sudden power surges, in an electrical storm, for example. ❑ Use the AC adapter supplied with your computer or genuine Sony products. Do not use any other AC adapter as it may cause a malfunction.
Page 106: Handling The Built-In Camera
Precautions > Handling the Built-in Camera Handling the Built-in Camera ❑ Do not touch the lens protection cover of the built-in camera, as it may cause scratches on the cover and such scratches will appear on the captured images. ❑ Do not let the direct sunlight get into the lens of the built-in camera regardless of your computer's power state, as it may cause the camera to malfunction.
Page 107: Handling Discs
Precautions > Handling Discs Handling Discs ❑ Fingerprints and dust on the surface of a disc may cause read errors. Be sure to hold the disc by its edges and central hole, as shown below: ❑ Never affix an adhesive label to a disc. This will affect the use of the disc and may result in irreparable damage. Downloaded from LpManual.com Manuals...
Page 108: Using The Battery Pack
❑ Do not charge the battery pack in any way other than as described in this user guide or as designated by Sony in writing. ❑ While the battery pack is in use or being charged, heat builds up in the battery pack. This is normal and is not cause for concern.
Page 109: Handling "Memory Stick
Precautions > Handling "Memory Stick" Handling "Memory Stick" ❑ Do not touch the "Memory Stick" connector with your finger or metallic objects. ❑ Use only the adhesive label supplied with "Memory Stick". ❑ Do not bend, drop, or expose "Memory Stick". ❑...
Page 110: Handling The Built-In Storage Device
Precautions > Handling the Built-in Storage Device Handling the Built-in Storage Device The built-in storage device (hard disk drive or solid state drive) has a high storage density and reads or writes data in a short time. However, it can be easily damaged if improperly used. If the built-in storage device is damaged, the data cannot be restored.
Page 111: Troubleshooting
This section describes how to solve common problems you might encounter when using your VAIO computer. Many problems have simple solutions. Try these suggestions before visiting the Sony online support web site at the following URLs: ❑ For customers in USA http://esupport.sony.com/EN/VAIO/...
Page 112 Troubleshooting > ❑ Microphone (page 138) ❑ Speakers (page 139) ❑ Touch Pad (page 141) ❑ Keyboard (page 142) ❑ Floppy Disks (page 143) ❑ Audio/Video (page 144) ❑ "Memory Stick" (page 146) ❑ Peripherals (page 147) Downloaded from LpManual.com Manuals...
Page 113: Computer
❑ Condensation may cause your computer to malfunction. If this occurs, do not use the computer for at least one hour. ❑ Check that you are using the supplied Sony AC adapter. For your safety, use only the genuine Sony rechargeable battery pack and AC adapter, which are supplied by Sony for your VAIO computer.
Page 114 Troubleshooting > Computer What should I do if the green power indicator light turns on but my screen remains blank? ❑ Make sure the LCD backlight of your computer is turned on. To turn on the LCD backlight, see Using Special-function Buttons (page 36).
Page 115 Troubleshooting > Computer What should I do if my computer or software stops responding? ❑ If your computer stops responding while a software application is running, press the Alt+F4 keys to close the application window. ❑ If the Alt+F4 keys do not work, click Start and the Shut down button to turn off your computer. ❑...
Page 116 ❑ If the problem persists, it means the installed battery pack is not compatible. Remove the battery pack and contact an authorized Sony Service Center. To find the nearest center or agent, see Finding More about Your VAIO Computer (page...
Page 117 ❑ If the problem persists, it means the installed battery pack is not compatible. Remove the battery pack and contact an authorized Sony Service Center. To find the nearest center or agent, see Finding More about Your VAIO Computer (page...
Page 118 What should I do if I cannot remember the power-on password? If you have forgotten the power-on password, contact an authorized Sony Service Center to reset it. A reset fee will be charged. To find the nearest center or agent, see Finding More about Your VAIO Computer...
Page 119 Troubleshooting > Computer Why doesn't my screen turn off after the automatic turn-off time has passed? Some software applications or screen savers are designed to temporarily disable the feature of your operating system that turns off the computer screen or places the computer into Sleep mode after a certain period of inactivity. To solve this problem, exit the running software application(s) or change the current screen saver.
Page 120: System Update / Security
Troubleshooting > System Update / Security System Update / Security How can I find important updates for my computer? You can find and install the latest updates on your computer with the software applications: the Windows Update and the VAIO Update. See Updating Your Computer (page 31) for more information.
Page 121 Troubleshooting > System Update / Security How do I keep my antivirus software updated? You can keep the Norton Internet Security software program current with the latest updates from Symantec Corporation. To download and install the latest security updates, follow these steps: Your computer must be connected to the Internet to download the updates.
Page 122: Battery
Troubleshooting > Battery Battery How do I find the battery charging status? You can check the charge indicator for the battery charging status. See Charging the Battery Pack (page 24) for more information. When is my computer using AC power? When your computer is connected to an AC outlet with the AC adapter, it uses AC power, even if the battery pack is installed.
Page 123 Troubleshooting > Battery Can my computer enter Hibernate mode while running on battery power? Your computer can enter Hibernate mode while running on battery power, but some software programs and peripheral devices prevent the system from entering Hibernate mode. If you are using a program that prevents the system from entering Hibernate mode, save your data frequently to avoid losing data.
Page 124: Built-In Camera
Troubleshooting > Built-in Camera Built-in Camera Why does the viewfinder show no images or poor-quality images? ❑ The built-in camera cannot be shared by more than one software application. Exit the current application before launching another. ❑ The viewfinder may show some noise, for example horizontal streaks, when you are viewing a rapid-moving object. This is normal and does not indicate a malfunction.
Page 125 Troubleshooting > Built-in Camera What should I do if movie playback shows dropped frames while my computer is running on battery power? The battery pack is running out of power. Connect your computer to an AC outlet. What should I do if captured images flicker? This problem occurs when you use the camera under fluorescent lights due to a mismatch between the lighting output frequency and the shutter speed.
Page 126: Networking (Lan/Wireless Lan)
Troubleshooting > Networking (LAN/Wireless LAN) Networking (LAN/Wireless LAN) What should I do if my computer cannot connect to a wireless LAN access point? ❑ Connection capability is affected by distance and obstructions. You may need to move your computer away from obstructions or closer to any access point you may be using.
Page 127 Troubleshooting > Networking (LAN/Wireless LAN) What should I do if I cannot access the Internet? ❑ Check the access point settings. See the manual that came with your access point for more information. ❑ Make sure your computer and the access point are connected to one another. ❑...
Page 128 ❑ Wireless LAN communication uses divided frequency bands known as channels. Third-party wireless LAN access point channels may be preset to different channels from Sony devices. ❑ If you are using a wireless LAN access point, see connectivity information contained in the manual that came with your access point.
Page 129: Optical Discs
Troubleshooting > Optical Discs Optical Discs Why does my computer freeze when I try to read a disc? The disc that your computer is trying to read may be dirty or damaged. Follow these steps: Press the Ctrl+Alt+Delete keys and click the arrow next to the Shut down button and Restart to restart the computer. Turning off your computer with the Ctrl+Alt+Delete keys may cause loss of unsaved data.
Page 130 Troubleshooting > Optical Discs What should I do if I cannot play a disc properly on my computer? ❑ Make sure the disc is inserted into the optical disc drive with the label facing upward. ❑ Make sure the necessary program(s) is installed according to the manufacturer's instructions. ❑...
Page 131 Troubleshooting > Optical Discs ❑ Make sure the correct driver software is installed. Follow these steps: Click Start and Control Panel. Click System and Security. Click System. Click Device Manager in the left pane. The Device Manager window appears with a listing of your computer's hardware devices. If an "X"...
Page 132 Troubleshooting > Optical Discs What should I do if I cannot play Blu-ray Disc media or my computer becomes unstable during Blu-ray Disc playback? ❑ Check if your optical disc drive supports the Blu-ray Disc media. ❑ You may not be able to play some Blu-ray Disc content on your computer, or the computer may become unstable during Blu-ray Disc playback.
Page 133: Display
Troubleshooting > Display Display Why did my screen go blank? ❑ Your computer screen may go blank if the computer loses power or enters a power saving mode (Sleep or Hibernate). If the computer is in LCD (Video) Sleep mode, press any key to bring the computer back into Normal mode. See Using the Power Saving Modes (page 28) for more information.
Page 134 Troubleshooting > Display What should I do if I do not see proper images or videos? ❑ Be sure to select True Color (32 bit) for the display colors before using video/image software or starting DVD playback. Selecting any other option may prevent such software from displaying images successfully. To change the display colors, follow these steps: Right-click on the desktop and select Screen resolution.
Page 135 Troubleshooting > Display Why doesn't my screen display a video? ❑ If the display output is directed to the external display and the external display is disconnected, you cannot display a video on your computer screen. Stop video playback, change the display output to the computer screen, and then restart video playback.
Page 136 Troubleshooting > Display How do I run Windows Aero? To run Windows Aero, follow these steps: Right-click on the desktop and select Personalize. Select your desired theme from Aero Themes. For information about the Windows Aero features, such as Windows Flip 3D, see Windows Help and Support. Downloaded from LpManual.com Manuals...
Page 137: Printing
Troubleshooting > Printing Printing What should I do if I cannot print a document? ❑ Make sure your printer is on, and the printer cable is securely connected to the ports on the printer and your computer. ❑ Make sure your printer is compatible with the Windows operating system installed on your computer. ❑...
Page 138: Microphone
Troubleshooting > Microphone Microphone What should I do if my microphone does not work? ❑ If you are using an external microphone, make sure the microphone is turned on and is properly plugged into the microphone jack on your computer. ❑...
Page 139: Speakers
Troubleshooting > Speakers Speakers What should I do if I do not hear sound from the built-in speakers? ❑ If you are using a program that has its own volume control, make sure the volume control is properly set. See the program's help file for more information.
Page 140 Troubleshooting > Speakers What should I do if my external speakers do not work? ❑ Check the suggestions in What should I do if I do not hear sound from the built-in speakers? (page 139). ❑ If you are using a program that has its own volume control, make sure the volume control is properly set. See the program's help file for more information.
Page 141: Touch Pad
Troubleshooting > Touch Pad Touch Pad What should I do if the touch pad does not work? ❑ You may have disabled the touch pad before connecting a mouse to your computer. See Using the Touch Pad (page 35). ❑ Make sure that a mouse is not connected to your computer. ❑...
Page 142: Keyboard
Troubleshooting > Keyboard Keyboard What should I do if the keyboard configuration is wrong? The language layout of your computer's keyboard is labeled on the packaging box. If you choose a different regional keyboard when you complete the Windows setup, the key configuration will be mismatched. To change the keyboard configuration, follow these steps: Click Start and Control Panel.
Page 143: Floppy Disks
Troubleshooting > Floppy Disks Floppy Disks Why doesn't the Safely Remove Hardware icon appear on the taskbar when the drive is connected? Your computer does not recognize the floppy disk drive. First, make sure the USB cable is properly connected to the USB port.
Page 144: Audio/Video
Troubleshooting > Audio/Video Audio/Video What should I do if I cannot use my digital video camcorder? If a message appears stating that the i.LINK device is disconnected or turned off, the i.LINK cable may not be securely plugged into the port on your computer or camcorder. Unplug the cable, and plug it in once again. See Connecting an i.LINK Device (page 77) for more information.
Page 145 Troubleshooting > Audio/Video What should I do if I do not hear the sound from the sound output device connected to the HDMI output port, optical output port, or headphones jack? ❑ You need to change the sound output device if you want to hear sound from the device connected to a port, such as the HDMI output port, optical output port, or headphones jack.
Page 146: Memory Stick
Troubleshooting > "Memory Stick" "Memory Stick" What should I do if I cannot use "Memory Stick" that was formatted on a VAIO computer on other devices? You may need to reformat your "Memory Stick". Formatting "Memory Stick" erases all data, including music data previously saved on it. Before you reformat "Memory Stick", back up important data and confirm that "Memory Stick"...
Page 147: Peripherals
Troubleshooting > Peripherals Peripherals What should I do if I cannot connect a USB device? ❑ If applicable, check the USB device is turned on and using its own power supply. For example, if you are using a digital camera, check if the battery is charged. If you are using a printer, check if the power cable is connected properly to the AC outlet.
Page 148: Trademarks
SD Logo is a trademark. SDHC Logo is a trademark. The ExpressCard word mark and logos are owned by the PCMCIA and any use of such marks by Sony Corporation is under license. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
Page 149 CompactFlash is a trademark of SanDisk Corporation. , "XMB," and "xross media bar" are trademarks of Sony Corporation and Sony Computer Entertainment Inc. "TransferJet" and the "TransferJet" logo are trademarks of Sony Corporation. AVCHD" is a trademark of Panasonic Corporation and Sony Corporation.
Page 150: Notice
In the manual, the ™ or ® marks are not specified. Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein is governed by the terms of a separate user license agreement.

This manual is also suitable for:

Vaio vgn-nw series

Sony VGN-NW Series User Manual

Quick Links

User Guide

Related Manuals for Sony VGN-NW Series

Summary of Contents for Sony VGN-NW Series

This manual is also suitable for:

Table of Contents
