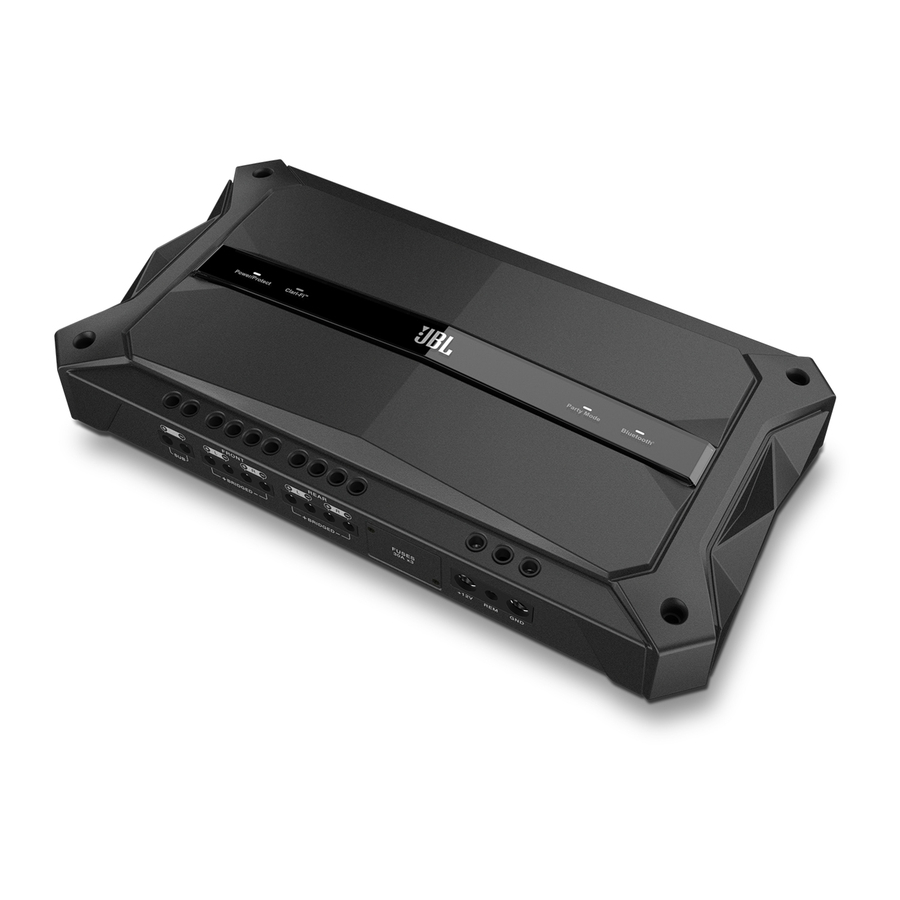

- Page 1 JBL GTR AMPLIFIERS GTR‐7535/GTR‐104/GTR‐102/ GTR-1001/GTR-601 POWER AMPLIFIERS OWNER’S MANUAL...
- Page 2 THANK YOU FOR YOUR PURCHASE . . . Your JBL product has been designed to provide you with the performance and ease of operation you would expect from JBL. • Please take time to read your owner’s manual in its entirety before operating or installing your amplifier.
-
Page 3: Table Of Contents
..........................6 15. Power/Protect Indicator ..........................6 16. Clari-Fi indicator (GTR-102, GTR-104, GTR-7535) ..........................6 17. Party mode indicator (GTR-102, GTR-104, GTR-7535) ..........................6 18. Bluetooth indicator (GTR-102, GTR-104, GTR-75352) ..........................6 CHAPTER 3: REMOTE CONTROLLER (Controls and Indicators) ..........................7 19. -
Page 4: Chapter 1: Pictorial Index Of Input Connections
GTR AMPLIFIERS CHAPTER 1: PICTORIAL INDEX OF INPUT CONNECTIONS GTR Amplifier front panel FRONT REAR — — — — FUSES 30A x2 BRIDGED BRIDGED +12V GTR Amplifier back panel PRE OUT REAR FRONT INPUT LEVEL CONTROLLER GAIN REAR FRONT IN OUT •... -
Page 5: Chapter 2: Installation And Wiring
CHAPTER 2: INSTALLATION AND WIRING What’s in the box: 1 amplifier 2 spare fuses (X3 GTR-7535, GTR-1001; X1 GTR-102) 1 cabin-mounted control panel (GTR-102, GTR-104 and GTR-7535 models) 4 RCA adapters (X2 GTR-102, GTR-601, GTR-1001) 1 REM adapter (GTR-102 and GTR-104 models) 4 screws Owner’s Manual... -
Page 6: Speaker Output Connectors
GTR AMPLIFIERS 1. Speaker output connectors: Connect speakers to terminals observing proper polarity: connect each speaker’s positive (+) lead to the appropriate positive (+) terminal, and negative (-) lead to the appropriate negative (-) terminal. • The GTR-102 features L+, L-, R+, and R- terminals For 2-channel operation connect the left speaker to the L+ and L- terminals, and right speaker to the Front R+ and R- terminals. -
Page 7: Fuses
+12V • The GTR-7535 features Front L+, L-, R+, and R- terminals; Rear L+, L-, R+, and R- terminals; and Sub + and - terminals. For 5-channel operation connect the front left speaker to the Front L+ and L- terminals, and the front right speaker to the Front R+ and R- terminals. -
Page 8: Remote (Gtr-102, Gtr-104, Gtr-7535)
Select LO if providing signal to the amp using line-level connections. Select HI1 or HI2 if using speaker-level connections. 7. Crossover-filter selectors (GTR-102, GTR-104, GTR-7535) Slider switches for selecting high-pass (HP), low-pass (LP), or FULL. GTR-601 and GTR-1001 filters are low pass only. -
Page 9: Rem (Gtr-102, Gtr-104)
The light will illuminate when Clari-Fi has been engaged is applying sound restoration technology to all signals passing through the amp, wired or wirelessly. 17. Party Mode indicator (GTR-102, GTR-104, GTR-7535): The light will illuminate when Party Mode has been engaged (see 25. Party Mode button on remote controller) and multiple paired devices are able to stream music wirelessly to the amp over Bluetooth. -
Page 10: Bluetooth Indicator (Gtr-102, Gtr-104, Gtr-75352)
GTR AMPLIFIERS CHAPTER 3: REMOTE CONTROLLER (Controls and Indicators) 19. Phone Call button and 20. Phone End button: Call status Press Phone Call button to… Press Phone End button to… Outgoing call is ringing Cancel the outgoing call Incoming call is ringing Answer the call Reject the call Call is active... -
Page 11: Clari-Fi Button
GTR AMPLIFIERS 28. Clari-Fi button: Press this button to engage Clari-Fi, which automatically applies the appropriate amount of Sound Restoration technology required by the signal coming into the amp, whether through high-level inputs, low-level inputs, or wirelessly. Leave Clari-Fi engaged since it automatically detects and restores compressed music files and will have no effect on uncompressed sources. -
Page 12: Setting The Input Level Controls
SUB INPUT Select INT if you’re connecting a subwoofer to the GTR-7535 amplifier and if your source unit does not feature a subwoofer output (this will send a summed audio signal to the subwoofer). If your source unit does feature a subwoofer output, select EXT to connect to that output. -
Page 13: Chapter 5: Troubleshooting
200mV ≥75dBA 15Hz-35kHz 75W x 4, ≤0.1% THD+N 100W x 4, ≤0.1% THD+N 200W x 2, <0.3% THD+N ≥75dBA (full) (full range), GTR-7535 2300W 200mV 200W x 1, ≤0.1% THD+N 350W x 1, ≤0.1% THD+N – 15Hz-320Hz (sub) ≥80dBA (sub) GTR-601 380W x 1, ≤0.1% THD+N... - Page 14 GTR AMPLIFIERS HARMAN International Industries, Incorporated © 2016 HARMAN International Industries, Incorporated. All rights reserved. JBL is a trademark of HARMAN International 8500 Balboa Boulevard, Northridge, CA 91329 USA Industries, Incorporated, registered in the United States and/or other countries. Features, specifications and appearance are www.jbl.com...
