Page 1: User Manual

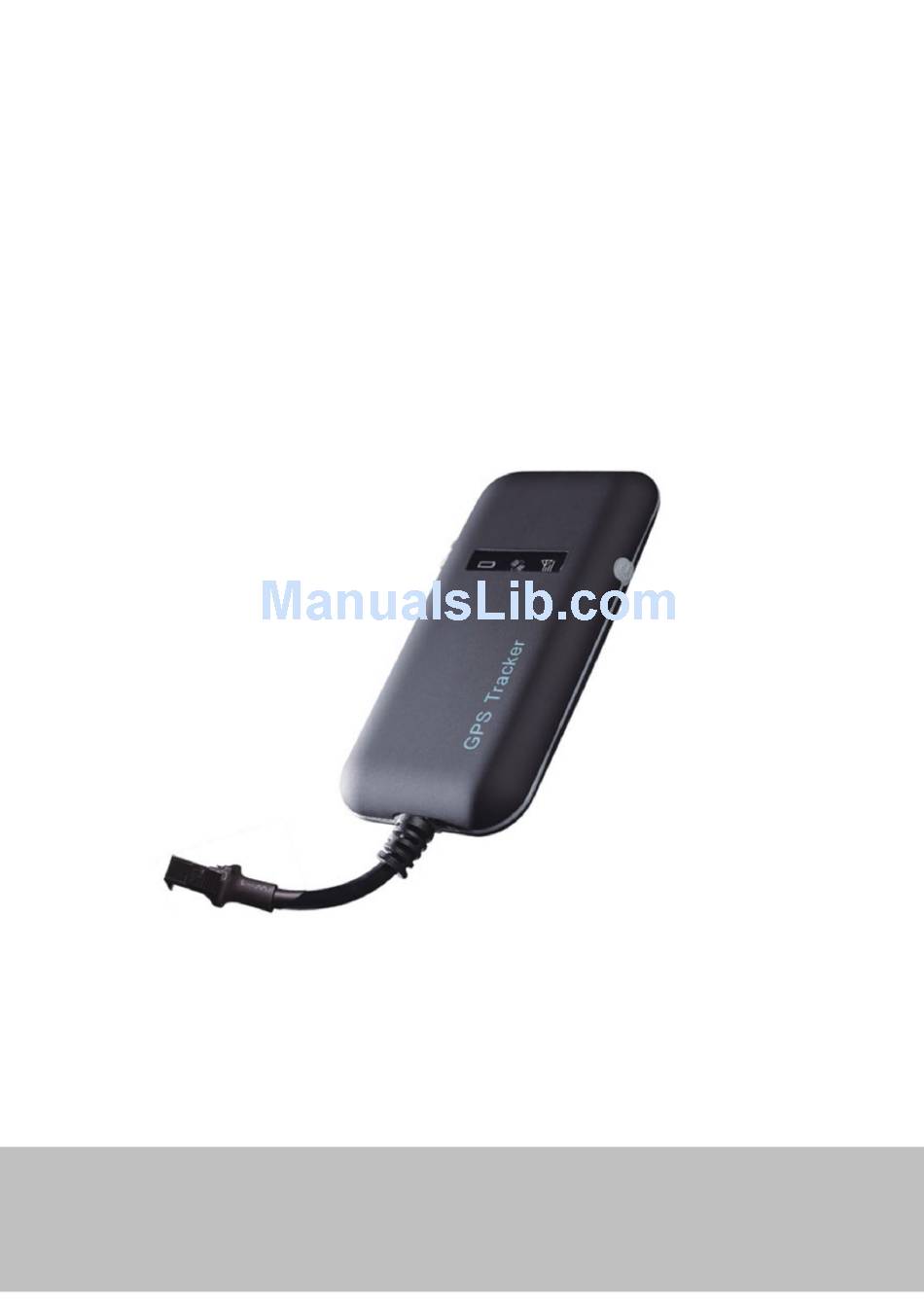

User Manual （Version 2.1） 1. Accessories This user manual has been specially designed to guide you through the functions and features of your GPS vehicle tracker. -
Page 2: Specification
Charging cable (Standard) Battery cables (standard) 2. Specification Dimension 90(L) x 45(W) x 13.5(H) mm Weight Operation Temperature -30℃ - 70℃ Operation Voltage 9-36vDC Humidity 20% - 80% GSM Frequencies 850/900/1800/1900 MHz GPRS Class 12 GPS Sensitivity -159dBm Acquisition Sensitivity -144dBm Position Accuracy Cold Start: ＜38s... -
Page 3: Quick Operation Steps
3. Quick Operation Instructions Change APN parameter by sending SMS “APN,666666,APN name#” and “SERVER,666666,1,www.gptrack.net,8821,0# ”to the device. 3.1 Locate current position by GPRS/SMS 3.2 GPS tracking platform: 3.3 Track by time interval via GPRS Send SMS “TIMER,666666,,time(second)#” to device. 10s in minimum while 18000s(5 hours) in maximum. -
Page 4: Product View And Controls
LED Indications GPS LED Indicator Flashing (1s on, 1s off) Searching GPS signal Continuously bright GPS fix Continuously dark No GPS fix or initializing GSM LED Indicator Quick flashing GSM initializing Continuously bright Connected to Server Sucessful Continuously dark No GSM signal Power Status Flashing Power on... -
Page 5: Selecting Installation Place And Fixing It
3)Please follow the following procedures to install your GT02A.During installation, there should be no power to the device. 6.2 Installing SIM card: each GT02A need to insert a GSM SIM card. The SIM card used should be enabled for GPRS. - Page 6 2) Avoid placing the GT02A close to higher power electrical devices, such as reversing radar, anti-theft device or other vehicle communication equipment. 3) The GT02A should be fixed into position with cable ties or wide double-side tape. 4)Your device has built-in GSM antenna and GPS antenna. During installation, please make sure the receiving side face is up, with no metal object above the device to interfere with GPS reception.
- Page 7 - In the parcel shelf in the rear; - In the front bumper( non-material face), please ensure the device cannot get wet; - Under the wiper version (non-metal), please ensure the device cannot get wet; Notice: If the windshield is pasted with metal thermal-protective coating, it may affect the performance of the device.
- Page 8 8. Power on/ off 8.1 The device will power on automatically when connected to power. During normal operation, red power LED flashes, while blue GPS LED and green GSM LED keep lighting. During signal searching process, GPS or GSM LED will flash. If there is no light presenting on LEDs, the device is not working normally.installation, please make sure the receiving side face is up, with no metal object above the device to interfere with GPS reception.
- Page 9 check the installation position of the device, making sure it is not being shielded by any metal. 10.2 If GSM can not receive the signals normally, please check whether SIM card is installed correctly or there is no GSM signal at the current location , such as a basement parking, please drive to a place covered by GSM signal.
-
Page 10: Sms Command
11.SMS command Password,old password,new password# Change password, default password:666666 Example:Password,666666,777777# Change password from 666666 to 777777 Recover,new password# Change password to default password:666666 Example:recover,777777# Change password to 666666 Set server parameter.mode:0,IP mode; Server,password,mode,IP/DNS,port,0# mode:1,DNS Mode. Example:server,666666,0, 192.96.207.52,6002,0# Set server IP: 192.96.207.52,server port:6002 Example:server,666666,1,www.gpsbox.net,6002,0# Set server DNS:www.gpswox.net,port:6002 Set APN parameter.If apn user,apn password not...
