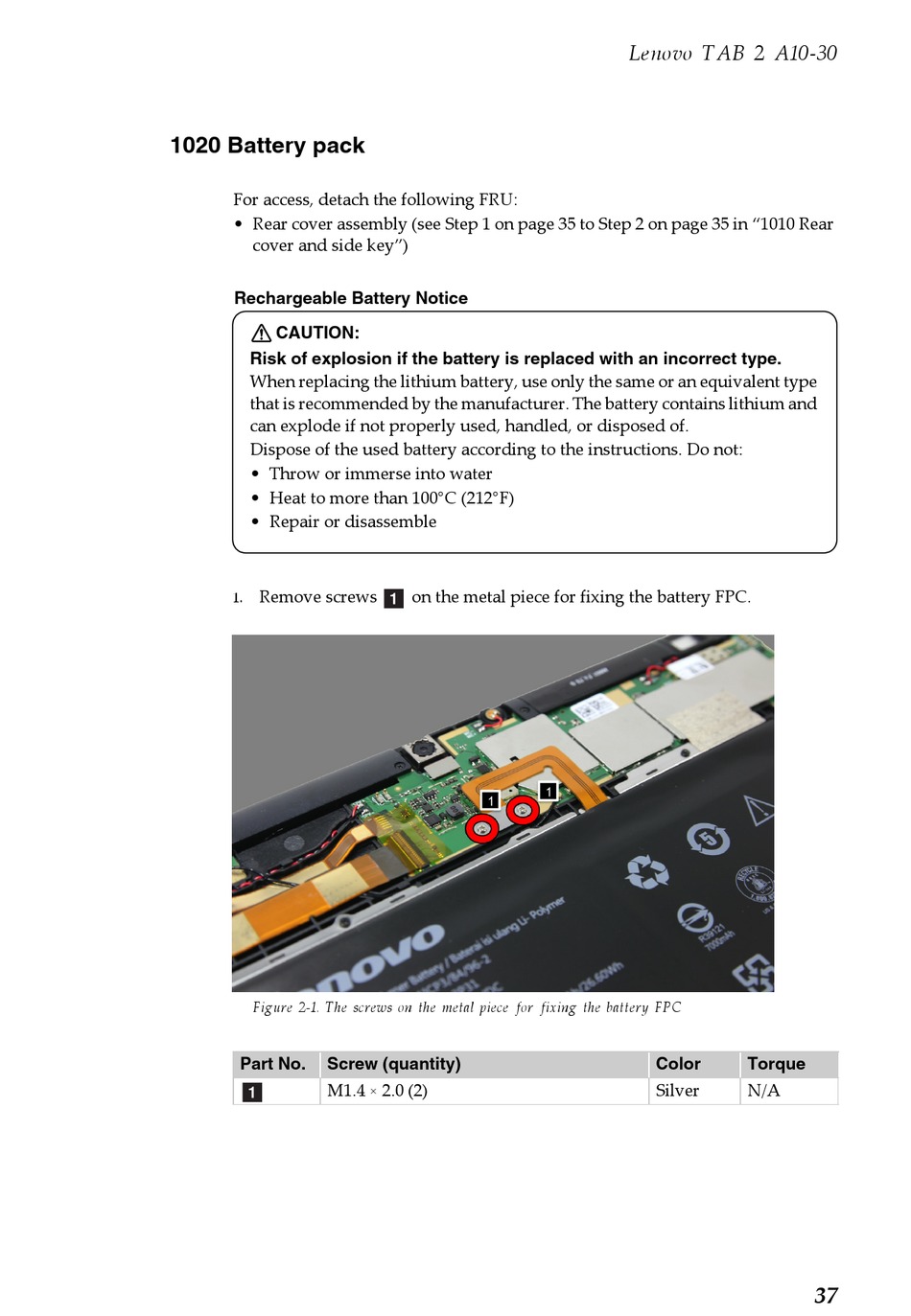

1020 Battery pack

For access, detach the following FRU:
• Rear cover assembly (see Step 1 on page 35 to Step 2 on page 35 in "1010 Rear
cover and side key")
Rechargeable Battery Notice
CAUTION:
Risk of explosion if the battery is replaced with an incorrect type.
When replacing the lithium battery, use only the same or an equivalent type
that is recommended by the manufacturer. The battery contains lithium and
can explode if not properly used, handled, or disposed of.
Dispose of the used battery according to the instructions. Do not:
• Throw or immerse into water
• Heat to more than 100°C (212°F)
• Repair or disassemble
1. Remove screws
Figure 2-1. The screws on the metal piece for fixing the battery FPC
Part No. Screw (quantity)
a
M1.4 × 2.0 (2)
a
on the metal piece for fixing the battery FPC.
Lenovo TAB 2 A10-30
Color Torque
Silver N/A
