Philips HD5410/00 Service Manual

Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
Published by Philips Domestic Appliances and Personal Care
05/12
Coffee Maker "Café Gourmet"
TECHNICAL INFORMATION
- Voltage
- Frequency
- Power consumption
- Contents jug
- Color
- Filter size
- Thermostat (T1) switch-off temp. : 125 ± 5 °C
- Thermostat (T2) switch-off temp. : 75 - 15 °C
- Fuse cut-off temp
- SAP coding
DISASSEMBLY- AND RE-ASSEMBLY ADVISE

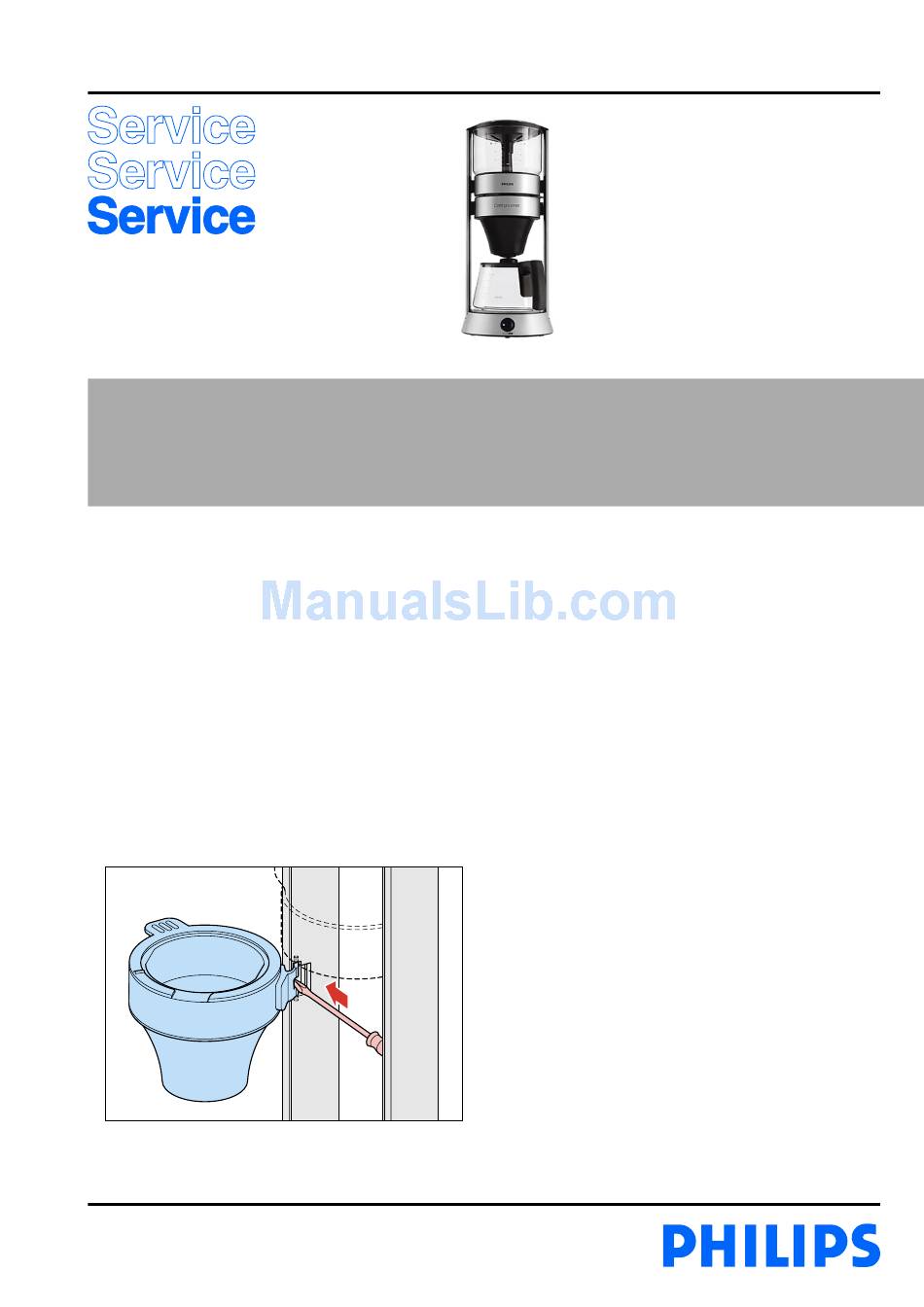

- To remove the swing filter holder proceed as follows:
1. Swing the fi lter holder open.
2. Push with a small screwdriver the plastic cam inside,
see picture for location.
3. While the cam is pushed inside gently lift the fi lter
holder up until the lowest pin of the fi lter holder comes
out of the hinge.
4. Pull downwards the fi lter holder out of alignment till it
comes loose totally.
Printed in the Netherlands © Copyright reserved
HD5410/00
: 220 - 240 V
: 50 Hz
: 1250 W + 50 W
(keep warm element)
: 1000 cc
: Aluminum brushed with
Charcoal Grey plastic parts.
: 1 x 2
: 172 °C
: HD5410
Subject to modification
