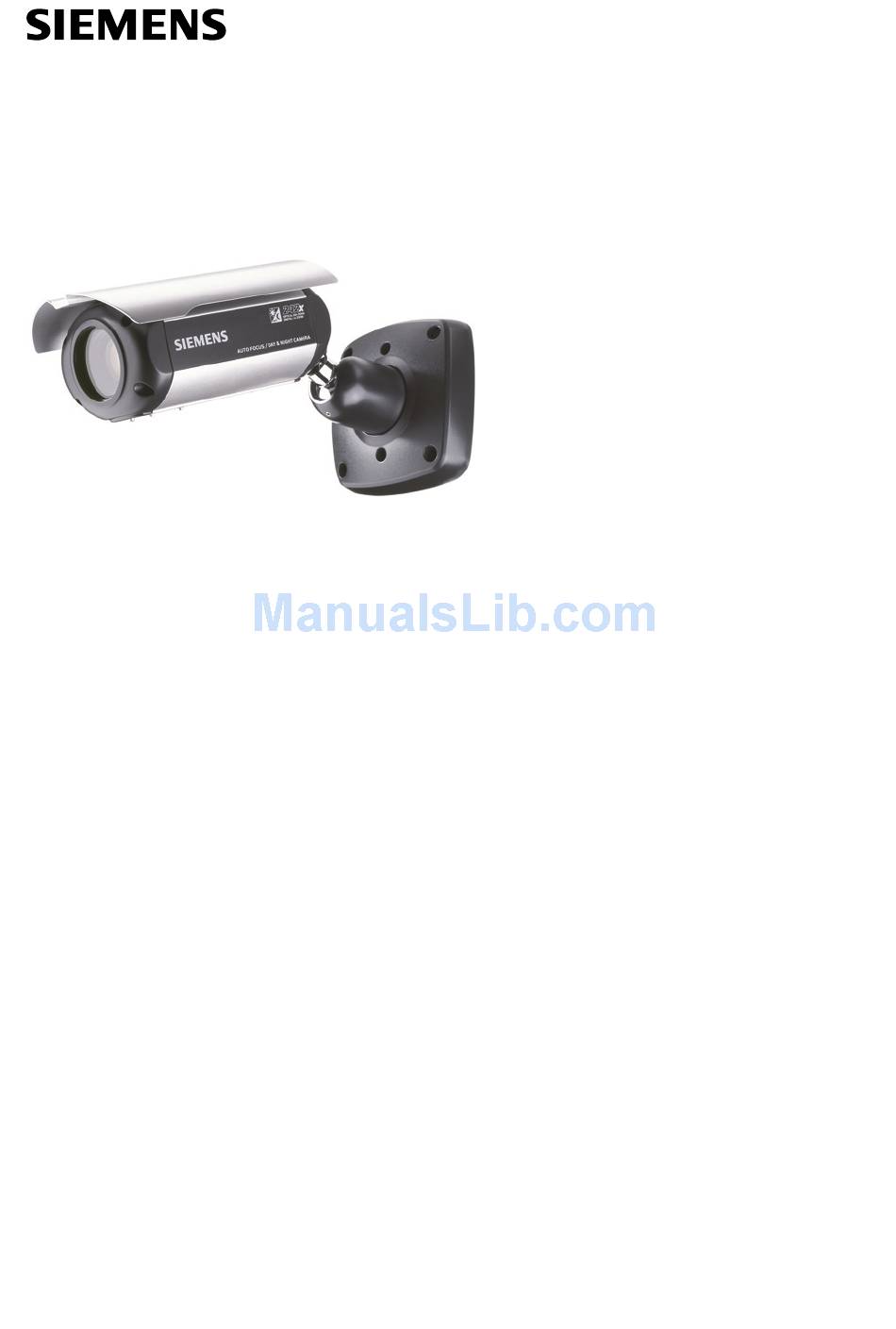

- Page 1 High-Resolution, Day/Night Autofocus All-In- One Camera with 22x Optical / 16x Digital Zoom CCAW1417-LPO Configuration Manual Siemens AG...
- Page 2 Data and design subject to change without notice. / Supply subject to availability. © 2011 Copyright by Siemens AG Wir behalten uns alle Rechte an diesem Dokument und an dem in ihm dargestellten Gegenstand vor. Der Empfänger erkennt diese Rechte an und wird dieses Dokument nicht ohne unsere vorgängige schriftliche Ermächtigung ganz oder teilweise Dritten zugänglich machen oder...
-
Page 3: Table Of Contents
BLC / WDR (Back Light Compensation / Wide Dynamic Range)...27 9.2.5 ALARM / MD (Motion Detection) / FD (Face Detection) ......28 9.2.6 PRIVACY ....................28 9.2.7 SPECIAL ....................29 9.2.8 EFFECT ....................29 9.2.9 CAMSET ....................30 Troubleshooting and maintenance .............31 10.1 Troubleshooting ..................31 10.2 Maintenance....................31 Disposal ....................32 Siemens AG 03.2011... -
Page 5: Safety
Use only spare parts and accessories that have been approved by the manufacturer. 1.2.1 Transport Damage during transport Keep the packaging material for future transportation. Do not expose the device to mechanical vibrations or shocks. Siemens AG 03.2011... -
Page 6: Installation
Always disconnect the power cable and other cables from the main power supply before performing maintenance. Disconnect the device from the mains supply before cleaning it. Do not use liquid cleaners or sprays that contain alcohol, spirit or ammonia. Siemens AG 03.2011... -
Page 7: Meaning Of The Written Warning Notices
There is a risk of minor injuries or damage to property IMPORTANT Malfunctioning may result Meaning of the hazard symbols The nature of the hazard is indicated by icons. Caution - Dangerous area! Caution - Dangerous electrical voltage! Siemens AG 03.2011... -
Page 8: Directives And Standards
Directives and standards Directives and standards The product complies with the requirements of the following EU directives. The EU declaration of conformity is available from: Siemens AG Siemensallee 84 76181 Karlsruhe European Directive 2004/108/EC "Electromagnetic Compatibility" Compliance with the European Directive 2004/108/EC has been proven by testing... -
Page 9: Technical Data
12 V DC / 24 V AC, 0.75 A, 50 Hz Heater power 24 V AC / 0.84 A, 50 Hz General Image sensor ¼-inch SONY 760H EXview HAD CCD Pixels 795 (H) x 596 (V) Scanning system 2:1 interlace Siemens AG 03.2011... - Page 10 Zoom tour 1 tour / 10 presets Alarm mode On/Off/Dwell Time Remote configuration RS-232: Siemens B (parameter setting) RS-485: Siemens B, S; Molynx; Pelco D, P Bit rate BPS 2400/4800/9600/19200 Camera ID 1 – 255 Effect Sharpness, Nega/Posi, D-FLIP, Freeze, HI-...
- Page 11 0 – 96 % (non-condensing) Ambient temperature (storage) -20 to +60 °C Weight 1,50 kg Protection rating IP66 TP output Video output Adjustable: 2.0 Vpp, 2.6 Vpp, 3.2 Vpp Frequency accentuation Adjustable: 0 dB, 6 dB, 12 dB Siemens AG 03.2011...
-
Page 12: Details For Ordering
Details for ordering Details for ordering Type Part no. Designation Weight CCAW1417-LPO S54561-C35-A1 ¼-inch Camera D/N WD AF 1,50 kg CCAA-JB01 S54561-C51-A1 Installation box for CCAx1425/1417 0.85 kg Scope of delivery Camera Installation Manual Software and documentation on CD Mounting parts... -
Page 13: Description Of The Camera
Digital slow shutter (DSS) Automatic white balance (AWB) Automatic gain control (AGC) On-screen menu (OSD) Negative/Positive switching (NEGA/POSI) E function (H/V flip, rotation) High resolution Motion detection and face detection Privacy masking Zoom preset and tour function Home preset Siemens AG 03.2011... -
Page 14: Camera Parts
Mounting parts 4 Point -Drilling Position Fig. 4 Mounting parts Torx screw T-20, 6x35 mm Plastic anchor Ø 8x40 mm Torx wrench T-20 Allen key 2.5 mm Grub screw M5x5 mm Terminal block 7-pin Cable gland M22xP1.5 Template Siemens AG 03.2011... -
Page 15: System Installation
Camera C1...C10 RS485 Keyboard Video Keyboard Video RS232/485 SIMATRIX Monitor Monitor When using the camera in conjunction with a video matrix switcher (SIMATRIX SYS, 648, 164) or other telemetry equipment (different protocol) an interface converter CAC0103 is required. Siemens AG 03.2011... -
Page 16: Installation
Fig. 5 Mounting Cable routing through the wall using the mounting base. Cable through the conduit knockout in the mounting base. Cable through the cable gland without using the mounting base. Cable routing into the installation box (optional). Siemens AG 03.2011... -
Page 17: Installation 1 (Wall And Mounting Base)
Fig. 6 Installation 1 Wall Template Plastic anchor Ø 8x40 mm (4x) Torx screw T-20, 6x35 mm (4x) Mounting base Torx screw T-20 Allen key 2.5 mm Cap-head screw (grub screw) M5x5 mm Siemens AG 03.2011... -
Page 18: Installation 2 (Mounting Base)
Fig. 7 Installation 2 Wall Template Plastic anchor Ø 8x40 mm (4x) Torx screw T-20, 6x35 mm (4x) Cap-head screw (grub screw) M5x5 mm Mounting base Connection cable Torx screw T-20 Allen key 2.5 mm Siemens AG 03.2011... -
Page 19: Installation 3 (Cable Gland Without Mounting Base)
Tighten the grub screw and seal the hole using teflon tape or silicon. Attach the camera to the mounting block. 14.0mm Fig. 8 Installation 3 Cap-head screw (grub screw) M5x5 mm Cable gland (M22 x P1.5) Mounting base Mounting block (1/4-inch 20 UNC) Allen key 2.5 mm Siemens AG 03.2011... -
Page 20: Installation 4 (Optional Installation Box)
This camera is ingress-protected to IP66 only if installed in accordance with the CAUTION instructions in this manual and appropriate waterproofing is applied. For outdoor use, the mounting base requires waterproofing. Waterproofing should be made by qualified service personnel or system installers in accordance to the local requirements. Siemens AG 03.2011... -
Page 21: Connection
Alarm input Remote control Black Control Blue/White Heater power, operating Pink Heater (AC 24 V) temperature -30°C Brown Heater (AC 24 V) RS-232 connection, Orange/Black PC configuration Orange MD output Violet MD/FD off: 0 V, on: 3.3 V Siemens AG 03.2011... -
Page 22: General
8.1.2 RS-485 connection The camera can be controlled remotely by an external device or control system, such as a control keyboard, using RS-485 half-duplex. Connect marked Rx+, Rx- to Tx+ and Tx- of the RS-485 control system. Siemens AG 03.2011... -
Page 23: Twisted-Pair Video Output
5 MHz 6 dB 6 dB 12 dB Condition on delivery 8.1.4 Alarm output The alarm output (motion detection result or face detection result or external signal fed in) is active high. Alarm output Violet Black Siemens AG 03.2011... -
Page 24: Remote Configuration
Remote configuration MENU TELE NEAR WIDE 42mm Fig. 12 Remote configuration – circuit diagram Camera Black Remote control Blue/White Remote control unit Remote control White Black Remote control unit The remote control cable must not be extended. Siemens AG 03.2011... -
Page 25: Camera Settings
Select min. distance in focus between camera and object: 0.1 / 1.0 / 1.5 / 2.5 / 6.0 m D-ZOOM Digital zoom function on/off D-ZOOM END Select max. digital zoom factor: x2 – x16 ZOOM PRESET Select zoom preset number: 1 – 10 Siemens AG 03.2011... -
Page 26: Wb (White Balance)
Since the colour rolling path differs depending on the fluorescent lamp used, it has to be adjusted individually. To do so, select the WB menu. After about 10 s, the adjust mode will be finished automatically. Back to the next higher menu level Siemens AG 03.2011... -
Page 27: Ae (Auto Exposure)
Select BLC area: 1-9, activated only in BLC manual mode BLC LEVEL Select back light compensation level: LOW, MID, HIGH WDR MODE WDR (Wide Dynamic Range) function on/off WDR LEVEL Select WDR level: 10 – 50 Back to the next higher menu level Siemens AG 03.2011... -
Page 28: Alarm / Md (Motion Detection) / Fd (Face Detection)
Adjust the location of the mask area with boundary bottom and right COLOUR Select mask colour: 1 – 8 MOSAIC Mosaic display on/off MOSAIC TYPE Mosaic roughness setting: 1 – 4 Back to the next higher menu level Siemens AG 03.2011... -
Page 29: Special
Select digital flip function: vertical flip/horizontal flip/180° rotation FREEZE Select real or still mode HI-RES Select high-resolution mode: Low/Mid/High 2DNR Select 2D noise reduction level: Off/01 – 7 3DNR Select 3D noise reduction level: Off/01 – 31 Back to the next higher menu level Siemens AG 03.2011... -
Page 30: Camset
Select camera ID: 1 – 255 BAUD RATE Select serial communication speed: 2400/4800/9600/19200 PROTOCOL Select operating protocol: COMMAND: for factory use only SIEMENS – B (Parity = Even) SIEMENS – S (Parity = Even) MOLYNX (Parity = Even) PELCO – D (Parity = None) PELCO –... -
Page 31: Troubleshooting And Maintenance
Therefore, the following maintenance tasks should be performed on a three-monthly basis: Inspect all connection cables for deterioration or other damage. Clean all components with a soft, clean cloth. Check that all fixings are secure. Siemens AG 03.2011... -
Page 32: Disposal
It is a precondition for reuse and recycling of used electrical and electronic equipment. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product. Siemens AG 03.2011... - Page 34 Issued by Siemens AG Siemensallee 84 D-76187 Karlsruhe, © 2011 Copyright by Siemens AG Tel. +49 721 595 1 Data and design subject to change without notice. www.buildingtechnologies.siemens.com Supply subject to availability. Document No. A6V10321806 Edition 25.03.2011...
