Service Mode

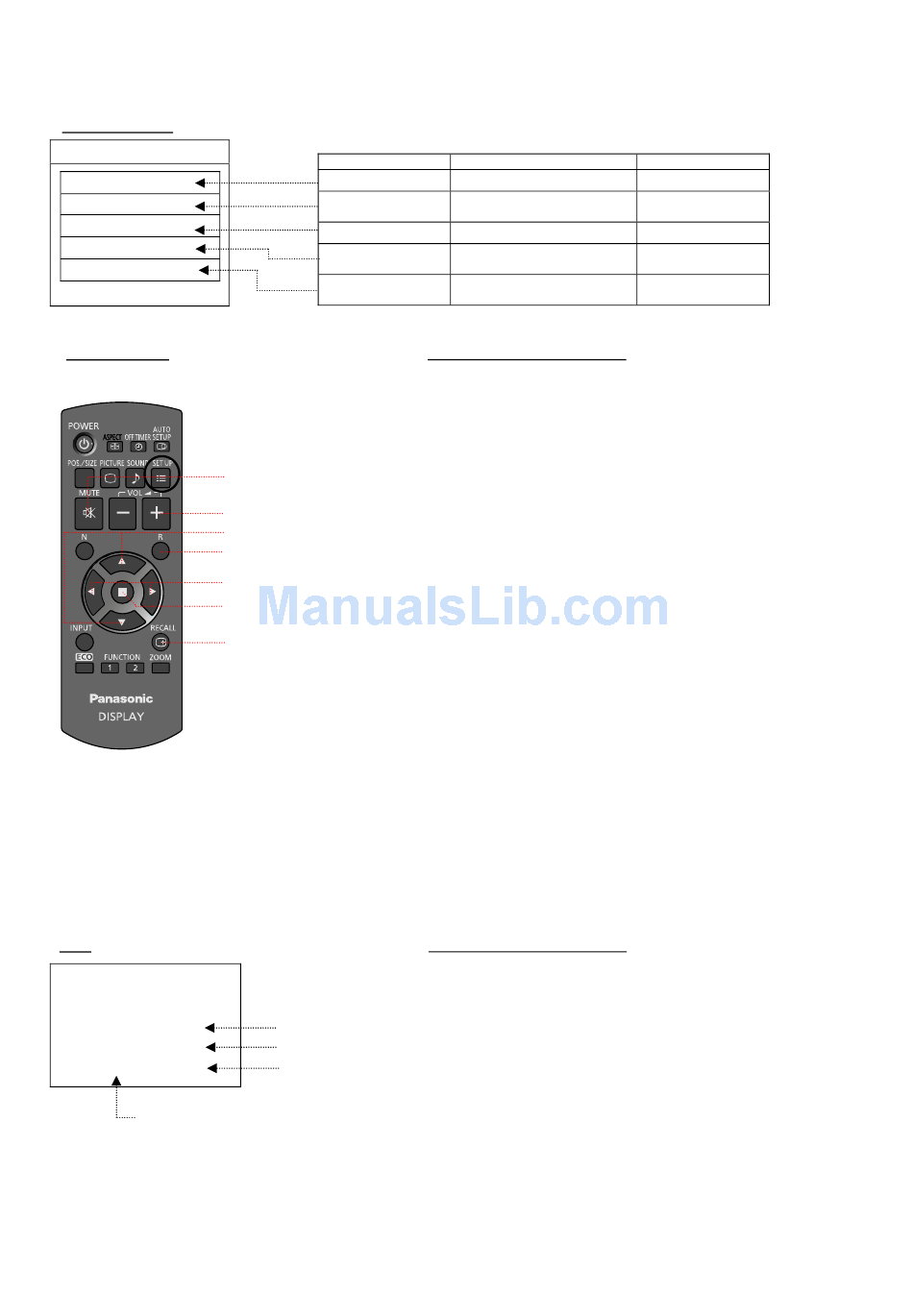

CAT (Computer Aided Test) Mode

CAT mode menu
CAT panel sys. 8.2

IIC Mode

CD Mode
SD Mode
MS Mode
ID mode
Remote Control
MUTE
VOL Up/Down
Up/Down
R
Left/Right
ACTION
RECALL
IIC Mode
Select the IIC mode by Up/Down buton on the remote control at the front page of CAT mode and then press the Action button
on the remote control.
OSD
Signal
Full Dynamic Hi
PANEL W/B Adj.
R Drive
30 30
Original data
Mode
IIC
CD (Complete
Diagnostic)
SD (Status Display)
SM Mode
ID Mode
How to access the CAT mode.
Press and hold the Volume down/-button on the
top panel of the unit and press the RECAL button
on the remote control 3 times quickly within 2 second,
this will place the unit into the CAT mode.
The exit CAT mode access the ID mode and switch
off the main power.
How to access the CAT mode.
1.
2.
Subjekt
3.
Item
New data
4.
Subject and Item are mentioned on "IIC mode structure".
To exit the IIC mode, press the R button on remote control.
13
Function
Service Alignment
Software version
information EEPROM edit
MTBF parameter
Market Select
LSI Check
Select the alignment Subject by Up/Down buttons
on remote control.
Select the alignment Item by Left/Right buttons
on the remote control.
Adjust optimum setting by Volume Up/Down buttons
on the remote control.
The data is memorized when press the R button
on the remote control or change the alignment
Subject (or Items).
Access Button
Action
Mute more than 3
seconds
Action
Mute more than 3
seconds
Mute more than 3
seconds
