Page 1: Instructions For Use
Instructions for use and maintenance Argos Attention: Remove the instructions from the fireplace and give them to the client, along with the neces- sary instructions (explanations and demonstrations) 07DHARGA 10.08 Argos 1... -
Page 2: Guarantee
The validity of the guarantee is annulled in the event of non-compliance with the requirements and recommendations in these instructions. Maintenance under guarantee will be carried out exclusively through the dealer on presentation of the purchase invoice. Parts will only be delivered in exchange for faulty parts. 2 Argos... - Page 3 Any costs not agreed in advance by Bodart & Gonay. Costs resulting from non-use of the appliance. EFFECTIVE DATE The guarantee takes effect from the date written on the invoice. The invoice is the sole authentic docu- ment for the guarantee Argos 3...
-
Page 4: Data Sheet
DATA SHEET Type ARGOS Gaz No. 47GV74E Double cat. II , II 2E+3P 2H3P Gaz LPG Cat.I Natural gas Cat.I 2ELL - Category of gas G20 - 20 mbar (gaz nat.) G25 - 25 mbar (gaz nat.) G31 - 37 mbar (propane) G25 - 20 mbar (gaz nat.) -
Page 5: Dimensions
DIMENSIONS Argos 5... - Page 6 6 Argos...
- Page 7 Argos 7...
- Page 8 8 Argos...
-
Page 9: Description
Control box and reception sensor + fan control Decorative plate Concentric fume exhaust flue Warm air duct and connection nozzle Gravel Pilot light + thermocouple + electrode Stone support Door-opening/anti-explosion system Baffle Gas inlet Remote control Door-opening tool Manual command switch 1/0 Tranformater AUTO °C Argos 9... -
Page 10: Exploded View
EXPLODED VIEW 10 Argos... - Page 11 27GV14024 TUBO ALIMENTACION GAS LLAMA PIL GAS SUPPLY PIPE VALVE ARGOS 740 AIR-VENT 27GV74032 JAULA DE PROTECTION LLAMA PILOTO A PROTECTION CAGE PILOT LIGHT RIGHT ARGOS 74 27GV74037 TAPON SALIDA AIRE CALIENTE PHENIX PLUG WARM AIR OUTLET PHENIX - ARGOS...
-
Page 12: Important Recommendations
- The first fire bakes the paint, which causes a release of fumes: - Ventilate the room. - Do not touch the paint until the fireplace has cooled down as initially it softens. After three unsuccessfull lighthing attemps, the appliance goes into security mode and blocks for five minutes. 12 Argos... - Page 13 Argos 13...
-
Page 14: Maintenance
- The ventilation system is fitted with a thermal switch. This device starts or stops ventilation auto matically according to the temperature of the heating unit. When the latter reaches a temperature of around 40°C, the thermal switch starts up the fan. 14 Argos... -
Page 15: Using The Remote Control
After three unsuccessfull lighthing attemps, the appliance goes into security mode and blocks for five minutes. CHANGING TO THERMOSTAT MODE: “Argos Me2.2 en 2.3” diagram o change to “thermostat” mode, press twice on the left (SET) button, and then choose the temperature required using the plus and minus buttons. -
Page 16: 10 Operating Faults
- Clean or replace the filters/down draught grills. - Clean the impeller blades. Disappearance of flame and safety mechanism - Check chimney connection after 25 secs. - Check airtightness - Check that the flue is free of blockages 16 Argos... - Page 17 Argos 17...
- Page 18 18 Argos...
- Page 19 Argos 19...
- Page 20 Bodart & Gonay s.a. Parc Artisanal de Harzé - Rue de Lambinon, 3 - B - 4920 HARZE (Aywaille) +32(0)4 239 93 93 info@b-g.be www.b-g.be 20 Argos...
-
Page 21: Installation Instructions
INSTALLATION INSTRUCTIONS Argos Attention: Remove the instructions from the fireplace and give them to the client, along with the necessary instructions (explanations and demonstrations). 07DHARGA 10.08 Argos 23... -
Page 22: Important Recommendations
- The Argos gas air-vent fireplace must be connected by an approved installer in accordance with the standard NBN D51/003 or NBN D51/006 LPG and Pr NBN 61-002 for Belgium and standard NFD 35-377 or Document Technique Unifié... - Page 23 - The first fire bakes the paint, which causes a release of fumes: - Ventilate the room. - Do not touch the paint until the fireplace has cooled down as initially it softens. After three unsuccessful attemps to light, the appliance automatically blocks itselfs for 5 minutes. Argos 25...
-
Page 24: Chimney Installation
* B > A + 3 m : réduction dia.65 mm ** H > 3 m : réduction dia 65 mm with a section with diameter measuring at least 200 for the Cosmos 145 and Argos, and 150 for the Cosmos 100, Helios and Solaris. + 1 m + 0,5 m The “existing chimney”... - Page 25 Installing the draught limiter n˚7 n˚7 n˚7 Argos 27...
-
Page 26: Installing And Connecting The Fireplace
INSTALLING AND CONNECTING THE FIREPLACE - Plan for the gas intake on the right of the appliance. - Place the Argos in the ventilated alcove. - Connect the chimney flue to the outside of the fireplace (“ONTOP” or “POUJOLAT” flue). -
Page 27: Fan Installation
- The fan may be mounted under the fireplace. Put the fan through the lower hole. Position it using silent blocks in the four housings provided for this purpose. Leave room for the electrical lead. - A thermal switch activates the fan when the appliance is hot and cuts it out when the appliance cools down. Argos 29... -
Page 28: Changing The Injector From Natural Gas To Lpg
Argos Optifire minimum 10 mm minimum 10 mm 10 mm 745 mm 200+20 =mini.220mm 200 mm 200 mm 50+230+50 50+260+50 =mini.330 mm =mini.360mm 140 mm Argos Infire Argos Optifire CHANGING THE INJECTOR FROM NATURAL GAS TO LPG Follow the first 5 steps for dismantling the hatch. - Page 29 Changement de l'injecteur de la veilleuse Verandering van de sproeier van de waakvlam Changing the pilotlight-injector KIT LPG N°10 N°11 07DHCOSIV Argos 31...
-
Page 30: Initialisation
INITIALISATION 32 Argos... - Page 31 Important: warning! The initialisation operation must only be done by a qualified person and must only be done in rare cases. It also requires work on the remote control as well as in the appliance. Argos 33...
- Page 32 ARGOS INFIRE...
- Page 33 220V 12 x...
-
Page 34: Table Of Contents
INSTALLING AND CONNECTING THE FIREPLACE CHANGING THE INJECTOR FROM NATURAL GAS TO LPG INITIALISATION Bodart & Gonay s.a. Parc Artisanal de Harzé - Rue de Lambinon, 3 - B - 4920 HARZE (Aywaille) +32(0)4 239 93 93 info@b-g.be www.b-g.be 34 Argos...
Need help?
Do you have a question about the ARGOS and is the answer not in the manual?
Questions and answers

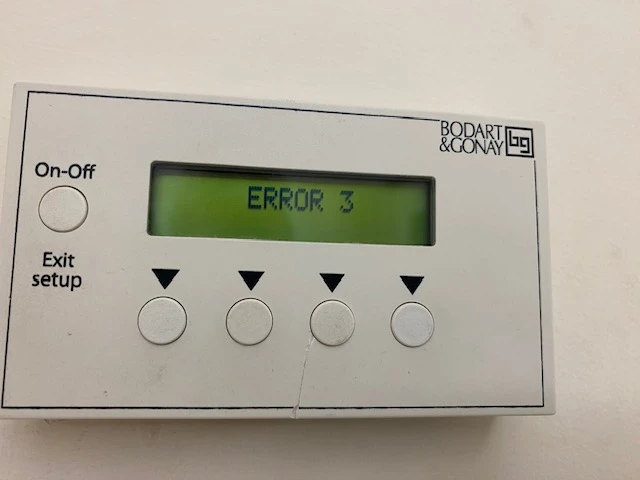

Porque da este erro ?
