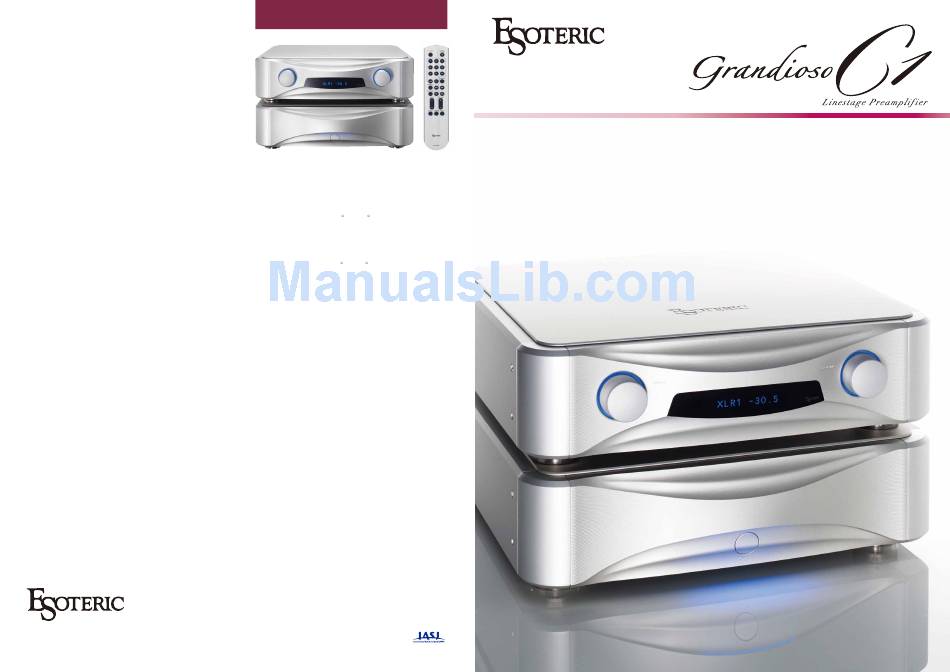

P R O U D L Y M A D E I N T O K Y O
ESOTERIC COMPANY
1-47 Ochiai, Tama-shi, Tokyo 206-8530, Japan
Fax: (042)356-9240
www.esoteric.jp
S p e c i f i c a t i o n s
Analog audio inputs
Connectors
RCA × 2 pairs / XLR × 3 pairs
(RCA 2 can be used as an AV pre-input)
Input impedance
RCA :10 k
/ XLR :10 k
Input sensitivity
At rated output : 510 mV
Maximum input level
12 V
Analog audio outputs
Connectors
RCA × 2 pairs / XLR × 2 pairs
Output impedance
RCA : 47
/ XLR : 66
Total harmonic distortion
RCA : 0.0006 % / XLR : 0.0004 %
Frequency response
1 Hz − 200 kHz ( -3.0 dB) / 3 Hz − 50 kHz ( -0.2 dB)
Signal-to-noise ratio (S/N)
116 dB (2 V input, A-weight)
Gain
+12 dB
Rated output
2 V
Maximum output level
RCA : 7.5 V (1 kHz, 0.003 %) / XLR : 15 V (1 kHz, 0.003 %)
General
Power supply
AC 230 V, 50 Hz / AC 120 V, 60 Hz / AC 220 V, 60 Hz
Power consumption
25 W
External dimensions (W × H × D) (including protrusions)
Main unit
445 × 132 × 457 mm (17 5/8˝ × 5 1/4˝ × 18)
Power unit
445 × 132 × 451 mm (17 5/8˝ × 5 1/4˝ × 17 7/8˝ )
Weight
Main unit
21 kg (46 3/8 lb)
Power unit
29 kg (64 lb)
Included accessories
Power cords × 2 / DC power connection cords × 2 / Remote control (RC-1315) × 1
Batteries for remote control (AAA) × 2 / Felt pads × 8 / Owner's manual × 1 / Warranty card × 1
This product is available in three different power supply variations shown in the chart above.
Make sure that the voltage shown on the rear panel matches the AC line voltage in your area. The shape of the
AC inlet and plug of the supplied power cord
depends on the voltage rating and destination country.
Please note that Esoteric products are available at limited distributors in respective countries.
"ESOTERIC"and "VRDS" are trademarks of TEAC Corporation, registered in the U.S. and other countries.
"Grandioso" is a trademark of TEAC Corporation.
©2014 TEAC Corporation. All Rights Reserved. All text, images, graphics and other materials on this catalogue are subject to the copyright and other intellectual
property rights of TEAC Corporation. These materials shall not directly or indirectly be published, reproduced, modified or distributed in any medium.
Design and specifications are subject to change without notice.
PRINTED IN JAPAN 1014O05 ・ TECD-0198
