Static Ip - D-Link DIR-859 User Manual

Section 3 - Configuration

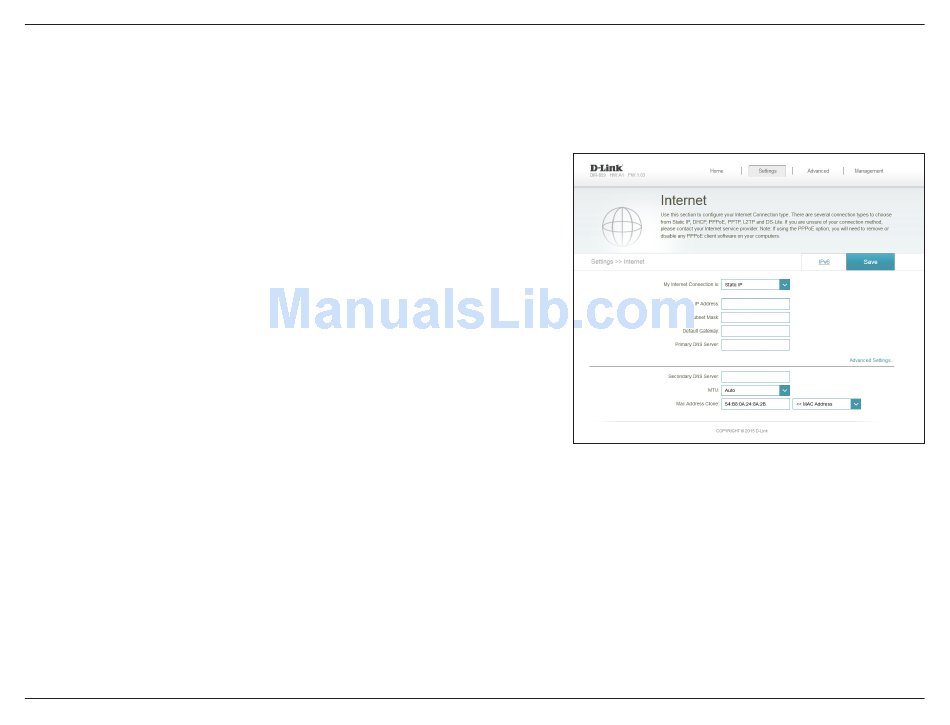

Select Static IP if your IP information is provided by your Internet service provider (ISP). Each IPv4 address must be entered in the appropriate form,
known as dot-decimal notation. This means four decimal numbers separated by dots (x.x.x.x).
IP Address: Enter the IP Address provided by your ISP.
Subnet Mask: Enter the Subnet Mask provided by your ISP.
Default Enter the Default Gateway address provided by your ISP.
Gateway:
Primary DNS Enter the Primary DNS Server IP address assigned by your ISP.
Server:
Secondary DNS Enter the Secondary DNS Server IP address assigned by your ISP.
Server:
MTU:
Maximum Transmission Unit - by default this field will be set to Auto.
Select Manual if you need to change the MTU for optimal performance
with your ISP.
MAC Address
The default MAC address is set to the Internet port's physical interface
Clone: MAC address on the router. You can use drop-down menu to replace
the Internet port's MAC address with the MAC address of a connected
client.
Click Save when you are done.
D-Link DIR-859 User Manual

Static IP

27
