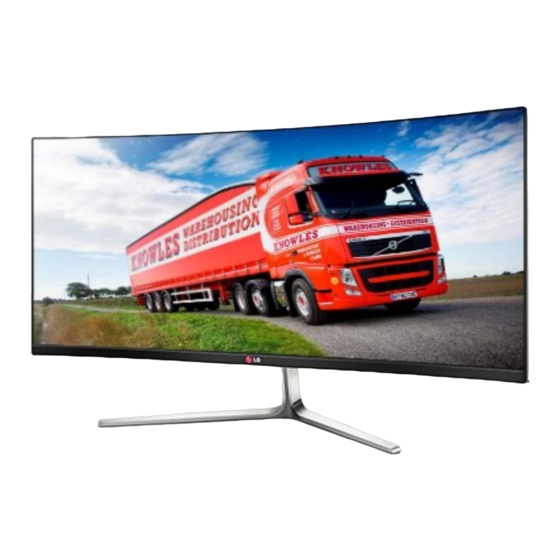

OWNER'S MANUAL
IPS LED MONITOR
(LED MONITOR
* LG LED Monitor applies LCD screen with LED backlights.
Please read the safety information carefully
before using the product.
34UC97
34UC97C
*
)
www.lg.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 34UC97 and is the answer not in the manual?

Questions and answers

Related Manuals for LG 34UC97

Summary of Contents for LG 34UC97

  • Page 1 OWNER'S MANUAL IPS LED MONITOR (LED MONITOR * LG LED Monitor applies LCD screen with LED backlights. Please read the safety information carefully before using the product. 34UC97 34UC97C www.lg.com...

  • Page 2: Table Of Contents

    Table of ConTenTs Table of ConTenTs UseR seTTInGs lICense Activating the Main Menu - Main Menu Features asseMblInG anD User Settings PRePaRInG - Menu Settings Product Composition - Ratio Product and Button Description - Function - How to Use the Joystick Button - PBP - Input Connector - Picture...

  • Page 3: License

    Each model has different licenses. Visit www.lg.com for more information on the license. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

  • Page 4: Assembling And Preparing

    The product warranty will not cover damage or injury caused by the use of unauthorized components. It is recommend that use the supplied components. If you use generic cables not certified by LG, the screen may not display or there may be image noises.

  • Page 5: Product And Button Description

    asseMblInG anD PRePaRInG Product and button Description Joystick button Power leD on Power on off Power off How to Use the Joystick button You can easily control the functions of the monitor by pressing the joystick button or moving it left/right with your finger.

  • Page 6: Input Connector

    PRePaRInG Input Connector DC switch 34UC97 DC-IN HDMI IN 1 HDMI IN 2 DP-IN USB UP USB IN 1 USB IN 2 1.1 A 1.1 A (19 V 34UC97C DC-IN HDMI IN 1 HDMI IN 2 DP-IN USB UP...

  • Page 7: Moving And Lifting The Monitor

    asseMblInG anD PRePaRInG Moving and lifting the CaUTIon Monitor Avoid touching the monitor screen as much as possible. When moving or lifting the monitor, follow these - This may result in damage to the screen or instructions to prevent the monitor from being some of the pixels used to create images.

  • Page 8: Installing The Monitor

    asseMblInG anD PRePaRInG Installing the Monitor stand body assembling the stand stand base CaUTIon To protect the screen, place the screen face down on the screen pad which is inside the box. screw Cover stand Hinge...

  • Page 9: Installing On A Table

    asseMblInG anD PRePaRInG Installing on a Table Input connector cover Lift the monitor and place it on the table in an upright position. Place the monitor at least 10 cm away from the wall to ensure sufficient ventilation. 10 cm 10 cm 10 cm 10 cm...

  • Page 10: Tidying Up Cables

    asseMblInG anD PRePaRInG adjusting the angle Cautions When Connecting Power Cord Place the monitor mounted on the stand base in an upright position. Adjust the angle of the screen. The angle of the screen can be adjusted forward or back- ward from -5°...

  • Page 11: Using The Kensington Lock

    The Kensington security system is optional. A non-VESA standard screw may damage the You can obtain optional accessories from most product and cause the monitor to fall. LG Elec- electronics stores. tronics is not liable for any accidents relating to the use of non-standard screws.
  • Page 12 Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could lead to injury. Use an authorized LG wall mount and contact the local dealer or quali- fied personnel.

  • Page 13: Installing The Wall Mount Bracket

    asseMblInG anD PRePaRInG Installing the Wall Mount bracket noTe Be careful not to apply too much force while mounting the wall mount bracket as it may cause damage to the screen. Applying excessive force when tightening screws may cause damage to the monitor. Dam- age caused in this way will not be covered by the product warranty.

  • Page 14: Using The Monitor

    This monitor supports the *Plug and Play fea- The following instructions are based on the ture. 34UC97 model. Illustrations in this manual * Plug and Play: A feature that allows you to add a may differ from the actual product.

  • Page 15: Displayport Connection

    Thunderbolt port. Connect your external device to tration below: the monitor using the Thunderbolt cable as illus- trated below. DP-IN 34UC97 (sold separately) DP OUT noTe There may be no video or audio output de- pending on the DP (DisplayPort) version of the...

  • Page 16: Connecting Av Devices

    UsInG THe MonIToR Connecting aV Devices Connecting Peripherals HDMI Connection Usb Cable connection - PC HDMI transmits digital video and audio signals The USB port on the product functions as a USB from your AV device to the monitor. Connect your hub.

  • Page 17: Connecting Headphones

    USB port may not work properly. Depending on the audio settings of the PC and external device, headphones and speaker 34UC97 functions may be limited. USB UP USB IN 1 USB IN 2 HDMI IN 1 HDMI IN 2 1.1 A...

  • Page 18: User Settings

    UseR seTTInGs UseR seTTInGs activating the Main Menu Press the joystick button on the bottom of the monitor. Move the joystick up/down (▲/▼) and left/right(◄/►) to set the options. Press the joystick button once more to exit the main menu. Joystick button button Menu status...

  • Page 19: User Settings

    UseR seTTInGs User settings Menu settings To view the osD menu, press the joystick button at the bottom of the monitor and then enter the Menu. Configure the options by moving the joystick up/down/left/right. To return to the upper menu or set other menu items, move the joystick to ◄ or pressing ( / OK) it.

  • Page 20: Ratio

    UseR seTTInGs Ratio easy control > brightness To view the osD menu, press the joystick button at the easy control > Contrast bottom of the monitor and then enter the Menu. > Volume Go to easy control > Ratio by moving the joystick. function >...

  • Page 21: Function

    UseR seTTInGs function function > Maxxaudio To view the osD menu, press the joystick button at the easy control > Reader Mode bottom of the monitor and then enter the Menu. > Picture Mode Custom Go to function by moving the joystick. function >...

  • Page 22: Pbp

    Menu > PbP Description Displays the screens of two input modes on one monitor. sub screen (Right) Thunderbolt ( ) PbP Connection HDMI 1 HDMI 2 DisplayPort (only 34UC97 model) HDMI 1 HDMI 2 Main DisplayPort screen (left) Thunderbolt ( )
  • Page 23 UseR seTTInGs Menu > PbP Description Ratio Adjusts the aspect ratio of the main screen or sub screen. Main Wide Displays the video to fit the PBP screen, regardless of the video signal input. original Displays the video in the aspect ratio of the video signal input on the PBP screen.

  • Page 24: Picture

    UseR seTTInGs Picture Picture > sharpness To view the osD menu, press the joystick button at the easy control > black level High bottom of the monitor and then enter the Menu. > Response Time Middle Go to screen > Picture by moving the joystick. function Configure the options following the instructions that appear in the bottom right corner.

  • Page 25: Color

    UseR seTTInGs Color Color > Gamma Gamma 1 To view the osD menu, press the joystick button at the easy control > Color Temp Custom bottom of the monitor and then enter the Menu. > Go to screen > Color by moving the joystick. function >...

  • Page 26: Settings

    UseR seTTInGs settings settings > language english To view the osD menu, press the joystick button at the easy control > Power leD bottom of the monitor and then enter the Menu. > automatic standby Go to settings by moving the joystick. function >...

  • Page 27: Reset

    UseR seTTInGs Reset Reset Do you want to reset your settings? To view the osD menu, press the joystick button at the easy control Reset bottom of the monitor and then enter the Menu. Cancel Go to Reset by moving the joystick. function Configure the options following the instructions that appear in the bottom right corner.

  • Page 28: Troubleshooting

    TRoUblesHooTInG TRoUblesHooTInG nothing is displayed on the screen. Is the monitor's power cord Check if the power cord is correctly plugged into the power outlet. plugged in? Is the power LED on? Check the power cable connection and press the power button. Is the power on and the power Check that the connected input is enabled (Menu - Input).
  • Page 29 TRoUblesHooTInG noTe Check if the video card's resolution or frequency is within the range allowed by the monitor and set it to the recommended (optimal) resolution in Control Panel > Display > settings. Not setting the video card to the recommended (optimal) resolution may result in blurred text, a dimmed screen, a truncated display area or misalignment of the display.

  • Page 30: Product Specification

    PRoDUCT sPeCIfICaTIon PRoDUCT sPeCIfICaTIon 34UC97 LCD Screen Type TFT (Thin Film Transistor) LCD (Liquid Crystal Display) Screen Color Depth HDMI 8-bit color is supported. DP (DisplayPort) 10-bit color is supported. 8-bit color is supported. Thunderbolt ( ) Pixel Pitch 0.2325 mm x 0.2325 mm...
  • Page 31 PRoDUCT sPeCIfICaTIon 34UC97C LCD Screen Type TFT (Thin Film Transistor) LCD (Liquid Crystal Display) Screen Color Depth HDMI 8-bit color is supported. DP (DisplayPort) 10-bit color is supported. Pixel Pitch 0.2325 mm x 0.2325 mm Resolution HDMI Max Resolution 3440 x 1440 @ 50 Hz Recommended Resolution 3440 x 1440 @ 50 Hz DP (DisplayPort)

  • Page 32: Hdmi Timing (Video)

    PRoDUCT sPeCIfICaTIon factory support Mode 34UC97 (Preset Mode, HDMI/ DisplayPort/ Thunderbolt PC) 34UC97C (Preset Mode, HDMI/ DisplayPort PC) Horizontal frequency Vertical frequency Preset Mode Polarity (H/V) Remarks (kHz) (Hz) 640 x 480 31.469 59.94 800 x 600 37.879 60.317 1024 x 768 48.363...

  • Page 33: Proper Posture

    PRoPeR PosTURe PRoPeR PosTURe Proper Posture for Using the Monitor Adjust the screen so that you can comfortably look at it at a slight downward angle from your natural eye level. Take a break for approximately 10 minutes every hour to reduce any fatigue caused by prolonged usage.
  • Page 34 This device meets the EMC requirements for home appliances (Class B) and is intended for ENERGY STAR is a set of power-saving guidelines home usage. This device can be used in all issued by the U.S.Environmental Protection regions. Read the owner's manual (CD) carefully Agency (EPA).
