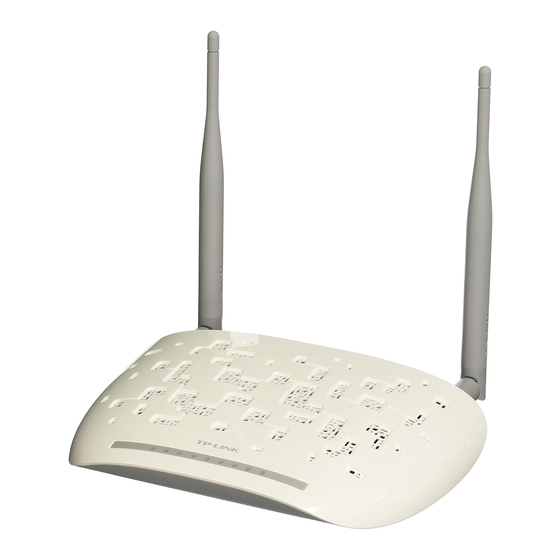

TP-Link TD-W8961ND Quick Installation Manual

Quick Installation Guide
300Mbps Wireless N
ADSL2+ Modem Router
TD-W8961ND / TD-W8961NB / TD-W8961N
* TD-W8961ND is used for demonstration in this QIG.
7106505634 REV4.0.3
Connecting the Hardware
If you don't need the phone service, just skip step 1 and directly connect the
modem router to the phone jack with a phone cable, then follow steps 3 and
4 to complete the hardware connection.
Power adapter
Modem Router
3
Turn on the modem router.
2
Connect the modem router to the
ADSL splitter.
ADSL splitter
Connect to the phone (Optional)
4
Verify that the hardware connection
is correct by checking these LEDs.
Power ADSL
On On
On/Flashing
Notes:
1. The ADSL LED takes about 1 to 2 minutes to stabilize.
2. If the Wireless LED is o , please press the WiFi button
on the rear panel for 2 seconds, then check the LEDs
again in a few seconds.
Phone jack
1
Connect the ADSL splitter
to the phone jack.
Wireless
