CANOPY

Prior to making the holes for the canopy chin
mount, you should mount your canopy to the
mechanics making sure any linkages, servos,
etc...are not touching the canopy. It may be nec-
essary to cut the canopy to avoid binding these
linkages. Also, make sure your muffler is not
touching the canopy as the canopy will melt.
CNM3x6ST
CNM2x5ST

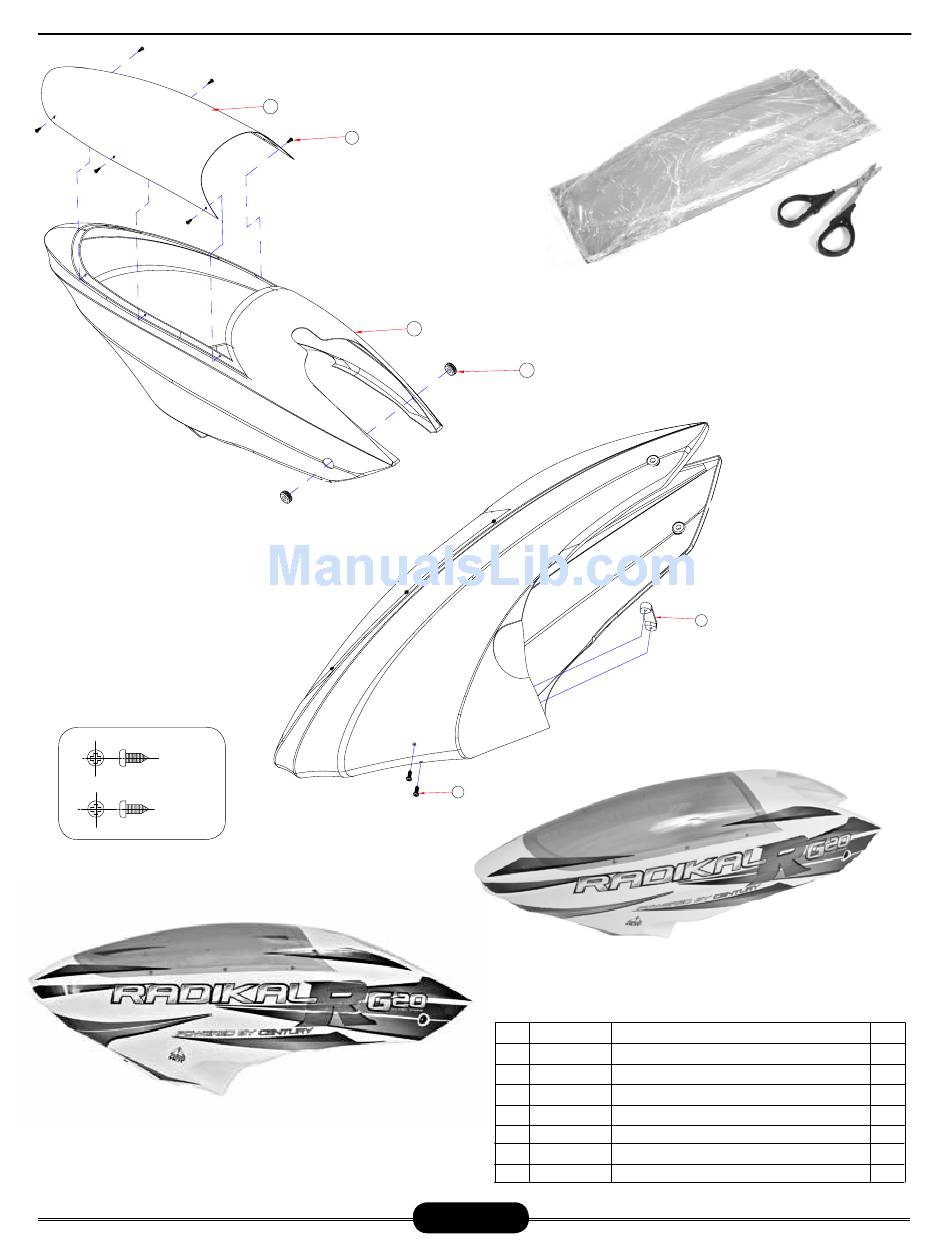

Apply the decals as shown. If you need a better reference,
the box cover is also a good image to follow.
1
2
3
Page 41
It will be necessary to cut the windshield out from the mold.
It is recommended to use curved hobby scissors for this pro-
cess. If the lines are not smooth, you can use 200 grit sand-
paper to sand the edges.
4
5
No.
Part #
HI6133G
1 Tinted Windshield( 透明罩)
CNM2x5ST Screw(螺丝)
2
HI6130G Canopy( 机头)
3
4 CN2210A
Canopy Grommets( 橡皮环)
5 M3x6 Phillips Tapping Screws( 尖尾螺丝)
CNM3x6ST
HI3129C Canopy Mount(机头固定座)
6
HI6131G Decal Sheet
7
Radikal Gasser
When drilling the holes into
the canopy for the grommets,
do not oversize these holes. If
you do this, the grommets will
not stay in place. If you have
6
a hard time mounting the
grommets onto the canopy
standoffs, you can use a dab
of oil.
