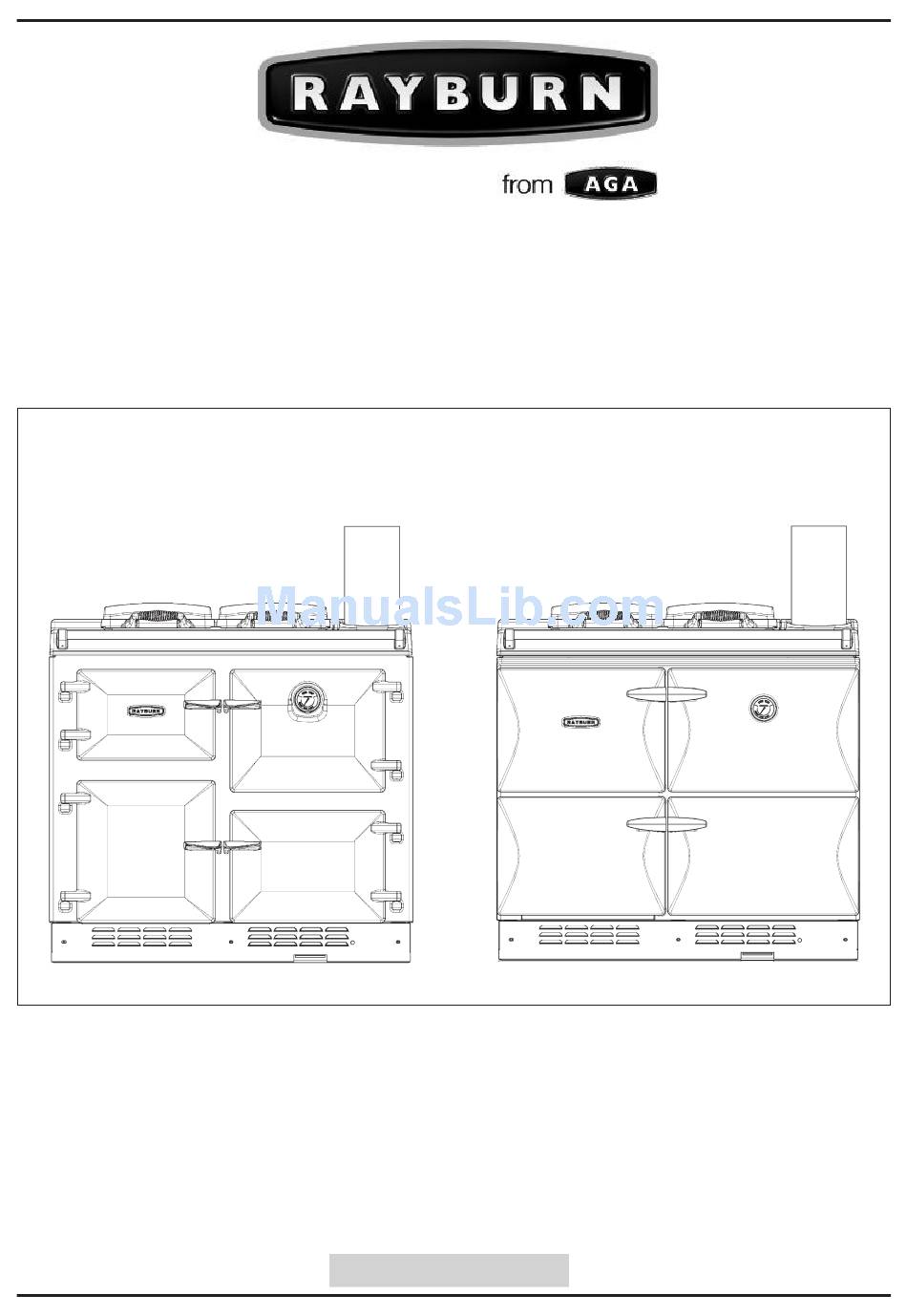

- Page 1 660/680/699K 760/780/799K DESN 515618 DESN 516825 Users Instructions PLEASE READ THESE INSTRUCTIONS BEFORE USING THIS APPLIANCE For use in GB & IE 12/15 EOPI 515602...
-
Page 2: Table Of Contents
PAGE INTRODUCTION USER INFORMATION CONTROLS THE COOKER MAIN OVEN AND HOTPLATE CONTROL THE HOTPLATE THE MAIN OVEN THE LOWER OVEN THE RAYBURN COOKBOOK COOKING CHART (MAIN OVEN) COOKING HINTS MAIN OVEN THERMODIAL LOWER OVEN SOLID SHELF HOTPLATE ACCESSORIES LOCATION OF OVEN GRID SHELVES... -
Page 3: Introduction
INTRODUCTION Thank you for buying a Rayburn appliance. To get the best from it, please read and carefully follow the instructions before using your Rayburn for the first time. Consumer Protection As responsible manufacturers we take care to make sure that our products are designed and constructed to meet the required safety standards when properly installed and used. -
Page 4: User Information
USER INFORMATION Fig. 1B - Rayburn 760/780/799K Fig. 1A - Rayburn 660/680/699K Fig. 1A - Rayburn 660/680/699K... -
Page 5: Controls
CONTROLS THERMODIAL GUIDE APPROX SIMMER 120ºC - 150ºC MARK TEMP BAKE 160ºC - 200ºC ROAST 220ºC - 250ºC 120ºC 140ºC 150ºC 160ºC 180ºC 190ºC 200ºC 220ºC 230ºC 240ºC HIGH 250ºC THE THERMODIAL ON THE MAIN OVEN DOOR IS A GUIDE TO THE CENTRE OVEN TEMPERATURE WHEN COOKING. -
Page 6: The Cooker
200ºC (400ºF). The single hotplate of your Rayburn is graduated in If the Rayburn is left on a high setting for a lengthy time the temperature. Just slide pans to a hotter or a cooler area lower oven may climb to a temperature higher than half that depending on whether boiling or simmering is required. -
Page 7: Cooking Hints
Rayburn cook book for 1. For Baking - no need to bake pastry cases or quiche details. After cooking directly on the hotplate make sure you “blind”... -
Page 8: Location Of Oven Grid Shelves
LOCATION OF OVEN GRID SHELVES DOORS To ensure the correct operation of the oven grid shelves, To open the doors. Twist the handle slightly to disengage ensure that they are inserted as shown. (See section the door catch from the locking spindle and pull door open ‘USER INFORMATION’) - page 4. -
Page 9: The Burner
WHAT IT DOES adjusted by means of the boiler thermostat knob. This The Rayburn programmer is a 7-day 2 event programmer knob can also be used to turn the boiler off. which allows the user to set 2 periods of the day in which... -
Page 10: Setting The Programmer
AUTO/MANUAL CONTROL SETTING THE PROGRAMMER - WEEKLY (2) Fig. 8 DESN 514717 Fig. 6 DESN 514715 1. By pressing the AUTO/MAN button, this allows the 1. The display should alternate between OFF1 and the time of oven to be used with the programmer or used day currently set. -
Page 11: Repeating Days
1. The display should alternate between OFF 2 and the time of SETTING THE MINUTE MINDER day currently set. 2. Adjust using + or - to set the time the second event is to end. 3. Press SET once to confirm. 4. -
Page 12: Enamelled Top And Front Plate
Oven Door Linings Using oven gloves carefully lift off the oven doors (Rayburn 660/680/699K only), lay them on a tea towel to protect the enamel. They can then be cleaned with a cream cleanser or soap impregnated pad. Do not however, immerse the doors in water as they are packed with insulating material which will be damaged by excessive moisture. -
Page 13: Burner Reset
Continued lockouts indicate a burner or oil supply malfunction. The fault should be diagnosed and rectified. Please see that the permanent ventilation provided for the safe and reliable operation of your Rayburn is never blocked off. SERVICING With normal use a boiler/cooker annual flueway clean and burner maintenance should be carried out immediately before the end of the heating season. - Page 16 With AGA Rangemaster’s policy of continuous product improvement, the Company reserves the right to change specifications and make modifications to the appliance described at any time. Manufactured by AGA Rangemaster Station Road Ketley Telford Shropshire TF1 5AQ England Tel: 0845 815 2020 www.rayburn-web.co.uk www.agaliving.com www.agacookshop.co.uk...
