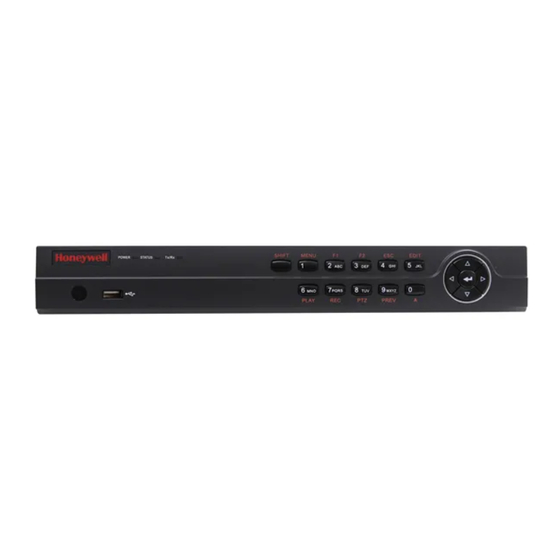

HRG Performance Series DVR
Getting Started Guide
Document 800-13894 – Rev A – 01/2013
Cautions and Warnings
Compliance
Manufacturer's Declaration of Conformance
This document describes the installation and operation procedures for the following
Performance Series Honeywell DVRs:
•
HRG4 4-Channel DVR (HRG4X, HRG41X, HRG45X)
•
HRG8 8-Channel DVR (HRG8X, HRG81X, HRG82X)
•
HRG16 16-Channel DVR (HRG16X, HRG161X, HRG162X, HRG164X)
This document is for system integrators, installers, and end-user operators.
For more detailed information than is contained in this guide, refer to the User Guide,
located on the software CD.
CAUTION
RISK OF ELECTRIC
SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE THE COVER.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
CAUTION
Use only the supplied power supply.
The manufacturer declares that the equipment supplied is compliant with the essential
requirements of the EMC directive 2004/108/EC and Low Voltage Directive 2006/95/EC
conforming to the requirements of standards EN 55022 for emissions, EN 55024 for
immunity, and EN 60950-1 for electrical equipment safety.
THIS SYMBOL INDICATES THAT
DANGEROUS VOLTAGE
CONSTITUTING A RISK OF
ELECTRIC SHOCK IS PRESENT
WITHIN THE UNIT.
THIS SYMBOL INDICATES THAT
IMPORTANT OPERATING AND•
MAINTENANCE INSTRUCTIONS
ACCOMPANY THIS UNIT.
Document 800-13894 – Rev A – 01/2013
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HRG series and is the answer not in the manual?

Questions and answers

Related Manuals for Honeywell HRG series

Summary of Contents for Honeywell HRG series

  • Page 1 HRG Performance Series DVR Getting Started Guide Document 800-13894 – Rev A – 01/2013 This document describes the installation and operation procedures for the following Performance Series Honeywell DVRs: • HRG4 4-Channel DVR (HRG4X, HRG41X, HRG45X) • HRG8 8-Channel DVR (HRG8X, HRG81X, HRG82X) •...

  • Page 2: Safety Instructions

    2 | HRG Performance Series DVR Getting Started Guide Safety Instructions BEFORE OPERATING OR INSTALLING THE UNIT, READ AND FOLLOW ALL INSTRUCTIONS. AFTER INSTALLATION, retain the safety and operating instructions for future reference HEED WARNINGS - Adhere to all warnings on the unit and in the operating instructions. INSTALLATION •...

  • Page 3: Before You Begin Installation

    CD/DVD containing the software and the User Guide Note Other peripheral hardware (owner supplied) will be required for your installation (for example, Honeywell cameras, a VGA monitor, and appropriate cabling). See the User Guide for more information. Installing the DVR When installing the DVR: •...
  • Page 4 4 | HRG Performance Series DVR Getting Started Guide DVR Front Panels 4-Channel HRG Position Control/Indicator Function IR Receiver Sensor for IR Remote Controller. USB Port Connection for a USB mouse or USB flash memory device. Status Indicators POWER Turns green when the HRG DVR is on. STATUS Illuminates when the compound key switches to numeric/letter input mode.
  • Page 5 8-Channel/16-Channel HRG Position Control/Indicator Function IR Receiver Sensor for IR Remote Controller. USB Port Connection for a USB mouse or USB flash memory device. Status Indicators POWER Turns green when the HRG DVR is on. READY Turns green when the device is running normally. STATUS Illuminates when the compound key switches to numeric/letter input mode.
  • Page 6 6 | HRG Performance Series DVR Getting Started Guide DVR Back Panels 4-Channel HRG Position Connection/Switch Function Video In BNC connectors for analog video input. Video Out BNC connectors for video output Audio In RCA connectors for analog audio input. Line In RCA connector for audio input.
  • Page 7 8-Channel HRG 16-Channel HRG Position Connection/Switch Function Main Video Out BNC connectors for analog video input. Local Video Out BNC connectors for local video out Video In BNC connectors for analog video input. Audio In RCA connectors for analog audio input. Line In RCA connector for audio input.

  • Page 8: Connecting The Dvr

    8 | HRG Performance Series DVR Getting Started Guide Connecting the DVR Connecting to Alarm Inputs/Outputs Connect the alarm inputs and outputs as shown below: 4-Channel HRG model shown Connecting to an Non Open/Closed Relay The alarm input requires an open/closed dry contact relay. If the input is not an open/closed dry contact relay, connect as shown below: Connecting Alarm Output Relays The alarm output relay must be used with external DC loads only within a limit of 12 V DC/1 A.

  • Page 9: Hdd Storage Calculation Chart

    Connecting RS-485 Devices to the DVR Disconnect the pluggable block from the RS-485 terminal block. Terminal block Pluggable block Loosen the stop screws from the pluggable block, insert the signal cables into the slots, and then retighten the stop screws. Ensure signal cables are securely fastened. Reconnect the pluggable block to the terminal block.

  • Page 10: Dvr Operation

    The supplied values for storage space used is just for reference. Storage space used is estimated by formulas and may have some deviation from actual value. Download the storage estimator found on the HRG Series DVR product web page. Go to Products on the Honeywell Video Systems web site (www.honeywellvideo.com).
  • Page 11 | 11 Shutting Down the DVR  Enter the Shutdown menu by clicking on Menu ShutDown. Click ShutDown. Click Yes in the pop-up window to confirm that you want to shut down the DVR. Setting Up the DVR with the Setup Wizard Note Please ensure that the DVR has been installed with HDD before access to the Setup Wizard.
  • Page 12 12 | HRG Performance Series DVR Getting Started Guide Using the Setup Wizard for Initial Setup Click Next on the Wizard window. This will take you to the User Permission window. Navigate to the Admin Password input field. Enter the admin password into the Admin Password input field.
  • Page 13 | 13 Click Next. The Record Settings window opens. Click Enter to enter the Record Settings window. 10. Select the Schedule tab. 11. Click Edit. A new recording schedule opens. 12. Check both the Enable Schedule and All Day boxes. This enables the recording schedule and allows it to record continuously all day.
  • Page 14 14 | HRG Performance Series DVR Getting Started Guide Note To copy the schedule to a different channel, select the channel or all under Copy To, then click Copy. 14. Click Next. The Network Settings window opens. 15. Click Enter to configure the network settings. The Network Settings window opens. 16.

  • Page 15: Setting The Date And Time

    | 15 Setting the Date and Time It is extremely important to setup the system date and time to accurately time stamp recordings and events.   Click Menu Settings General to enter the General Settings menu. Enter the correct date and time in the System Time field. Click Apply to save the changes.
  • Page 16 16 | HRG Performance Series DVR Getting Started Guide Configuring PTZ Settings   Click Menu Settings PTZ to enter the PTZ Settings menu. Select, next to the Camera label, the channel where the PTZ camera is installed. Configure the settings for baud rate, date bit, stop bit, parity, flow control, PTZ protocol and address.
  • Page 17 | 17 Controlling PTZ Cameras with the Live View Menu Control Action Directional Controls the movements and directions of Pad/Auto-scan the PTZ. The center button is also used to Buttons start auto-scan of PTZ. Zoom Used to zoom in and out with the PTZ. Focus Used to adjust the focus of the PTZ.
  • Page 18 18 | HRG Performance Series DVR Getting Started Guide Click Play to start playback of all the files that met the specified search criteria. – OR – Click Search to bring up a list of search results. From this list of search results, you can select a file to play back, and then click Play to enter synchronous playback cameras selection.
  • Page 19 | 19 Playing Video from the System Log   Click Menu Maintenance Log Search to enter the Log Search menu. Select Information from the Major Type drop-down menu. Select Start Record or End Record from the Minor Type drop-down menu. Select a Start and End time.
  • Page 20 20 | HRG Performance Series DVR Getting Started Guide Click Export. The Record Backup menu opens. Select the files to export. You can also click the Play button to verify that these files are indeed the ones you would like to export. The size of the currently selected file is displayed in the lower-left corner of the window.
  • Page 21 | 21 Click Start to begin the backup process. Confirming that the Export was Successful When the backup process is complete, you can select the files from your device and click the Play button to verify that they have been exported successfully. Note The Video Player software is automatically copied onto the device to which the recorded files were exported.
  • Page 22 Document 800-13894 – Rev. A – 01/2013 © 2013 Honeywell International Inc. All rights reserved. No part of this publication may be reproduced by any means without written permission from Honeywell. The information in this publication is believed to be accurate in all respects. However, Honeywell cannot assume responsibility for any consequences resulting from the use thereof.
