Operator's Manual

4-Cycle

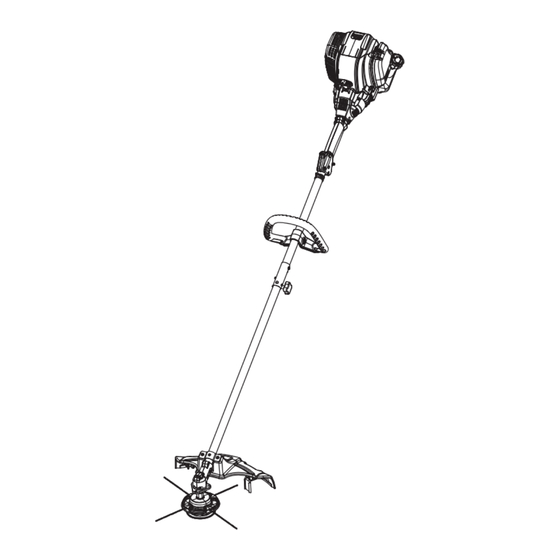

GAS TRIMMER

Model No. 316.79193.1

This unit has a separately sold alternative starting method that many find easier than pulling a

rope. For more information, contact a local Craftsman outlet, call 1-800-4-MY-HOME®, or go to

Sears, Roebuck and Co., Hoffman Estates, IL 60179, U.S.A.

P/N 769-05749 P00

Power Bit Start Optional!

www.craftsman.com

Visit our website: www.craftsman.com

CAUTION: Before using this

product, read this manual and

follow all safety rules and

operating instructions.

• SAFETY

• ASSEMBLY

• OPERATION

• MAINTENANCE

• PARTS LIST

• ESPAÑOL, P. 13

3/10

Page 1 Power Bit Start Optional! This unit has a separately sold alternative starting method that many find easier than pulling a rope. For more information, contact a local Craftsman outlet, call 1-800-4-MY-HOME®, or go to www.craftsman.com Sears, Roebuck and Co., Hoffman Estates, IL 60179, U.S.A.
Page 2 PARTS LIST REPLACEMENT PARTS - MODEL 316.791931 4-CYCLE GAS TRIMMER Item Part No. Description 753-05246 Muffler Screw 753-05784 Spark Plug 753-05247 Insulator Gasket 753-05248 753-05249 Insulator Item Part No. Description 753-05366 Carburetor Gasket 753-06258 Carburetor w/Primer 753-06113 Engine Cover Assembly (includes 2 & 3) 753-04595 Cover Screw 791-181751...
Page 3 PARTS LIST REPLACEMENT PARTS - MODEL 316.791931 4-CYCLE GAS TRIMMER Item Part No. Description 753-04234 Throttle Housing Assembly (includes 2-4) 753-04119 Throttle Trigger 791-182690 Throttle Trigger Spring 791-182405 Switch Assembly 753-05266 Throttle Cable Assembly 753-04236 Upper Drive Shaft Assembly 753-06039 D-Handle Assembly (includes 8) 753-06040 Screw...
