CUMMINS ALLISON JetScan User Manual
Single-pocket currency scanner
Hide thumbs
Also See for JetScan:
- User manual (29 pages) ,
- User manual (28 pages) ,
- Operating manual (10 pages)
Advertisement
Advertisement
Table of Contents
Related Manuals for CUMMINS ALLISON JetScan
Summary of Contents for CUMMINS ALLISON JetScan
- Page 1 JetScan ® Single-Pocket Currency Scanner User Guide...
- Page 2 Hopper Hopper guides Feed roller Feed roller Feeder plate Display Function keys Function keys Power switch and power cord on rear of unit Stacker wheels Stacker sensor Stacker Stacker mirror Display Clear key Cont key Denomination value keys JetScan ®...
-
Page 3: Daily Cleaning Procedures
Daily Cleaning Procedures Daily cleaning of the JetScan ® currency scanner is recommended to ensure maximum productivity and reliability, especially for high-volume applications, as well as for those processing highly circulated (dirty) notes. Follow these steps, which only will take a few minutes. -
Page 4: Daily Cleaning
8 ounces of water. Never use cleaners containing ammonia. Ammonia may remove labels from machine. Never spray cleaners directly on machine components. Turn power OFF Disconnect power cord from the (rocker panel to 0). rear of the JetScan. Remove hopper extension. JetScan ®... - Page 5 These rollers can be rotated in either direction by using fingers. Generally, the top of these rollers should be rotated forward (direction of note flow), so any dirt or stray material is moved out of the unit. Center rubber- drive tire Black feed rollers JetScan ®...
- Page 6 Clean the stacker mirror located directly across from the stacker-sensor lens. Stacker-sensor lens Stacker mirror Replace feeder plate. Insert curved edge of feeder plate first. Gently press down on feeder plate until it snaps into position. Curved edge JetScan ®...
- Page 7 Clean exterior surfaces as necessary with a Simple Green Safety Towel. Replace hopper extension. Carefully reconnect power cord. Turn power ON (rocker panel to I). Perform a test run with some notes. JetScan ®...
- Page 8 (-) direction as indicated by the numbers on the front of the thickness dial. D I S P L A Y JetScan has identified a note that is different than those it has been processing while using sort mode.
- Page 9 Rotate in the negative (-) direction as indicated by the numbers on the front of the thickness dial. D I S P L A Y JetScan has identified a note that is incorrectly faced. Users should either: • Face the note, replace it in the bottom stacker, and press the appropriate...

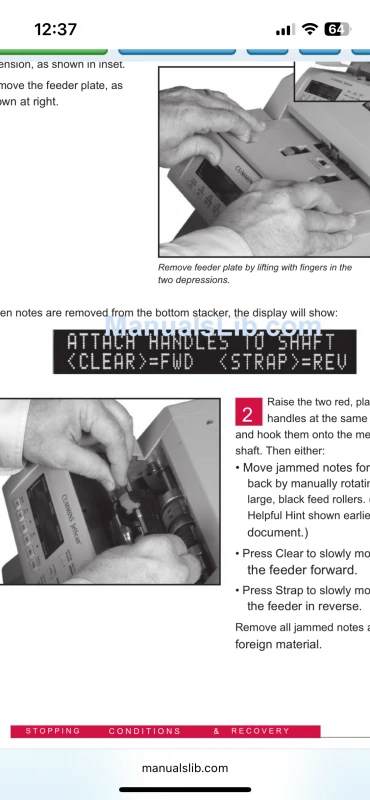

- Page 10 • Press Strap to slowly move the feeder in reverse. Remove all jammed notes and foreign material. JetScan ® S T O P P I N G C O N D I T I O N S & R E C O V E R Y...
- Page 11 Press Cont. Rerun all notes that were in the top hop- per and bottom stacker at the time of the jam. JetScan ® S T O P P I N G C O N D I T I O N S &...
- Page 12 • NO CALL*** D I S P L A Y JetScan cannot recognize the denomination of a note and has stopped. This “NO CALL” note is the top note in the bottom stacker. This note has not been included in the count.
- Page 13 The number of notes in the bottom stacker has reached the preset strap limit. Remove the notes from the bottom stacker. JetScan automatically will continue if there are additional notes remaining in the top hopper. JetScan ® S T O P P I N G C O N D I T I O N S &...
- Page 14 D I S P L A Y JetScan sensors have detected a possible counterfeit note. JetScan has stopped with this note as the top note in the bottom stacker. This note has not been included in the count.
- Page 15 D I S P L A Y JetScan sensors have detected a possible counterfeit note. JetScan has stopped with this note as the top note in the bottom stacker. This note has not been included in the count.
- Page 16 Higher probability super note, but commonly of a super note identifies poor-quality counterfeit notes JetScan ® S T O P P I N G C O N D I T I O N S & R E C O V E R Y...
- Page 17 RANgE” or “UNRELiABLE”). Press Cont to continue operation. If the machine is not equipped with ultraviolet (UV), be sure to turn the feature off in SETUP (see JetScan operating instructions). If the message continues to appear, contact a local Cummins Allison service representative.
- Page 18 Cleaning The following items are Supplies available for purchase through Cummins Allison Desktop Currency Equipment Cleaning Kit 406-1000-01 The kit contains: • Two stick erasers • 50 Simple Green Safety Towels • 20 microfiber towels • User guides Items Sold Separately •...
- Page 19 Notes JetScan ®...
- Page 20 All trademarks remain the property of their respective owners. Information is subject to correction or change without prior notice. This manual contains proprietary information of Cummins Allison. It is intended solely for the information and use of parties authorized by Cummins Allison to maintain the equipment described herein.
