Summary of Contents for HP Compaq L2206tm

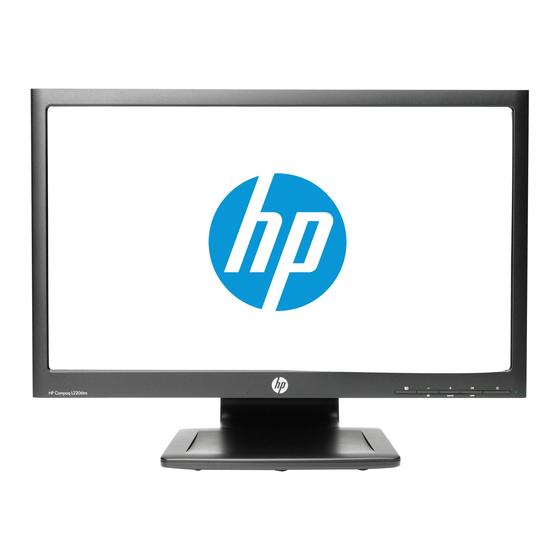

- Page 1 HP Compaq L2206tm and L2206tmp LED Backlit Touch Monitors User Guide...
- Page 2 Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
-
Page 3: About This Guide
About this guide This guide provides information on setting up the monitor, operating the touch screen, troubleshooting, and technical specifications. WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life. CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of information. - Page 4 About this guide...
-
Page 5: Table Of Contents
Table of contents 1 Product features ..............................1 HP LCD Touch Monitors ........................1 2 Safety and maintenance guidelines ........................3 Important safety information ......................... 3 Maintenance guidelines ........................4 Cleaning the monitor ......................4 Shipping the monitor ......................4 3 Setting up the monitor ............................ - Page 6 Appendix A Technical specifications ........................24 L2206tm/L2206tmp ..........................24 Recognizing preset display resolutions ....................26 L2206tm/L2206tmp ......................26 Entering user modes .......................... 27 Energy saver feature .......................... 27 Appendix B Support and troubleshooting ......................28 Solving common problems ......................... 28 Button lockouts ...........................
-
Page 7: Product Features
Product features HP LCD Touch Monitors The LCD (liquid crystal display) monitors have an active matrix, thin-film transistor (TFT) panel. The monitor models and features include: L2206tm model, 54.6 cm (21.5-inch) diagonal viewable area display with 1920 x 1080 resolution, ●... - Page 8 For safety and regulatory information, refer to the disc, if one is included, or in your documentation kit. To locate updates to the user guide for your product, go to http://www.hp.com/support, and select your country. Select Drivers & Downloads, and then follow the on-screen instructions.
-
Page 9: Safety And Maintenance Guidelines
Damage Replacement Policy so you can replace the equipment, if surge protection fails. Use the appropriate and correctly sized furniture designed to properly support your HP LCD monitor. WARNING! LCD monitors that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, or carts may fall over and cause personal injury. -
Page 10: Maintenance Guidelines
If the monitor is not operating properly or has been dropped or damaged, contact an authorized HP dealer, reseller, or service provider. Use only a power source and connection appropriate for this monitor, as indicated on the label/ ●... -
Page 11: Setting Up The Monitor
Setting up the monitor To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other attached devices, and then follow the instructions below. Unfolding the monitor pedestal base NOTE: The L2206tm panel head model does not ship with a stand. Lift the monitor from its box and place it face down on a flat surface. -
Page 12: Rear Components
Rear components Figure 3-2 Rear components Component Description AC power connector Connects the AC power cable to the monitor. DisplayPort Connects the DisplayPort cable to the monitor. VGA connector Connects the VGA cable to the monitor. DVI-D connector Connects the DVI-D cable to the monitor. Audio connector Connects the audio cable to the monitor. -
Page 13: Connecting The Cables
Connecting the cables Place the monitor in a convenient, well-ventilated location near the computer. Remove the cable management clip from the pedestal by pulling outward on the two sides of the clip (1) and lifting the clip off the pedestal (2). Figure 3-3 Removing the cable management clip NOTE:... - Page 14 Connect one end of the power cord to the AC power connector on the back of the monitor, and connect the other end to an electrical wall outlet. Figure 3-4 Connecting the cables WARNING! To reduce the risk of electric shock or damage to the equipment: Do not disable the power cord grounding plug.
-
Page 15: Adjusting The Monitor
Adjusting the monitor NOTE: Your monitor model may look different than the model in the following illustrations. Tilt the monitor's panel forward or backward to set it to a comfortable eye level. Figure 3-6 Tilting the monitor Adjust the monitor’s height to a comfortable position for your individual workstation. The monitor’s top bezel edge should not exceed a height that is parallel to your eye height. - Page 16 Pivoting the monitor NOTE: To view information on the screen in portrait mode, you can install the HP Display Assistant software included on the software and documentation disc. The position of the OSD menu can also be rotated to portrait mode. To rotate the OSD menu, access the OSD menu by...
-
Page 17: Front Components
Turns the monitor on or off. Power LED Blue = Fully powered. Amber = Sleep mode. Flashing Amber = Sleep timer mode. NOTE: To view an OSD menu simulator, visit the HP Customer Self Repair Services Media Library at http://www.hp.com/go/sml. Front components... -
Page 18: Turning On The Monitor
Image retention is a condition that may occur on all LCD screens. Monitors with a “burned-in image” are not covered under the HP warranty. NOTE: If pressing the power button has no effect, the Power Button Lockout feature may be enabled. -
Page 19: Connecting Usb Devices
Connecting USB devices USB connectors are used to connect devices such as a digital camera, USB keyboard, or USB mouse. Two USB connectors are located on the side panel of the monitor. NOTE: You must connect the USB hub cable from the monitor to the computer to enable the USB 2.0 ports on the monitor. -
Page 20: Removing The Monitor Pedestal Base
Removing the monitor pedestal base NOTE: The L2206tm panel head model does not ship with a stand. You can remove the monitor panel from the pedestal base to install the panel on a wall, swing arm, or other mounting fixture. CAUTION: Before beginning to disassemble the monitor, be sure the monitor is turned off and the power and signal cables are both disconnected. -
Page 21: Mounting The Monitor
Mounting the monitor The monitor panel can be attached to a wall, swing arm, or other mounting fixture. NOTE: This apparatus is intended to be supported by a UL or CSA listed wall mount bracket. Remove the monitor panel from the pedestal base. Refer to Removing the monitor pedestal base on page CAUTION:... -
Page 22: Locating The Rating Labels
Figure 3-14 Locating the rating labels Installing a cable lock You can secure the monitor to a fixed object with an optional cable lock available from HP. Figure 3-15 Installing a cable lock Chapter 3 Setting up the monitor... -
Page 23: Operating The Touch Screen
Operating the touch screen Installing the touch software Microsoft Windows 7/Vista/XP (plug and play) NOTE: Refer to Connecting the cables on page 7 for instructions on connecting the USB cable. When you connect the USB cable between the monitor and a computer running Windows 7, Windows Vista, or Windows XP, the touch driver software will automatically install. - Page 24 Windows XP—Select Start > Control Panel > System, and then select the Hardware tab. Select ● the Device Manager button. If the driver is installed correctly, two HID-compliant device entries and one USB Human Interface Device entry will appear under the Human Interface Devices category.
-
Page 25: Using The Touch Function
Using the touch function NOTE: Before using the touch function, make sure the USB cable is connected and the Windows operating system is started. NOTE: When the touch function is active, make sure there are no foreign objects in the areas encircled in the figure below. - Page 26 Select the Tablet PC Settings control panel. NOTE: The Tablet PC Settings control panel will only appear after Microsoft Windows 7 recognizes a connected touch monitor. On the Display tab in the Tablet PC Settings, select the name of the first monitor you want to calibrate from the drop-down menu.
- Page 27 Select the Calibrate… button. Figure 4-4 Calibrate the display Repeat steps 5 and 6 for the second monitor. NOTE: If you have two monitors that are the same model, be sure to note which model is calibrated first because both will appear with identical names. Using the touch function...
-
Page 28: Tips And Troubleshooting
For more difficult cleaning situations, use the cleaning solution and cloth that ship with monitor. CAUTION: Spray the HP cleaner fluid onto cloth and use the damp cloth to gently wipe the screen surface and front bezel inside edge. Never spray the cleaner directly on the screen surface. It may run behind the bezel and damage electronics. -
Page 29: Touch Screen Troubleshooting
Touch screen troubleshooting NOTE: For general troubleshooting information, refer to Support and troubleshooting on page Table 4-2 Touch screen troubleshooting Problem Solution Computer does not recover from Sleep mode when the touch Sleep mode recovery is not supported by the touch screen. screen is touched. -
Page 30: Appendix A Technical Specifications
Technical specifications NOTE: All specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower. L2206tm/L2206tmp Table A-1 L2206tm/L2206tmp specifications Display 54.61 cm widescreen 21.5 inches widescreen Type TFT LCD Viewable image size 54.61 cm diagonal... - Page 31 Table A-1 L2206tm/L2206tmp specifications (continued) Maximum graphic resolution 1920 x 1080 (60 Hz) analog input 1920 x 1080 (60 Hz) digital input Optimum graphic resolution 1920 x 1080 (60 Hz) analog input 1920 x 1080 (60 Hz) digital input Text mode 720 x 400 Dot pitch 0.248 (H) x 0.248 (W) mm...
-
Page 32: Recognizing Preset Display Resolutions
Recognizing preset display resolutions The display resolutions listed below are the most commonly used modes and are set as factory defaults. This monitor automatically recognizes these preset modes and they will appear properly sized and centered on the screen. L2206tm/L2206tmp Table A-2 Factory preset modes Preset... -
Page 33: Entering User Modes
Entering user modes The video controller signal may occasionally call for a mode that is not preset if: You are not using a standard graphics adapter. ● You are not using a preset mode. ● It this occurs, you may need to readjust the parameters of the monitor screen by using the on-screen display. -
Page 34: Appendix B Support And Troubleshooting
Support and troubleshooting Solving common problems The following table lists possible problems, the possible cause of each problem, and the recommended solutions. Problem Possible Cause Solution Screen is blank or video is Power cord is disconnected. Connect the power cord. flashing. -
Page 35: Button Lockouts
OSD is not active. Product support For additional information on using your monitor, go to http://www.hp.com/support. Select your country or region, select Troubleshooting, and then enter your model in the search window and click the Go button. -
Page 36: Appendix C Lcd Monitor Quality And Pixel Policy
This is common to all LCD displays used in products supplied by all vendors and is not specific to the HP LCD. These imperfections are caused by one or more defective pixels or sub-pixels.
