Operate the device only after having become familiar with its functions. Do not permit operation by persons

not qualified for operating the device. Most damages are the result of unprofessional operation!

Please use the original packaging if the device is to be transported.

Please consider that unauthorized modifications on the device are forbidden due to safety reasons!

Never remove the serial barcode from the device as this would make the guarantee void.

If this device will be operated in any way different to the one described in this manual, the product may suffer

damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-

circuit, burns, electric shock, lamp explosion, crash etc.

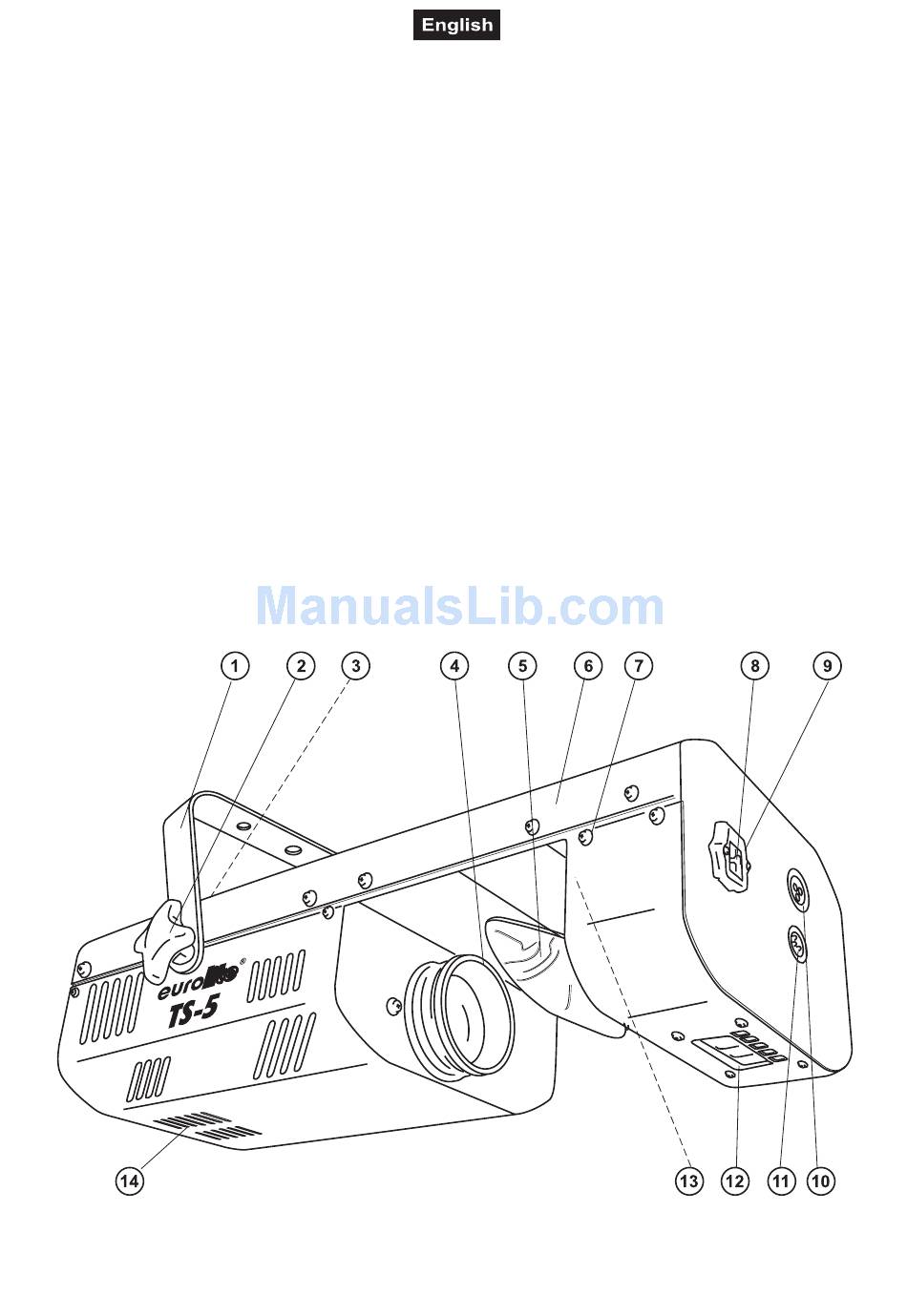

DESCRIPTION OF THE DEVICE

Compact scanner

Colour-wheel with 11 dichroic colour-filtres and white • Rainbow-effect with adjustable speed in both

directions • Gobo-wheel with 9 gobos and open • With gobo-shake function • Manual focus • Strobe-effect

with 1-5 flashes per second via gobo-wheel • Electronic dimmer • DMX-control via every standard DMX-

controller • 5 DMX-control-channels required • Sound-controlled via built-in microphone • Microphone-

sensitivity adjustable via rotary-control • Sound-controlled colour-wheel, gobowheel and strobe via DMX

adjustable • Master/Slave-function • EHJ 24 V/250 W G-6.35 lamp included in the delivery
