Terminal assignments and wiring diagrams are also listed under the
slide-in card on the front of the FP-QUAD-510 module.
Signal
+A
–A
+B
–B
+I
–I
Vsup
COM

Status Indicators

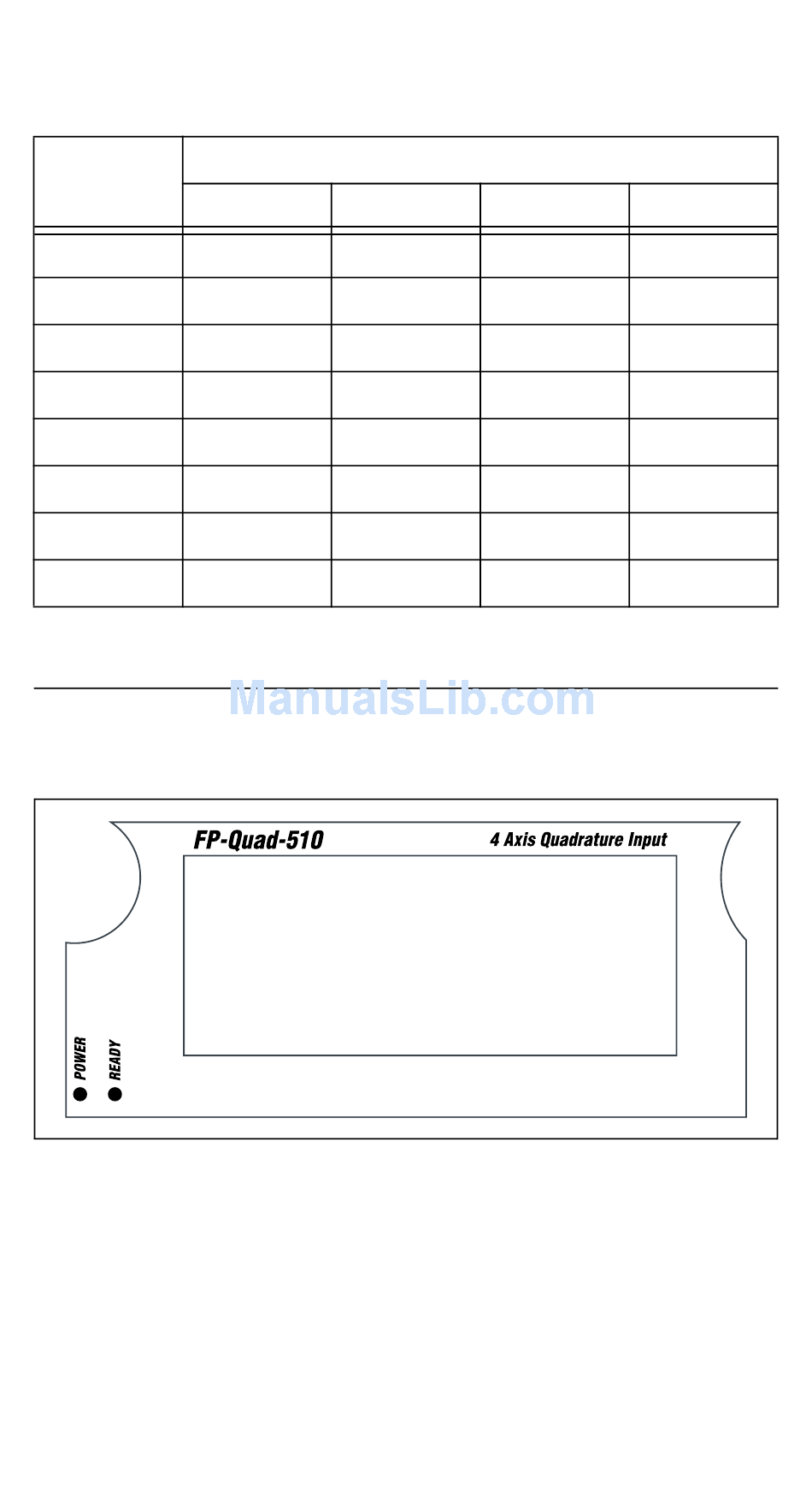

Figure 5 shows the module label and status indicators. Remove the
slide-in card to see wiring diagrams for the input signals.
After you insert the module into a terminal base (and apply power),
the green POWER indicator lights and the FP-QUAD-510 informs
the network module of its presence. When the network module
recognizes the FP-QUAD-510, it sends initial configuration
information to the FP-QUAD-510. After receiving this initial
information, the green READY indicator lights and the
FP-QUAD-510 is in its normal operating mode.
© National Instruments Corp.
Table 1. Terminal Assignments
Axis 0 Axis 1
1
17
2
18
3
19
4
20
Figure 5. Status Indicators
Terminal Numbers
Axis 2
5
21
6
22
7
23
8
24
5
Axis 3
9 13
25 29
10 14
26 30
11 15
27 31
12 16
28 32
FP-QUAD-510
