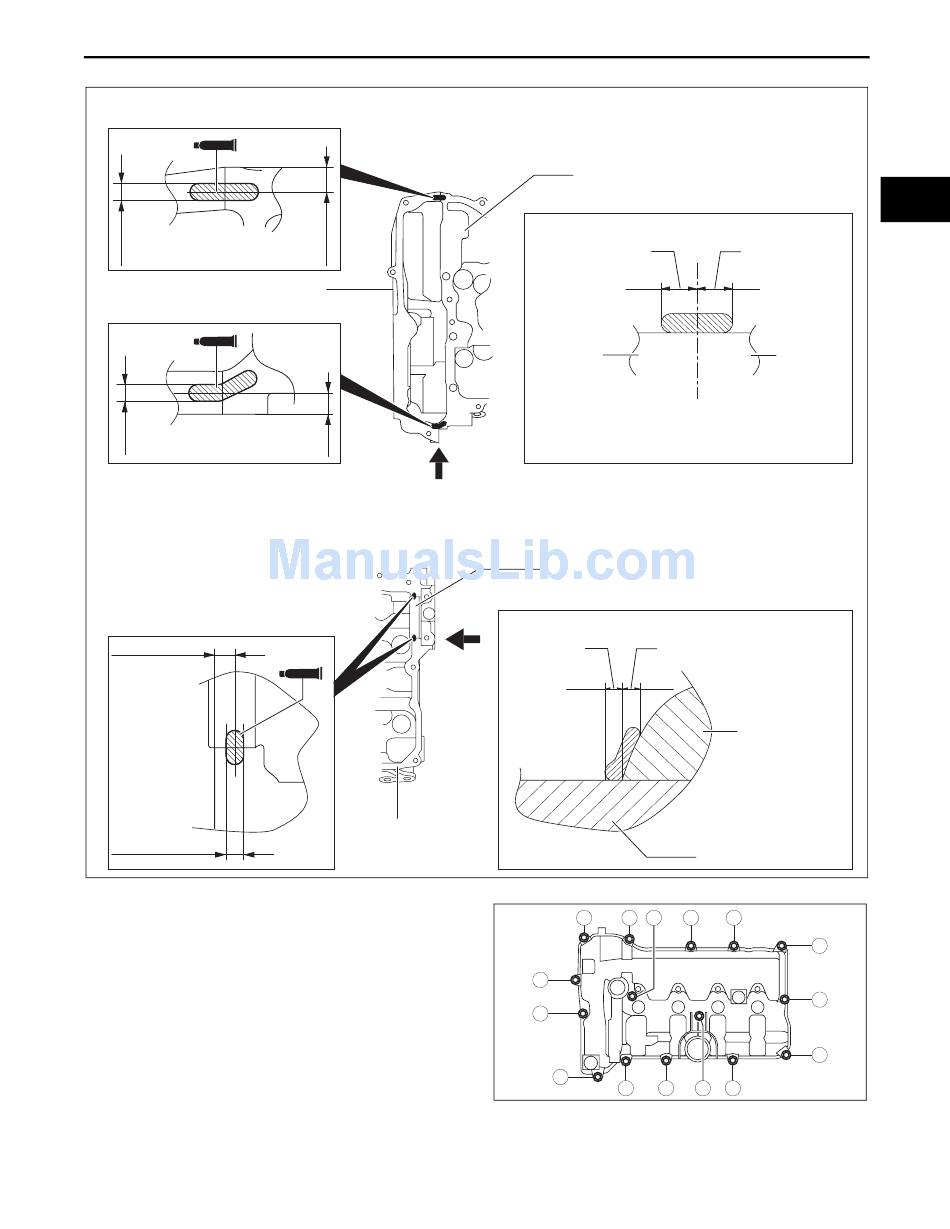

2. Apply silicone sealant to the areas shown in the figure.
ENGINE FRONT SIDE
SEALANT SEALANT
2—6 mm 4—5 mm
{0.1—0.2 in} {0.16—0.19 in}
ENGINE FRONT COVER
SEALANT SEALANT
2—6 mm 4—5 mm
{0.1—0.2 in} {0.16—0.19 in}
ENGINE REAR SIDE
4—5 mm
{0.16—0.19 in}
2—6 mm
{0.1—0.2 in}
3. Tighten the cylinder head cover bolts in the order
shown in the figure.

Tightening torque

4.5—7.0 N·m {46—71 kgf·cm, 40—61 in·lbf}
End Of Sie
MECHANICAL
A
B
SEALANT SEALANT
CYLINDER HEAD
CYLINDER HEAD
VIEW FROM A
3—13 mm
{0.2—0.5 in}
ENGINE
FRONT
COVER
ENGINE FRONT
COVER MATCHING
SURFACE
EXHAUST-SIDE REAR
CAMSHAFT CAP
VIEW FROM B
2—6 mm 2—6 mm
{0.1—0.2 in} {0.1—0.2 in}
8 7 3
15
14
13
12
6 2
3—13 mm
{0.2—0.5 in}
CYLINDER
HEAD
EXHAUST-SIDE
REAR CAMSHAFT
CAP
CYLINDER HEAD
bpe2ue00000082
4
9
10
11
1 5
am3uuw00008879
