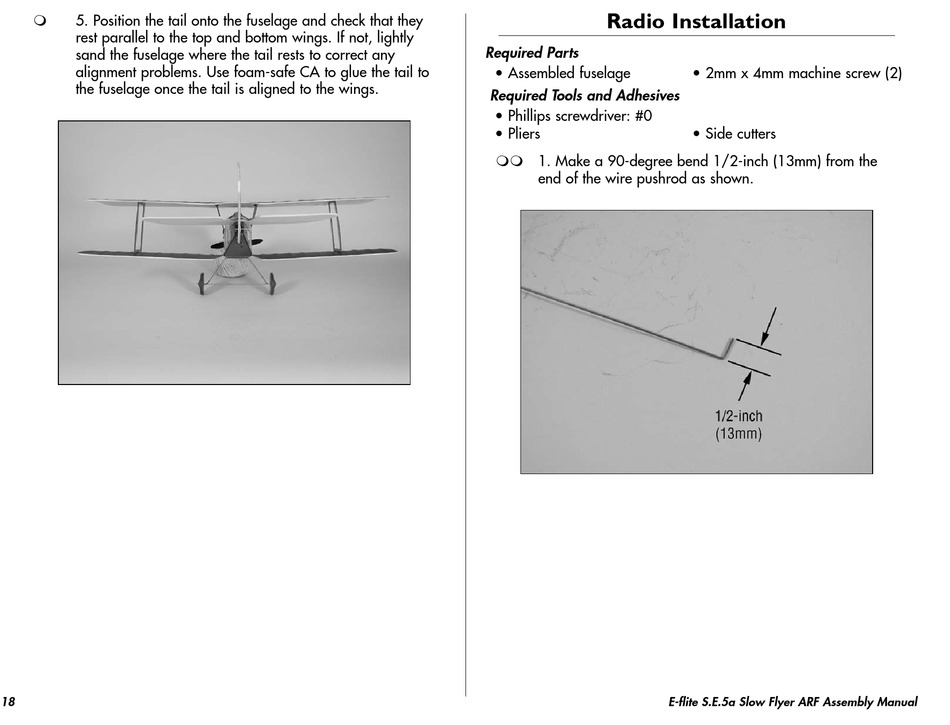

Radio Installation - E-FLITE S.E.5a Slow Flyer ARF EFL1925 Assembly Manual

5. Position the tail onto the fuselage and check that they

rest parallel to the top and bottom wings. If not, lightly
sand the fuselage where the tail rests to correct any
alignment problems. Use foam-safe CA to glue the tail to
the fuselage once the tail is aligned to the wings.
18

Radio Installation

Required Parts
• Assembled fuselage
Required Tools and Adhesives
• Phillips screwdriver: #0
• Pliers
 1. Make a 90-degree bend 1/2-inch (13mm) from the
end of the wire pushrod as shown.
• 2mm x 4mm machine screw (2)
• Side cutters
E-flite S.E.5a Slow Flyer ARF Assembly Manual
