- Page 1 4600 CAN/PLIP INSTALLATION MANUAL...
-
Page 2: Table Of Contents
5.INSTALLATION PROCEDURE (system’s component locations, electrical connections) .........5 6.ACTIVE FUNCTIONALITIES (descriptions) .....................8 - ELECTRIC DIAGRAMS 7.PROGRAMMABLE FUNCTIONS (descriptions) ....................18 8. HOW TO PROGRAM FUNCTIONALITIES, COBRA REMOTE CONTROLS AND DRIVER CARDS SELF LEARNING PROCEDURE ..........................20 9. FUNCTIONAL TEST ............................21 10. CAN INDEX MANUAL SELECTION ......................21 11. -
Page 3: Kit Contents
It can be armed/disarmed by the vehicle original remote control, with the Cobra one or with the Driver Card (if provided). This manual contains all information required to fi t the system on 12V battery vehicles with the negative pole connected to the vehicle body. -
Page 4: System's Configuration
Wait until the programming confi rmation window appears. Additional software installation and tool usage details are available on the specifi c manual supplied in the Data Linker kit or in the Cobra web site, professional area, Application manuals. INSTALLATION MANUAL 4600 CAN/PLIP... -
Page 5: How To Prepare Pin Code Card
It must be fi tted on the dashboard with its LED in a in sight position. The pushbutton should be easily accessible by the driver. Bonnet pushbutton. The installation of the supplied pushbutton is required if the vehicle is not yet equipped with the original one. The specifi c vehicle CAN/PLIP installation sheet supplies this info. INSTALLATION MANUAL 4600 CAN/PLIP... -
Page 6: Electric Diagrams
Pay attention when joining two or more wires. Avoid to make “quick connections” that do not ensure a good quality. Also make sure that the wires of the Cobra 4600 are routed so that they follow the original wiring of the vehicle to which they should be joined with the raps. -
Page 7: Electric Diagrams
J-22 Do not connect. J-23 Negative input for additional modules: to be used as a triggering input for the connection of compatible Cobra modules. J-24 Do not connect. J-25 CDL lock negative output: low power control signal to lock central door locking. Activated by the Cobra remote control , if provided (see electrical diagram F). -
Page 8: Active Functionalities (Descriptions)
10 s after it has been armed. Make the functional test of the system after is has been confi gured. J-23 Negative input for additional modules: to be used as a triggering input for the connection of compatible Cobra modules. - Page 9 46XX Art. (NO WIRELESS SIREN) See the vehicle fitting instructions or the CAN/PLIP J 26 connector pin out START +50 GREEN max 20A (1 sec.) GREEN 6A cont. BLACK WHITE SIREN HORN OUTPUT BLUE BLACK YELLOW-BLUE YELLOW-BLUE O R A N G E - W H I T E PAGER OUTPUT BROWN SENSOR NEGATIVE...
- Page 10 See the vehicle fitting instructions or the 46XX Art. (WIRELESS SIREN) CAN/PLIP J 26 connector pin out Antenna 15 A See paragraph 11 BLUE BLUE BLACK YELLOW-BLUE COBRA BUS VIOLET ORANGE CAN - L VIOLET ORANGE CAN - H START +50 GREEN BLACK max 20A (1 sec.)
- Page 11 WHITE wire J 17 WHITE wire J17 U.S. U.S. - / + BLACK 30 86 85 RED ( TX) - / + Antenna WHITE BLACK (RX) U.S. sensors, led panel and antenna Original relay controlled by a negative signal. Install the jumper wire (see the catalogue) connections.
-
Page 13: Alarm Condition
US module connected to the Cobra Bus. 10 fl ashes Module connected to the Cobra Bus. 11 fl ashes Immobilizer 1 module connected to the Cobra Bus. 12 fl ashes Immobilizer 2 module connected to the Cobra Bus. 13 fl ashes Keyboard module connected to the Cobra Bus. -
Page 14: Programmable Functions (Descriptions)
7.6 - Manual or automatic comfort window closing with Cobra remote control. This is a native function of the vehicle, so at fi rst check if it is available. By keeping pressed the Cobra remote control pushbutton “A” you can close the windows from a distance in manual mode. If not you can ask your installer to fi t an additional module which allows the closing of windows by pressing and releasing the button “A”... - Page 15 - A fl ash of the direction lights confi rms the activation. Deactivation - Lock then unlock the vehicle with the remote control. - A fl ash of the direction lights and an audible signal confi rm the deactivation. INSTALLATION MANUAL 4600 CAN/PLIP...
-
Page 16: How To Program Functionalities, Cobra Remote Controls And Driver Cards Self
8 - HOW TO PROGRAM FUNCTIONALITIES, COBRA REMOTE CONTROLS AND DRIVER CARDS SELF LEARNING PROCEDURE. IMPORTANT: (only for PLIP applications and just after the power supply connection or when the battery has been disconnected and reconnected). Before entering in the functions programming procedure, arm the system, wait until the emergency panel LED starts fl... -
Page 17: Functional Test
IMPORTANT:don’t perform the procedure on two different vehicles parked closed each other. Their sirens could be memorized in one main unit only. INSTALLATION MANUAL 4600 CAN/PLIP... -
Page 18: Documents Handover
Loudspeaker sound pressure level >115 dB @ 1m Siren sound pressure level >114 dB @ 1m - Central dimensions 91x69x35 mm - Siren dimensions 113x79x45 mm Trasmitter battery / Cobra Driver Card Lithium Battery 3 V CR2032 INSTALLATION MANUAL 4600 CAN/PLIP... - Page 19 To ensure consumers insurance cover is not adversely effected it is highly recommended that all installations are carried out by Thatcham recognised installers and that all installs are registered providing the vehicle owner with a Thatcham recognition of installation for presentation to insurers. INSTALLATION MANUAL 4600 CAN/PLIP...
- Page 20 Cobra Automotive Technologies via Astico 41 - 21100 VARESE - ITALY www.cobra-at.com 2.32 06DE3325B - 10/11...
Need help?
Do you have a question about the 4600 CAN and is the answer not in the manual?
Questions and answers

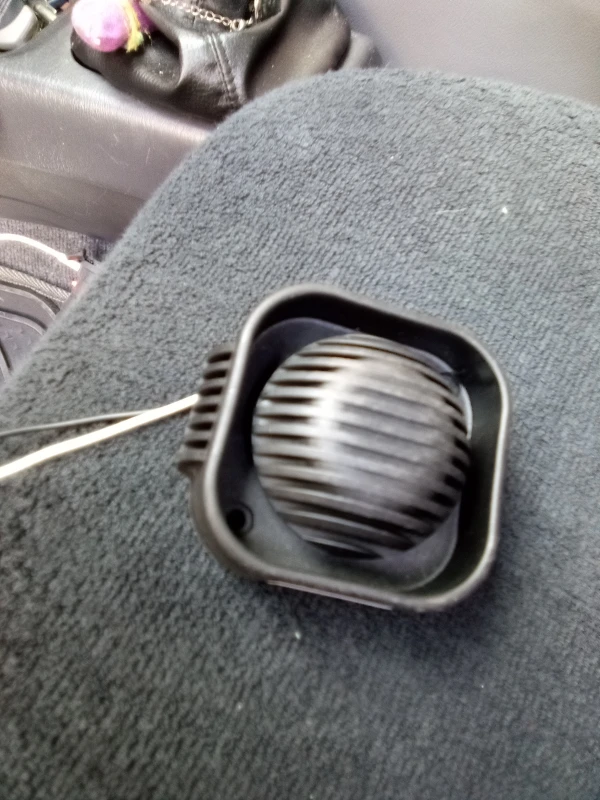

Παρακαλώ όπως με ενημερώσετε,ποιο καλώδιο είναι η έξοδος για τη σειρήνα
