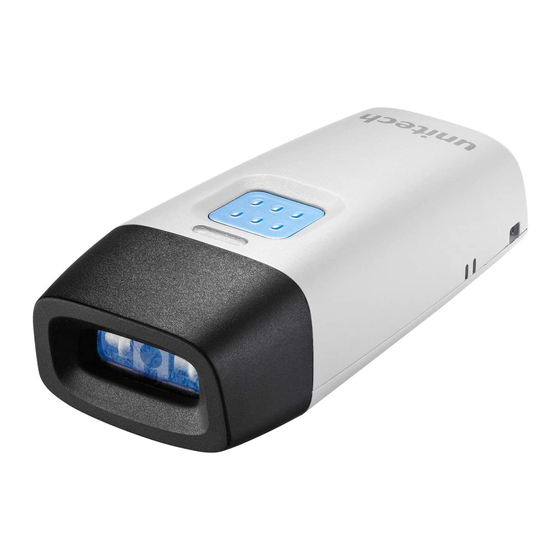

Wireless CCD Scanner
- MS912 -
User's Manual
Version 1.0
Unitech electronics co., ltd.
5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
Tel: + 886 2 89121122
Fax: +886 2 89121810
website: www.ute.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS912 and is the answer not in the manual?

Questions and answers

Related Manuals for Unitech MS912

Summary of Contents for Unitech MS912

  • Page 1 Wireless CCD Scanner - MS912 - User’s Manual Version 1.0 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 2 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 3: Table Of Contents

    Smartphone/ Tablet PC Connection (iOS) .............. 60 Appendix C ..........................65 Worldwide Support ........................ 65 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810...

  • Page 4: Chapter 1

    MS912 scanner ensures the productivity and mobility of your business application. The MS912 is the smallest wireless scanners in the market and is compatible with all major OS on the nowadays popular smartphones and tablet PCs via both HID and SPP profiles.

  • Page 5: Package Contents

    Package Contents Please make sure the following contents are in the MS912 box. If something is missing or damaged, please contact your Unitech representative. MS912 scanner Product Resource CD Quick Guide USB Charging Cable Hand Strap Quick Connection Card Note: The scanner’s default power off (idle mode) time is 3 minutes.

  • Page 6: Chapter 2

    Port Profile (SPP) Mode” or the instruction of “Human Interface Device (HID) Mode”. Note: Android 2.x devices can work with MS912 in the SPP mode ONLY. The SPP mode or/and the HID mode are not definitely compatible with each version of Android OS, and thus depends on the Android-based hardware specifications defined by the Android device manufacturers.
  • Page 7 Once you have entered the pin code on the Host device, you need to set up the pin code on the MS912 to match. a. With the MS912, scan the Pincode Start barcode below. Pincode Start b. Refer to the barcode table below, and scan the same numbers that you used as the pin code on your Host device.
  • Page 8 Note. To disconnect the scanner from the host or to switch the wireless profile from one to another, please scan the [Disconnect] barcode: Disconnect After scanning the [Disconnect] barcode, the MS912 will emit 3 beeps. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)

  • Page 9: Connecting Via Human Interface Device (Hid) Mode (Non-Pincode)

    Bluetooth module of your host 5. Click Add a device to search for a wireless scanner nearby around. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 10 When it connects, click Next. 8. Click Pair without using a code. Then, click Next. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810...

  • Page 11: Connecting Via Serial Port Profile (Spp) Mode

    Scan the [SPP] barcode below: The scanner will emit several beeps. Conduct a search for the MS912 on your host. Select “Wireless Scanner” from discovered device list and the scanner will beep twice. Enter pincode, which is “1234” by default.

  • Page 12: Smartphone/ Tablet Pc Connection (Ios)

    PC via HID mode. To get the detailed example of HID setting, refer to Appendix 2. Set Bluetooth Device ID To customize your own Bluetooth device (MS912) name for the wireless scanner, please follow below steps: STEP 1 Unitech electronics co., ltd.

  • Page 13: Power Management

    10 Minute 5 Minute Scanner LED & Beeper Indication Scanner LED & Beeper Indication Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810...

  • Page 14: Charging The Battery

    USB port on the host PC. Please charge the scanner for at least 2 hours (until the LED indicator turns off). Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 15 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 16: Chapter 3

    5000 reads/charge Environmental ESD Protection Functional after 4KV Contact and 8KV Air Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 17 Regulation Approvals FCC Class B, CE Accessories Mini USB cable, Hand Strap, Tools CD Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810...

  • Page 18: Chapter 4

    Locate the appropriate feature setting listed in the following pages. Set feature values by scanning single barcodes or short barcode sequences. The MS912 will beep to confirm a successful scan and will store the new setting in the scanner’s memory.
  • Page 19 STEP 5: Scan: " $" twice from Full ASCII Chart of Appendix A. STEP 6: Scan: POSTAMBLE. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 20 1 to 9 subjects the decoded output a higher standard of accuracy. The higher the number, the greater the accuracy. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
  • Page 21 Dump Settings EXAMPLE: PROJECT ASSIGNMENTS: Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810...
  • Page 22 Scan CONTINUOUS AUTO OFF. (GROUP 2) All parameters will be converted to alphanumeric characters and shown on the monitor. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 23 The following label dumps the settings to a PC/AT regardless of the type of device that has been chosen on the scanner. Dump Settings on PC_AT Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 24 All characters in dumped strings are uppercase. If you see lowercase characters in dumped strings, change them to uppercase. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 25 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 26: Chapter 5

    *Note: Batch Mode will not function when Memory Mode is enabled, or no connection is made beforehand. The following pages only apply to the memory version mini wireless scanner, MS912M (P/N: MS912-5UBB00-SG), which can be easily distinguished by an “M” mark on the rear of the scanner. Unitech electronics co., ltd.
  • Page 27 OUTPUT DATA . R003$ OUTPUT DATA Data Output Method . R014$ WIRELESS Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 28 1. Scan [Field Separator] 2. Scan [ ; ] from the full ASCII table. 3. Scan [Field Separator] Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 29 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 30 3 hours before use. DATE FORMAT . R008$ DATE FORMAT Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 31 1. Scan [Time Format] 2. Scan [0], [2] on page 39. 3. Scan [Time Format] Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810...

  • Page 32: Setup Chart

    Setup Chart Quick Setup Sheet scanner Mode Beep Terminator UPC-E Scan Code Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 33 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 34: Interblock Delay

    BEEP LOW – HIGH BEEP MEDIUM .F015$ BEEP LOW--HIGH .F017$ BEEP LOW Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 35 Keyboard Wedge Settings Group 2 Language(For PC/XT,AT) Function Code Caps-Lock Use number keypad digits Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 36: Data Length

    Data Length (Two Dghts) Send Preamble /postamble Code ID Label Type Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 37 Define Code ID Group 3 Define Code ID Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 38 Code 39 / Full ASCII Code Group 4 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 39 2 of 5 Group 5 I 2of5 (ITF) Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 40 S 2of5 / China Postal Code (Toshiba Code) Code 32 (Italian Pharmacy) Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 41 Scan a ASCII code in full ASCII code chart to select a new fields separator Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810...
  • Page 42 Code 128/ Code 93 / MSI Code Group 8 Code 128 Code 93 MSI / Plessey Code Numeric Barcode Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 43 Bar codes shorter or longer than specified will not be read. The default lengths for these are indicated in parentheses under the Min and Max bar codes for each symbology. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
  • Page 44 Code 11 / Codabar Group 9 Code 11 Codabar Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 45 UPC / EAN Code Group 10 UPC-A UPC-E Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 46 UPC / EAN Code Group 11 EAN-13 EAN-8 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 47 Supplement Code Group 12 MATRIX 2 Of 5 Group 13 Supplement Code Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 48 ATA Group 14 UK PLESSY CODE GROUP 15 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 49 Full ASCII Chart (Characters in parentheses represent Code 39 bar code printing) Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 50 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 51 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 52: Function Codes For Pc

    Function Codes for PC Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 53 *2. "Shift(left)Make" is programmed. Please scan "Shift(left)Break" to resume barcode setting. *3. "Ctrl(left)Make" is programmed. Please scan "Ctrl(left)Break" to resume barcode setting. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
  • Page 54 Barcode Chart Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 55 Delete Last Record/Clear All Record . R005$ DELETE LAST RECORD . R004$ CLEAR ALL RECORD Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 56 . R011$ FIELD SEPARATOR DATE & TIME SETUP . R006$ SET DATE Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 57: Set Time

    DATE FORMAT . R008$ DATE FORMAT TIME FORMAT . R009$ TIME FORMAT Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 58: Smartphone Connection (Android)

    BluetoothConnect needs to be installed only when you have wireless input application on your Android device. Android 2.x devices can work with MS912 in the SPP mode ONLY. The SPP mode or/and the HID mode are not definitely compatible with each version of Android OS, and thus depends on the Android-based hardware specifications defined by the Android device manufacturers.
  • Page 59 Click [Enable Input Method] and enable [BluetoothConnect] in the Language & Keyboard setting window. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810...
  • Page 60 Scan [BT mode - SPP] configuration barcode. It can be found on the quick start guide or quick connection card. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 61 10. Click [Scan for devices] on the Bluetooth settings window. Click [Wireless Scanner] to pair with your wireless scanner. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 62 12. Get back to BluetoothConnect, enable setting menu and click [Connect to Barcode Reader]. The scanner will beep twice to verify the successful connection. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)

  • Page 63: Smartphone/ Tablet Pc Connection (Ios)

    Scan [BT mode - HID] configuration barcode. It can be found on the quick start guide or quick connection card. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 64 On the discovered device list, click [Wireless Scanner] to pair with your wireless scanner. The Bluetooth application will prompt you to enter a random pincode. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.)
  • Page 65 Pincode Setup section on the quick start guide or quick connection card. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810...
  • Page 66 Please scan [Enable SSP], as shown left, before .E049$ entering the pairing procedure of [BT mode - HID]. Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...
  • Page 67 ENABLE iOS HOTKEY .E047$ DISABLE iOS HOTKEY .E048 Unitech electronics co., ltd. 5F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist., New Taipei City 231, Taiwan (R.O.C.) Tel: + 886 2 89121122 Fax: +886 2 89121810 website: www.ute.com...

  • Page 68: Worldwide Support
