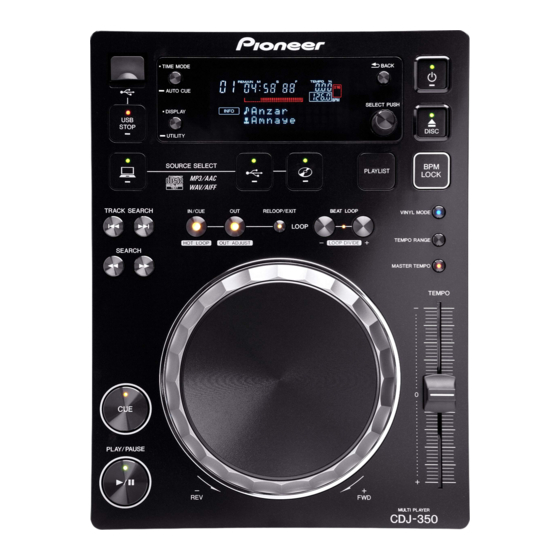

Pioneer CDJ-350 Connection Manual
Multi player
Hide thumbs
Also See for CDJ-350:
- Service manual (97 pages) ,
- Operating instructions manual (84 pages) ,
- Connection manual (11 pages)
Related Manuals for Pioneer CDJ-350
Summary of Contents for Pioneer CDJ-350
- Page 1 Multi Player CDJ-350 TRAKTOR PRO/PRO 2 Connection Guide...
- Page 2 Introduction The CDJ-350 is equipped with a computer control mode that allows DJ software developed by other companies to be controlled upon connecting the Multi Player to a computer with a USB cable. Pioneer provides a dedicated MIDI mapping file for TRAKTOR PRO/PRO 2, a DJ software product from Native Instruments.
- Page 3 Connecting with TRAKTOR PRO/PRO 2 Computer TRAKTOR PRO/PRO 2 USB cable USB cable Audio cable Audio cable MIC /AUX AUDIO MASTER LEVEL AC IN CONTROL HEADPHONES MASTER EFFECT CDJ-350 DJ mixer Rear panel Power cable To an AC outlet...
- Page 4 Deleting the old version of the MIDI mapping file from TRAKTOR PRO/PRO 2 If the old version of the MIDI mapping file (PIONEER_CDJ-350.tsi) has already been imported into TRAKTOR PRO/PRO 2, please delete it before importing the new version. Delete the old version from TRAKTOR PRO/PRO 2 according to the following steps.
- Page 5 2 On the menu list on the left panel of the screen, click [Controller Manager]. The right side of the screen will switch to [Controller Manager] settings. 3 Check the selection under [Device Setup]. Confirm that [Generic MIDI] is selected for [Device]. If the option is not selected, click ...
- Page 6 5 Select [Delete] from the pull down menu. 6 Click [Yes] when the popup window confirming if you would like to perform the operation or not is displayed. The old version of PIONEER_CDJ-350.tsi is deleted now. To import the new version of the MIDI mapping file, see “’Using the Multi player as a TRAKTOR PRO/ PRO 2 controller”...
- Page 7 The MIDI channel for the multi-player is set to CH 1 (Channel 1) by factory settings. Following the mappings in the table above, set each CDJ-350 MIDI channel you wish to use to one of the channels between CH 1 and CH 4.
- Page 8 ] button on the Multi Player for 1 second or longer to switch the Multi Player to control mode. “CONTROL MODE” will appear in the main unit’s display console. Set the CDJ-350 to control mode on all units you wish to use. Importing the MIDI mapping file into TRAKTOR PRO/PRO 2 Import the MIDI mapping file into TRAKTOR PRO/PRO 2 according to the following steps.
- Page 9 2 On the menu list on the left panel of the screen, click [Controller Manager]. The right side of the screen will switch to [Controller Manager] settings. 3 In [Device Setup], click [Add...]. A pulldown menu will be displayed. ③ ②...
- Page 10 5 Check the selections under [Device Setup]. Confirm that [Generic MIDI] is selected for [Device], [All Ports] for the [In-Port], and [Focus] for the [Device Target]. If any option is not selected, click and select the corresponding option from the pulldown menu. 6 Click [Close] and the [Preferences...] screen will close.
- Page 11 If other Pioneer CDJ player models or other products are connected to a computer with a USB cable to be used together with the CDJ-350, the MIDI channel for these other models should be set to Channel 5 or higher because the MIDI mapping file uses MIDI channels 1 –...
- Page 12 In the menu bar at the top of the screen select [Device Set Editor] from the [Audio] menu. Click [+] on the [Device Set Editor] screen to add the new Device settings. Select the added Device setting, and then add a tick to [CDJ-350] to it for the required number of Multi Players.
- Page 13 Start up [AUDIO MIDI Settings] from the [Applications]–[Utilities] folder. Click [+] on the [Audio Device] screen to add the new Device settings. Select the added Device setting, and then add a tick to [CDJ-350] to it for the required number of Multi Players.
- Page 14 253 Alexandra Road, #04-01, Singapore 159936 TEL: 65-6472-7555 PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 5 Arco Lane, Heatherton, Victoria, 3202, Australia, TEL: (03) 9586-6300 PIONEER ELECTRONICS DE MEXICO S.A. DE C.V. Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: 55-9178-4270...
