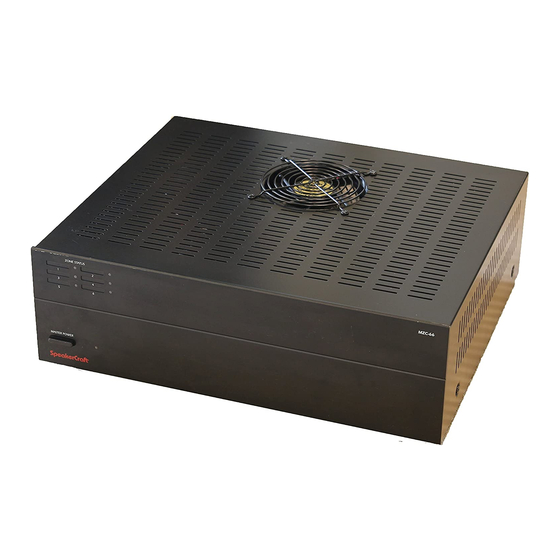

SpeakerCraft MZC-66 Quick Start Manual

Multi-zone audio/video amplifier controller
Hide thumbs Also See for MZC-66:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

See also: Instruction and Installation Manual

QUICK START GUIDE

MZC-66
Multi-Zone Audio/Video Amplifier Controller
ABOUT MZC-66 QUICK START GUIDE
MZC-66 QUICK START GUIDE is intended to provide top-level instructions for Installation, Configuration and
Connection of a SpeakerCraft MZC-66 System. MZC-66 Quick Start focuses on a MZC-66 'default' system,
that is, a basic six zone system that includes up to six audio/video sources, that matches the MZC-66 default
project included in the EZ-Tools download. This Quick Start Guide can also be used for getting more sophisti-
cated systems started, but when planning and installing expanded systems with multiple controllers, external
amplifiers, multi-room zones or when changing the layout of the keypad buttons, it is highly recommended
that the MZC-66 Hardware Installation Instructions be used for reference and guidance. Additionally, the
Hardware Installation Instructions provide much greater detail in regard to instructions given here. MZC-66
Hardware Installation Instructions are available as a download from www.speakercraft.com.
Once a MZC system has been installed, though capable of some basic functions out of the box such as
ON/OFF, Source Selection and Volume/Mute, configuration of MZC-66 advanced features requires Speaker-
Craft EZ-Tools Programming Software. EZ-Tools and the EZ-Tools MZC Programming Instructions can be down-
loaded from: www.speakercraft.com.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MZC-66 and is the answer not in the manual?

Questions and answers

Related Manuals for SpeakerCraft MZC-66

Summary of Contents for SpeakerCraft MZC-66

  • Page 1: Quick Start Guide

    Connection of a SpeakerCraft MZC-66 System. MZC-66 Quick Start focuses on a MZC-66 ‘default’ system, that is, a basic six zone system that includes up to six audio/video sources, that matches the MZC-66 default project included in the EZ-Tools download. This Quick Start Guide can also be used for getting more sophisti-...
  • Page 2 MASTER POWER Switch – When pressed to the in position, the MZC-66 is placed in the power ON standby condition, permitting individual zones to be turned ON and OFF by keypad or touch panel commands. In the OFF (out) position, power from the AC mains is completely turned off.
  • Page 3 Source Audio signals to additional zone inputs on Slave MZC-66’s in expanded systems. i.e. The L, R, V LOOP on the MZC Master would connect to the appropriate L, R, V INPUT on MZC Slave 1.
  • Page 4 Function Buttons – These lower 4 buttons (5 buttons in the case of the MKP-1.0) can be programmed for any function except source select. IR Receiver Lens – EZ-Pad version MKP-1.1 includes SpeakerCraft’s exclusive ANS IR Receiver, built-in. The IR Receiver allows use of a handheld remote for control of system components.

  • Page 5: Keypad Connections

    485A & 485B CAT-5 WITHOUT RJ45 CONNECTORS – Connect EZ-Pads to MZC-66 as shown above. Be sure to maintain consistent color code when making connections. For IMKP, use same pin-out. See MODE 3.1 Installation Instructions for plug-in connector and RJ45 pin-outs.

  • Page 6: Typical Mzc-66 System

    “sub-zones” to a default system. Additionally, the MZC-66 has a programmable contact closure for control of lifts, screens, drapes etc.The MZC-66 also features two Doorbell/Status inputs that can be used for common source power management or tiggering a system ‘event’ from a doorbell module. For additional information on connec- tion, configuration and programming of these optional features see: MZC-66 Hardware Installation Instructions and EZ Tools MZC Programming Instructions.
  • Page 7 Carefully attach a SpeakerCraft IR Emitter (Models: 1.0, 2.0, 3.0, 4.0) over the IR eye on the front panel of each external source component to be controlled via infrared. Carefully pull the emitter wire to the rear panel of the MZC-66. Do not block accesses for discs and tapes. Do not pinch emitter wires between components.

  • Page 8: Mzc-66 Specifications

    *5-3⁄4” (146mm) H, includ-ing feet Input/Output Levels 1.0V p-p +/- 5% (Outputs 75 Ohms Terminated) Weight 23 lbs (10.5 kg) 940 Columbia Ave., Riverside CA 92507 | USA (800) 448 0976 Fax (951) 787 8747 International +1 951 787 0543 | www.speakercraft.com LIT13166...
