MAINTENANCE

SUSPENSION (RZR S)

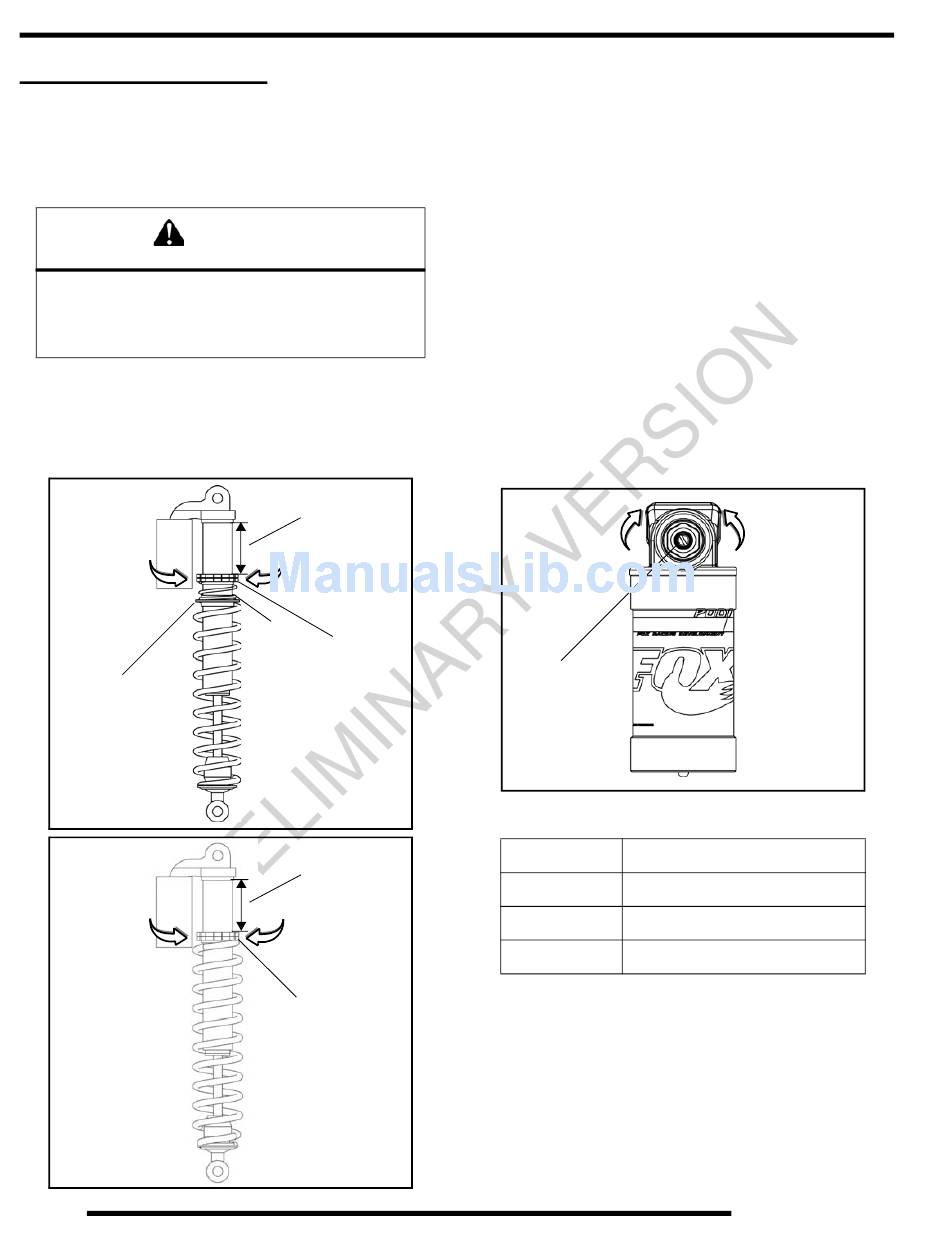

Spring Preload Adjustment

The front and rear shocks have a preload adjustment.
Suspension spring preload may be adjusted to suit different
riding conditions or vehicle payloads.
WARNING
Uneven adjustment may cause poor handling of the
vehicle, which could result in an accident and
serious injury or death. Always adjust both the left
and right spring preloads equally.
1. Raise and safely support the front or rear of the vehicle off
the ground to allow the suspension to fully extend.
2. Loosen the upper jam nut adjustment ring. Turn the lower
adjustment ring (1) clockwise to increase preload or
counter-clockwise to decrease preload.
Decrease
Preload
Spring
Spacer
Decrease
Preload
2.32
Factory Preload Setting
3.5 in. (8.9 cm)
Increase
Preload
Ride-In
1
Spring
Front Shock
Factory Preload Setting
5.4 in. (13.7 cm)
Increase
Preload
1
Rear Shock
3. Once you have obtained the correct preload, holding the
lower adjustment ring while tightening the upper
adjustment ring to lock them in place.

Shock Compression Adjustment

The compression damping adjustment is located on top of the
shock 'Piggyback' reservoir of each shock.
Use a flat blade screwdriver to make damping adjustments.
NOTE: When the adjuster screw is turned clockwise
until it stops, the damping is in the fully closed
position.
Turn the clicker clockwise to increase compression damping.
Turn the clicker counter-clockwise to decrease compression
damping.
NOTE: The factory setting is 8 clicks from closed
(see "Compression Adjustment Table").
Increase
Damping
Clicker
Adjuster
Compression Adjustment Table
Setting
Softest 18 clicks from closed
Factory 8 clicks from closed
Firmest 2 clicks from closed
Decrease
Damping
Compression Damping
