RapidFOLD
SPECIFICATIONS
• Folds 8.5" x 11" or A4 size paper
• Creates four different folds
• Operates at a speed of 4000 sheets/hr
• Accepts 16-28 lb. bond paper (60-105 gsm)
• Folds 1 sheet at a time automatically, or up to
3 sheets at a time manually
C
F
WARNING! Never connect power to the folder until you
are ready to set up and operate the machine. During set
up, operation, and maintenance keep hands, hair, loose
clothing, and jewelry away from all moving parts. Serious
bodily injury could result. Service or disassembly of fold-
er should only be attempted with the power disconnected.
INSTRUCTION MANUAL
Model P7200 (110V)
Model P720022 (220V)
B
E

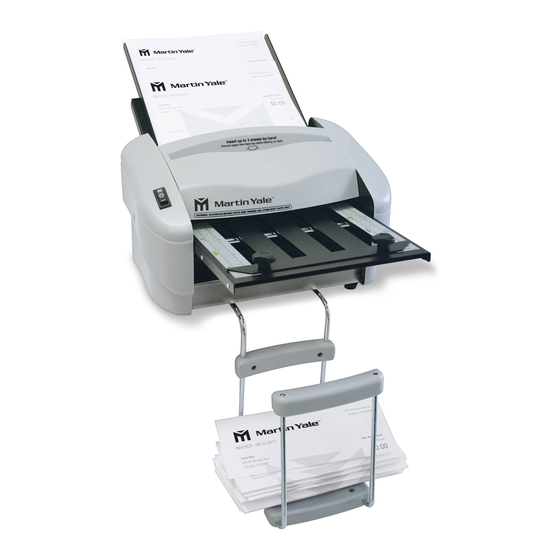

Your machine comes with the following
components:
A. RAPIDFOLD FOLDING MACHINE
B. PAPER GUIDES (2)
D
C. FRONT FOLD TABLE
D. BACK FOLD TABLE
E. METAL BRACKETS (2)
F. EXIT TRAY CONNECTOR SET (3)
A
(exit tray connectors contain
3 top plastic pieces,
3 bottom plastic pieces, and
6 connector screws)
Martin Yale industries • Wabash, IN 46992
Phone (260)-563-0641 • Fax (260)-563-4575
www.martinyale.com • Made in Taiwan
5/26/06
