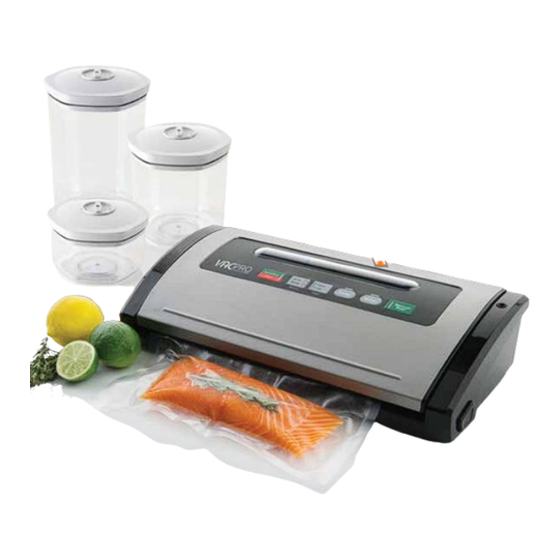

VACPRO ALI-VAC2 Installation & Operating Instructions Manual

Home vacuum sealer

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

INSTALLATION & OPERATING

INSTRUCTIONS

ALI-VAC2

Table of Contents

Need help?

Do you have a question about the ALI-VAC2 and is the answer not in the manual?

Questions and answers

Summary of Contents for VACPRO ALI-VAC2

Page 1 INSTALLATION & OPERATING INSTRUCTIONS ALI-VAC2...
Page 2 Congratulations on your purchase of a VACPRO Home Vacuum Sealer. Note: Please read through the instructions carefully before using or installing the product and ensure that the manual is kept in a safe place for future reference. The system must be properly installed and located in accordance with the installation instructions before it is used.
Page 3 Do not use attachments not recommended or sold by the • Remove and safely discard any packaging material and promotional labels before using the VACPRO for the first time. manufacturer as it may lead to fire, electric shock or injury. •...
Page 4 WARNING: BURN HAZARD. Sealing profile will be hot after use, allow • Do not reuse the VACPRO bags after using with raw meat, fish profile to cool before touching. or poultry or after the bag has been heated, i.e. microwave or Do not wash canister, marinate or lunch box lids.
Page 5 INSTALLATION & OPERATING INSTRUCTIONS A. Vacuum Sealer Parts Identification Description Main Components Vacuum & Seal / Cancel button Vacuum Speed Setting button Food Setting button Canister Vacuum button Marinate button Manual Seal button Vacuum Seal Hose port Cover release button (located on each side of unit) Sealing Strip Upper Gasket Roll Storage Compartment...
Page 6: Manual Seal Button 1
B. Preserving Food in Vacuum Bags Note: Operate unit on a stable level flat surface, keep away from 7. Press Manual Seal button and wait for the indicator light to moving parts. Ensure surface is clean and free from water. Do not switch off before opening cover.
Page 7 9. Place items for storage into the sealed bag. 13. Press Food Setting button until light is on appropriate setting. Select ‘Dry’ for foods or items without liquid or ‘Moist’ for juicy Note: Do not overload the bag. Always allow enough space foods.
Page 8 14. Push Vacuum & Seal button and wait for all lights to switch off before opening cover. Note: The Vacuum & Seal Button draws out air from bag and automatically seals the bag after vacuum is complete. The Upper and Lower Gasket keep air away by forming a vacuum environment when closed together.
Page 9: Installation & Operating Instructions
C. Preserving Food in Canisters 1. Ensure canisters are clean and dry (see Fig 4). 7. Repeat Steps 2-6 for other canisters to be sealed. Note: Do not immerse canister lids in water, wipe with a damp Note: Canister lids are not to be used in microwaves or in freezers. cloth only.
Page 10: Roll Storage Compartment 1
D. Preserving Wine 1. Ensure Vacuum Seal cover is closed but not locked. 2. Securely insert one Wine Stopper into the top of the opened wine bottle (see Fig 5). Note: Do not use on Sparkling Wine. 3. Connect one end of the Vacuum Seal Hose to the Vacuum Seal Hose port and the other end of the Wine Stopper in the wine bottle;...
Page 11 E. Preserving Food in Lunchboxes 1. Ensure lunchboxes are clean and dry. (see Fig 6). 2. Fill lunchboxes with food to be preserved and secure lid onto the lunchbox. Note: Ensure that the grey rubber plug on the lunchbox lid is in place.
Page 12 F. Marinating Meat with Marinate Bowl 1. Ensure Marinate Bowl is clean and dry. (see Fig 7). 2. Place the food to be marinated into the bowl and pour enough marinade over the food to cover it entirely. 3. Secure the lid onto the Marinate Bowl. 4.
Page 13: Hints For Best Vacuuming Performance
7. When using canister, remember to leave one inch from canister cover rim, and make sure upper lid is already locked before vacuuming. Important: Do not reuse the VACPRO bags after using with raw meat, fish or poultry or after the bag has been heated, ie. microwave or simmer.
Page 14: Food Preservation Chart
FOOD PRESERVATION CHART Conventional VACPRO Home Freezer Storage Vacuum Sealer Note: Storage preservation chart are estimates only and should be Beef, Pork or Lamb 6 months 2-3 years used as a guide only. The storage life will depend on the original quality of the foods and the integrity of the packages seal.
Page 15: Hints And Tips
Before Vacuum Sealing, it is necessary to clean your hands, • VACPRO Vacuum Bags and rolls are SIMMER/BOIL safe. Place and all utensils and surfaces to be used for cutting and bag into pot of boiling water with the top of the bag above the Vacuum Sealing foods.
Page 16 FOOD ITEMS from oxidation, corrosion and moisture. Simply expansion of liquid when frozen and sealing space for the bag). store and seal items in a VACPRO Vacuum Bag and follow the Do not seal at this point. Place the filled liquid bag upright into a “Preserving Food in a Vacuum Bag”...
Page 17: Cleaning And Maintenance
CLEANING AND MAINTENANCE Cleaning Lower Gasket: It is important to ensure that all parts of your VACPRO sealing system is cleaned on a regular basis. Remove Lower Gasket from its indentation location and wash with Follow the care and cleaning guidelines below: warm soapy water then rinse thoroughly.
Page 18 Keep the unit in a flat and safe place, out of the reach of children. Important: Do not store or leave appliance for extended periods Note: Do not reuse the VACPRO bags after using with raw meat, with the cover closed and locked into position. It may cause the...
Page 19: Troubleshooting
TROUBLE SHOOTING BEFORE YOU CALL FOR SERVICE PLEASE REVIEW THE TROUBLE SHOOTING TIPS FIRST. Problem Possible Cause Solution 1. Make sure the power cord is correctly plugged into the electrical 1. Power cord not plugged in. outlet, and in the “on” position. Nothing happens when I press the vacuum sealer 2.
Page 20 Problem Possible Cause Solution 1. Wrinkles, crumbs, grease or liquids may cause leaks along the seal. Reopen bag, wipe the top inside of the bag and smooth it out along the sealing strip before resealing. 1. Bag not sealed properly. 2.
Page 21 Your Alibaba Imports 12 Month Repair or Replacement Warranty Conditions Of This Warranty: Alibaba Imports warrants this appliance to the first purchaser and 1. This product has been fully installed in accordance with the subject to the stated conditions: user manual installation instructions. Warranty covers any defects in material or workmanship in the 2.
Page 22 22 INSTALLATION AND OPERATING INSTRUCTIONS...
Page 23 INSTALLATION AND OPERATING INSTRUCTIONS 23...
Page 24 CUSTOMER HOTLINE: 1300 764 325 Alibaba Imports Pty Ltd 5 John St, Flinders Park SA 5025 Australia Phone: (08) 8354 0711 /proappliances @proappliancesau www.proappliances.com.au...
