Chapter 3 – The IQAir® System's Components
3.1 Description of Housing Components

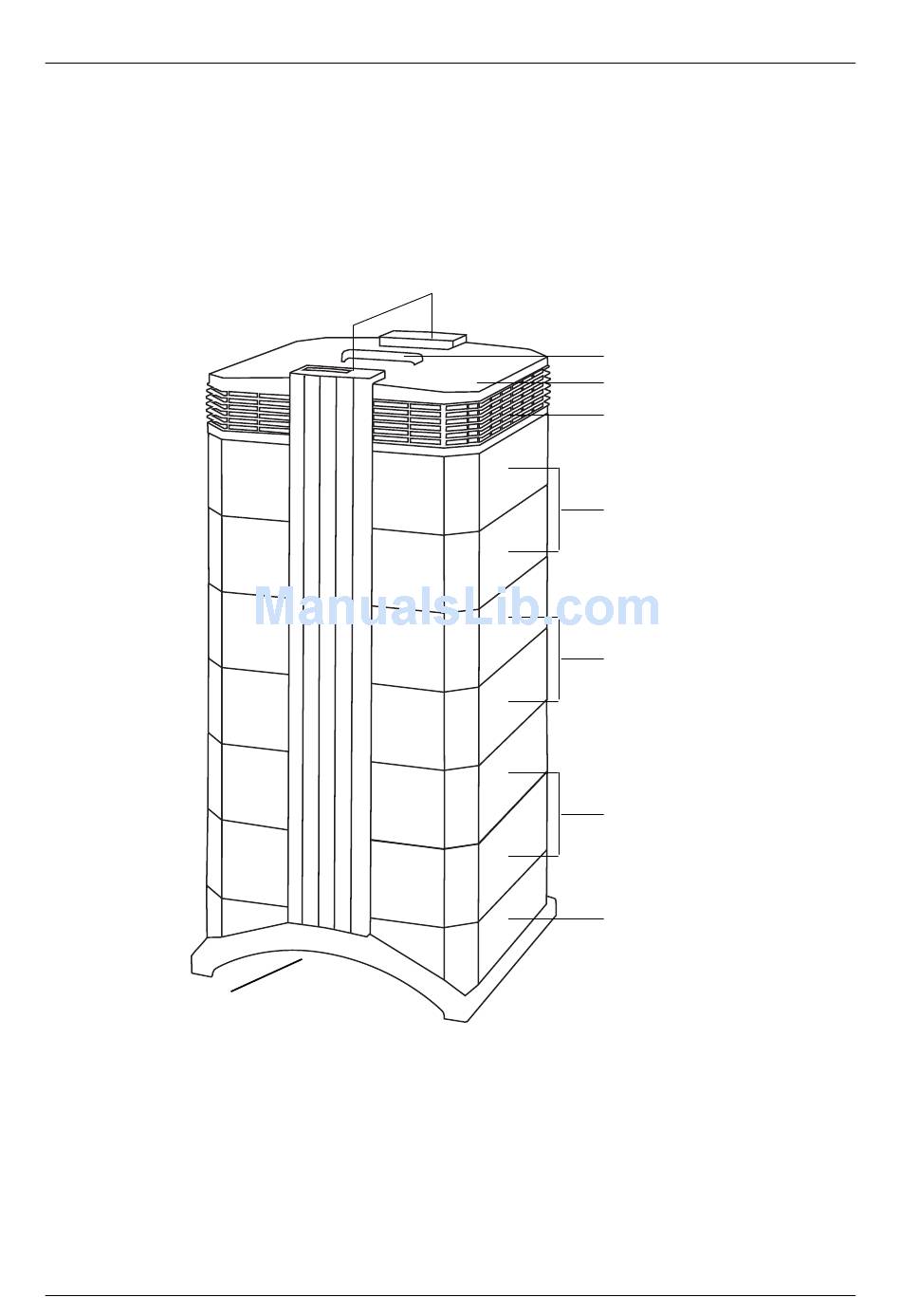

The IQAir system features a modular tower design in which all important filtration and air moving components are
positioned vertically in-line, i.e. stacked on top of another. Air is drawn into the system at the base, and passes
through several filter stages to be returned to the room via the diffuser on top of the system. The housing modules
are held together by two locking arms.
Air intake opening
•
The base with its arched design features air intake openings on two sides.
•
The Pre-Filter module consists of frame 1 and the Pre-Filter which is secured inside the frame by four filter
clamps.
•
The fan assembly comprises two housing modules with the centrifugal fan inside.
•
The The HyperHEPA filter module consists of frame 2 and the HEPA filter.
•
The EvenFlow diffuser features the omni-directional air outlet openings.
•
The handle on top of the diffuser is designed for carrying the IQAir system.
•
The locking arms hold the housing elements together. When opened, the locking arms allow easy access to all
filters.
Locking Arms
Chapter 3 – The IQAir® System's Components
Handle
EvenFlow Diffuser
Air outlet openings
HyperHEPA Filter Module
(Frame 2)
Fan Assembly
Pre-Filter module
(Frame 1)
Base
