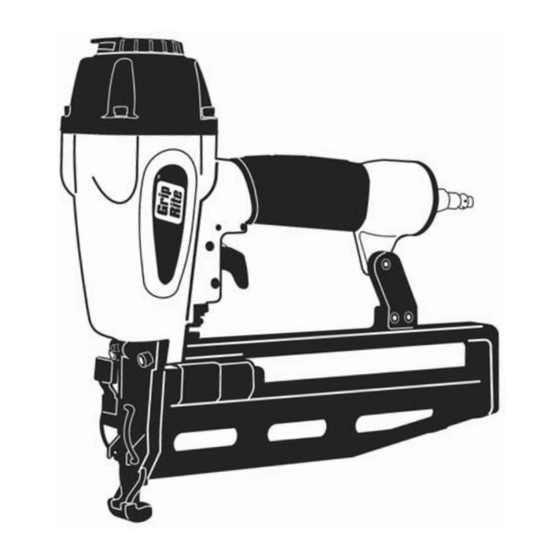

- Page 1 OPERATOR’S MANUAL AND PARTS LIST MODEL GRTFN250 FINISH NAILER Tough as nails Distributed By www.grip-rite.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS SPECIFICATIONS TABLE OF CONTENTS -------------------------------- 2 MODEL GRTFN250 FINISH NAILER SPECIFICATIONS --------------------------------------- 3 FASTENER RANGE 1” - 2 1/2” (25 mm - 65 mm) FASTENER TYPE 16 Ga. Straight Collated Finish Nails Fastener Selection Chart ------------------------ 3... -
Page 3: Safety
SAFETY SAFETY SAFETY LABELS SAFETY INSTRUCTIONS This pneumatic fastening tool includes a warning label to help remind you of important safety information when operating the tool. The safety label must be WEAR SAFETY GLASSES legible at all times, and must be replaced if it becomes worn or damaged. Always wear safety glasses with side shields that meet ANSI Z87.1 requirements when operating the tool. - Page 4 SAFETY SAFETY SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS DO NOT ATTEMPT TO OPERATE THE TOOL IF THE TOOL’S KEEP HANDS AND BODY PARTS AWAY FROM AREA BEING OPERATING CONTROLS HAVE BEEN MODIFIED OR ARE NOT FASTENED. WORKING PROPERLY. Fasteners can deflect and turn as they are being driven into Attempting to use a tool with modified or malfunctioning the workpiece, and penetrate fingers, hands, and other body trigger or workpiece contact can result in a fastener being...
-
Page 5: Tool Parts
DESCRIPTION DESCRIPTION TOOL PARTS PART DESCRIPTIONS 1. 360° Adjustable Air Deflector - Tool-free adjustment blows exhaust air away from operator. 12 locking positions for secure settings. 2. Cushioned Grip - Cushioned handgrip reduces fatigue and provides comfortable operation. 3. Sequential Trigger (STD.) - Actuates tool only when correct trigger operating sequence is followed. -
Page 6: Operation
OPERATION OPERATION LOADING FASTENERS ADJUSTING NAIL DRIVE LOADING INSTRUCTIONS 1. Disconnect tool from air supply using quick-connect coupling. DANGER 2. Turn adjustment dial backward A fastener can be driven unintentionally if the trigger and safety bracket to decrease nail drive, or forward to increase nail drive, are activated at the same time. -
Page 7: Tool Operation
OPERATION MAINTENANCE TOOL OPERATION MAINTENANCE SEQUENTIAL OPERATION Your tool will last longer and perform better if periodic maintenance is performed. Please use the information below to keep your tool operating 1. Hold the tool securely using the handgrip. Keep finger off trigger in top condition. -
Page 8: Parts Schematic
PARTS SCHEMATIC PARTS LIST ITEM P/N DESCRIPTION ITEM P/N DESCRIPTION GRTN1880 Hex. Soc. Hd. Bolt 40 GRTN2530 Spring Pin GRTN660 Deflector Bushing 41A GRTN2990 Trigger Assy SEQ. GRTN2240 O-Ring 42 GRTN1440 Contact Trip Guide GRTN670 Exhaust Deflector 43 GRTN790 Trigger Pin GRTN2480 O-Ring 44 GRTN2210 Grommet GRTN2960 Cap... -
Page 9: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING TOOL TROUBLESHOOTING FASTENER DRIVING PROBLEMS Your pneumatic fastening tool has been designed for long life and trouble- Tool operates, but no Check magazine for jammed fastener. Clear free operation. However, if operating problems arise, please use the fastener is driven. jam and reload magazine. -
Page 10: Warranty
Should any mechanical problems develop during the life of your Pneumatic nailers, staplers & compressors marketed under the equipment the following options are available for service and parts: GRIP RITE brand are warranted to be free from defects in work- manship & materials (except rubber o-rings, bumpers, seals, driver •... - Page 11 USE GENUINE GRIP-RITE® FASTENERS FOR BEST PERFORMANCE www.grip-rite.com GRTFN250MAN...
