USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H5 and is the answer not in the manual?

Questions and answers

Related Manuals for Objecto H5

Summary of Contents for Objecto H5

  • Page 1 USER MANUAL...

  • Page 2: Safety Information

    English Safety Information Before use, be sure to carefully read all information to ensure that you use this product correctly. Always follow this information when using this unit. WARNING Do not disassemble. This product may only be disassembled by qualified repair technicians. Attempting to disassemble this product can cause a fire, electrical shock, or injury.
  • Page 3 English Never put aroma oil or other fragrances directly into the water tank. Do not place the product directly on a carpet or other object with soft fibers. Do not wipe with benzene or thinner. When unplugging the power cord, always unplug by grasping the power plug, not by pulling on the cord.

  • Page 4: Names Of Parts And Their Functions

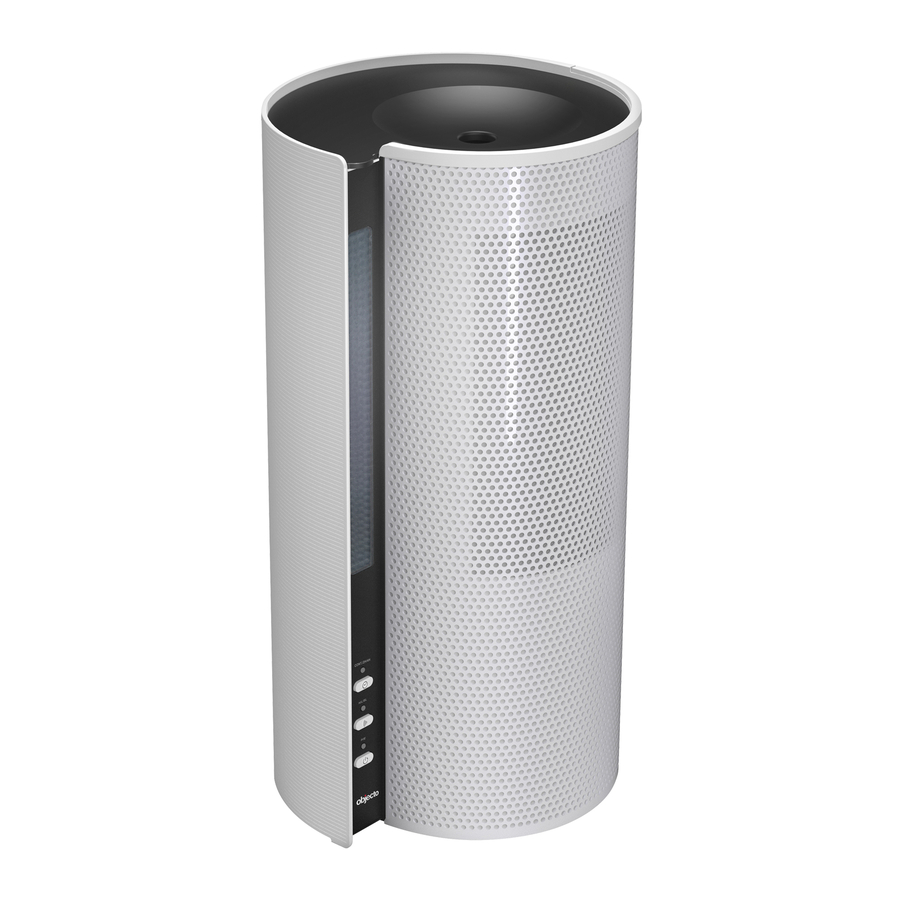

    English Names of Parts and Their Functions Front Mist outlet Cover Mist hole Water tank handle Water tank Water level indicator Humidifier Water level indicator mood lamp Controls Air inlet (bottom) Back Aroma case Power cord Power plug...
  • Page 5 English Water tank back side Water tank cap Mist hole Inside of body Water drain direction arrow indicator Water passage cover Ultrasound vibration plate (Ceramic disc) Water level sensor Water tub Fan outlet Overflow pool Water passage cover Heater Grooves If the water passage cover is not attached correctly, hot water can overflow from the humidifier body.
  • Page 6 English Accessories Replacement felt × 2 CAUTION • Never put aroma oil or other fragrances DIRECTLY into the water tank. This could damage the humidifier or cause malfunction. • Before moving the humidifier, remove the water tank and spill out the water inside in the direction indicated by the arrow.

  • Page 7: Preparation Before Use

    English Correct Use of the Hybrid Humidifier Preparation Before Use Place the humidifier on a leveled, stable surface. Place the humidifier at least 7 feet from televisions, radios, and other electronics. Otherwise, static interference can result. Fill with tap water. Remove the cover from the top of the humidifier.

  • Page 8: Starting And Stopping The Humidifier

    English Starting and Stopping the Humidifier Start the humidifier When the Power button is pressed, the Power/Water indicator (P/E) lights up green, the mood lamp lights and the humidifier starts producing mist after about 2 minutes. To prevent water from accumulating at the mist outlet, the fan motor slows for 2 seconds about every 20 seconds.
  • Page 9 English Setting the mist level To set the mist level, press the Mist Setting button . Each time the button is pressed, the setting cycles from L (Low) → SL (Min.) → H (High). The indicator is lit blue when set to H (High), lit orange when set to L (Low), and flashes orange when set to SL (Min.).
  • Page 10 English Using the Aroma Case Pull out the aroma case from the humidifier body. Aroma case Dampen the felt in the case with aroma oil and put it back in the body of the humidifier. Check that felt is inserted in the aroma case. Drop two or three drops of aroma oil or essential oil (available commercially) while being careful that it does not spill outside the case.

  • Page 11: Cleaning And Storage

    English Replace the felt whenever it becomes dirty, or when using a different scent of aroma oil or essential oil. In addition to the felt that comes in the aroma case at purchase, two more pieces are included. The felt cannot be washed and used again. Insert the felt so that it fits under the tabs in the aroma case.

  • Page 12: Cleaning The Water Tank

    English If the water passage cover is not attached correctly, hot water can overflow from the humidifier body. Insert the tabs at the bottom of the water passage cover (dotted line section) all the way into the grooves of the water passage in the humidifier body (location shown by the arrows).
  • Page 13 English Before Requesting Repairs or Service WARNING This product can be disassembled and repaired by qualified repair technicians only. If you find any problems, follow the troubleshooting procedures below. Problem Primary Cause Soluition The power does • The power cord is not Plug the power cord into the outlet.

  • Page 14: Specifications

    English Specifications Product name H5 Spiral Hybrid Humidifier Model HM-45 Power supply 110 – 120 V, 50/60 Hz Rated consumption 80 W Mist production Per hour: H (High): Approx. 64 pints , L (Low): Approx. 40 pints , SL (Super Low): Approx. 20 pints Approx.

  • Page 15: Limited Warranty Policy

    Should service be necessary for any reason due to manufacturing defect or malfunction during the 90 days period, OBJECTO will provide carry-in repair service at our FACTORY SERVICE CENTER at no charge, and for the duration of the extended 9 months parts warranty period will replace the defective part only, not including labor, provided the defect or malfunction is verifi...
