GE JRP15 Installation Instructions page 2

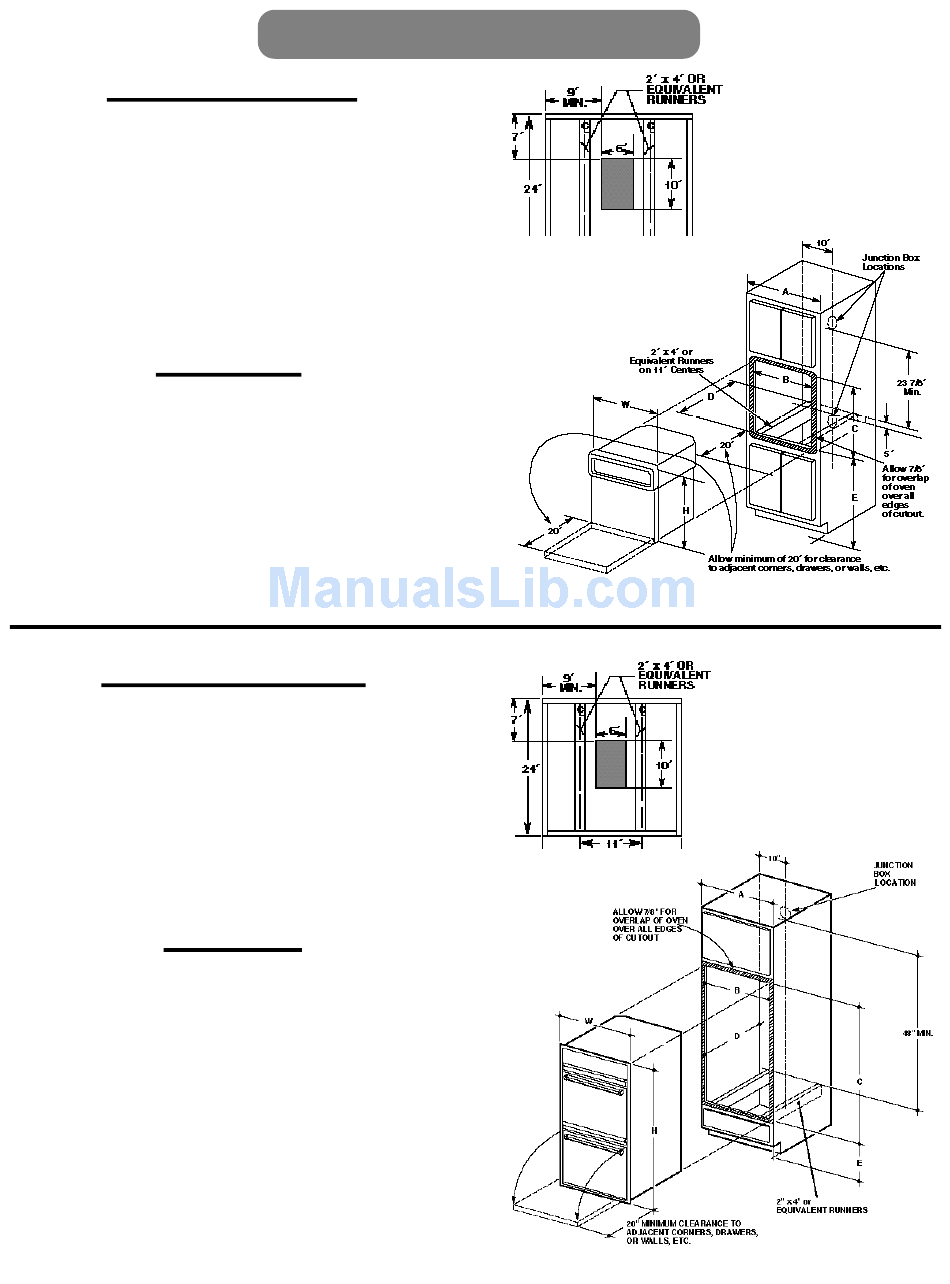

Fig. 1 — SINGLE OVEN
NOTE: Locate an approved junction box in the
suggested location, a minimum of 23 7/8" above the
runners.
Be sure the oven support is solid enough to support 90
pounds. Also be sure the oven support is level and
straight. There is no way to level the oven after
installation.
If a solid bottom is used instead of runners, a 6" x 10"
rectangle must be cut out of the bottom (See Fig. 1) for
optimum performance and proper air circulation.
DIMENSIONS
A. Cabinet Width
B. Cutout Width
C. Cutout Height
D. Cutout Depth
E. Cutout Location
H. Overall Height
W.Overall Width
Fig. 2 — DOUBLE OVEN
NOTE: Locate an approved junction box in the
suggested location, a minimum of 48" above the runners.
Be sure the oven support is solid enough to support 155
pounds. Also be sure the oven support is level and
straight. There is no way to level the oven after
installation.
If a solid bottom is used instead of runners, a 6" x 10"
rectangle must be cut out of the bottom (See Fig. 2) for
optimum performance and proper air circulation.
DIMENSIONS
A. Cabinet Width
B. Cutout Width
C. Cutout Height
D. Cutout Depth
E. Cutout Location - 12 3/4" Min.
H. Overall Height
W. Overall Width
PREPARE OPENING
- 24"
- 22 1/2"
- 27 5/8" Min. 28 1/8" Max.
- 23 1/2" Min.
- 32 1/2"
- 28 3/16"
- 23 3/4"
- 24" Min.
- 22 1/2"
- 48 1/8"
- 23 1/2" Min.
- 48 3/4"
- 23 3/4"
