Beldray BEL0196 Instruction Manual

Steam mop with back saving function
Hide thumbs

Advertisement

Table of Contents

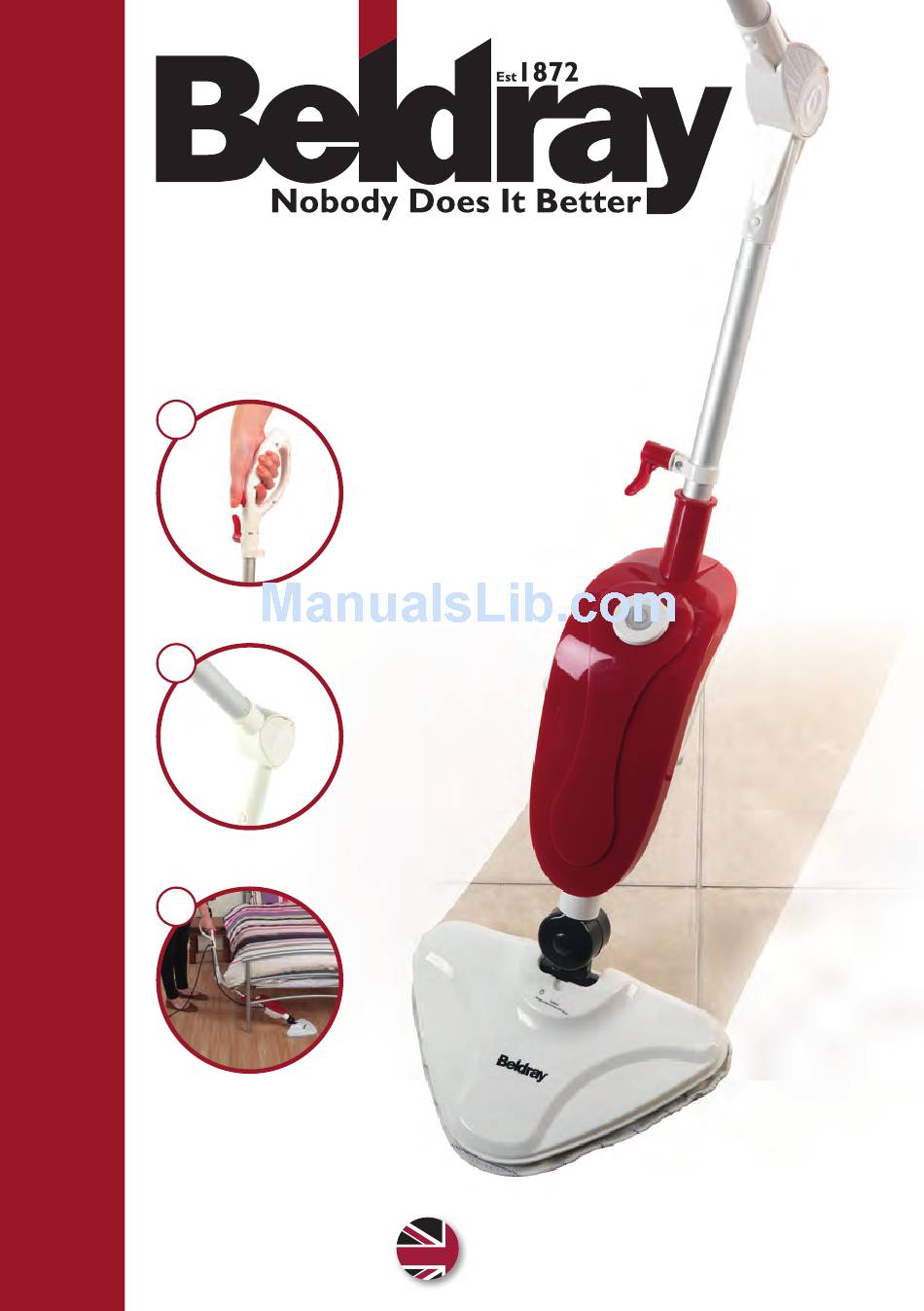

Steam Mop with
Back Saving Function
Instruction Manual
1
With a simple
push of a button
2
the special, back saving
hinge bends into place
3
allowing you to clean
under furniture or in tight
places, without having
to bend
THE SCIENCE
BEHIND HEAT
www.beldray.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEL0196 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Beldray BEL0196

Summary of Contents for Beldray BEL0196

  • Page 1 Steam Mop with Back Saving Function Instruction Manual With a simple push of a button the special, back saving hinge bends into place allowing you to clean under furniture or in tight places, without having to bend THE SCIENCE BEHIND HEAT www.beldray.com...

  • Page 2: Getting Started

    350 ml removable water tank Ready to use in 25 seconds 15 minutes continuous steam Mutlipurpose – cleans hard floors and refreshes carpet Chemical free cleaning Ergonomic back saving feature THE SCIENCE BEL0196 Steam Mop with Back Saving Function BEHIND HEAT...

  • Page 3: Safety Instructions

    Do not use on any unsealed hard floor surfaces or surfaces that have been treated with wax as the sheen may be removed by the heat and steam action. BEL0196 Steam Mop with Back Saving Function...

  • Page 4: Additional Risks

    These include injury from touching hot surfaces, changing accessories or using the appliance for a long period of time. It is recommended that you take regular breaks during prolonged use of the appliance. Steam Caution: Hot surface THE SCIENCE BEL0196 Steam Mop with Back Saving Function BEHIND HEAT...
  • Page 5 3. Lower extension tube 4. Pivot connection 11. 350 ml removable water tank 5. Lower storage clip 12. 2 microfibre mop pads 6. Upper storage clip 13. Cleaning needle 7. Triangular mop head 14. Steam nozzle BEL0196 Steam Mop with Back Saving Function...

  • Page 6: Before First Use

    Insert the lower extension tube (with the lower cord storage clip) into the assembled handle and pivot hinge section (figure 2). STEP 3: Insert the assembled handle section into the steam mop main body (figure 3). Figure 1 Figure 2 Figure 3 THE SCIENCE BEL0196 Steam Mop with Back Saving Function BEHIND HEAT...
  • Page 7 To unlock the pivot connection in order to use the back saving function, press the quick release button on the handle. To lock the handle back into place, raise the handle into an upright position until it clicks and locks into place automatically. BEL0196 Steam Mop with Back Saving Function...

  • Page 8: Filling The Water Tank

    Calcium deposits may be emitted with the steam. Please descale in a sink, bucket or towel to protect carpets etc. STEP 1: To remove the limescale, prepare a solution of white vinegar and tap water and add it to the water tank. THE SCIENCE BEL0196 Steam Mop with Back Saving Function BEHIND HEAT...

  • Page 9: Clearing Blockages

    (figure 7). Figure 7 After using the cleaning needle, add a descaling solution to the tank (see the section entitled ‘Removing Limescale’) and follow the steps listed. BEL0196 Steam Mop with Back Saving Function...

  • Page 10: Troubleshooting

    ‘Cleaning and Maintenance’ section. Store in a cool, dry place. Specifications Product code: BEL0196 Voltage: 220-240 V~ 50 Hz Output: 1300 W Water tank capacity: 350 ml Waterproof level: IPX4 THE SCIENCE BEL0196 Steam Mop with Back Saving Function BEHIND HEAT...

  • Page 11: Connection To The Mains

    Connection to the mains Please check that the voltage indicated on the product corresponds with your supply voltage. Important As the colours in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, please proceed as follows: The wires in the mains lead are coloured in accordance with the following code:...
  • Page 12 Telephone: +44 (0)333 577 9820* *Telephone lines are open Monday – Friday, 9am – 5pm (Closed Bank Holidays) Email: customersupport@beldray.co.uk Fax: 0161 628 2126 Please have your delivery note to hand as details from it will be required. If you wish to return this product please return it to the retailer from where it was purchased with your receipt (subject to their terms and conditions).
  • Page 13 Distributed by: UP Global Sourcing, Victoria Street, Manchester, OL9 0DD, UK. +44 (0)333 577 9820 customersupport@beldray.co.uk © 2014 Beldray Trademark. All rights reserved. Please retain all instructions for future reference. Made in China. CD080813/MD280214/V4...
