- Page 1 ELEFW195 " 19 HD Digital LED TV...
-
Page 3: Table Of Contents
TABLE OF CONTENTS IMPORTANT INFORMATION PREFACE SAFETY PRECAUTIONS IN THE CARTON FRONT/BACK CONNECTIONS OF TV Power Cord Connection Antenna Connection AV Connection TV INSTALLATION YPbPr omponent Connection DRAWINGS VGA PC Connection COAXIAL Connection HDMI Connection Remote control instructions REMOTE CONTROL Remote control setup Basic Operations Picture Menu Options... -
Page 4: Important Information
IMPORTANT INFORMATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric to persons. The exclamation point within an equilateral triangle is interded to aler the user to the presence of important operating and maintenance (servicing) instruction the literature accompanying the appliance. -
Page 5: Important Safety Instructions
IMPORTANT INFORMATION Important Safety Instructions 1.Read these instructions. 2.Keep these instructions. 3.Heed all warnings. 4.Follow all instructions. 5.Do not use near water. 6.Clean only with dry cloth. 7.Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 6: Preface
PREFACE ENERGY STAR Qualification. This ELEMENT product has earned the ENERGY STAR for meeting U.S. Federal energy efficiency guidelines as set by the Department of Energy and Environmental protection agency. The ENERGY STAR program exists to provide energy saving guidelines and help promote energy efficient products and practices. - Page 7 SAFETY PRECAUTIONS Power cord and cables must be properly placed and protected to prevent people from stepping on them and causing the TV to fall. Keep the TV dry and away from humidity. Keep the TV away from heat sources . Unplug the before cleaning it.
-
Page 8: In The Carton
IN THE CARTON 4. IN THE CARTON SLEEP INFO ADD/ERASE REPEAT V-CHIP LEDTVSET RemoteControl 1.5V WarrantyCard AAABatteries ELEFW195 " 19 HD Digital LED TV 2002460177T USER ' SMANUAL QuickStartGuide RemoteControlGuide... -
Page 9: Front View
FRONT / BACK CONNECTIONS OF TV 5.FRONT/BACK CONNECTIONS OF TV Front View 1.Press“VOL+”or“VOL-”toincreaseordecrease thevolume. 2.Press“CH ”or“CH ”toscanthroughchannels. 3.Press“MENU ” tobringupthemainmenuon the screen. 4. Pres “SOURCE”to select the input source. 5. Pres“POWER”button to turn the TV on or off. 6. REMOTE SENSOR: Infrared sensor for the remote control. -
Page 10: Connections
TV INSTALLTION DRAWINGS 6.TV INSTALLTION DRAWINGS Power Cord Connection - Connect the power cord correctly as shown. - Press the of your L D V to on the L D TV. The power indicator panel lights up in blue. Antenna Connection To ensure good picture and sound, TV antenna system needs to be installed. - Page 11 TV INSTALLTION DRAWINGS AV Connection Connect the VIDEO and AUDIO output jack of the DVD or VCR to the VIDEO jacks on the set using the RCA cable. Match the jack colors: Video is green, Audio left is white, and Audio right is red. Select the AV input source using the SOURCE button on the remote control.
-
Page 12: Vga Pc Connection ( )
TV INSTALLTION DRAWINGS VGA(PC) Connection Connect the RGB output of the PC to the VGA PC jack on the set Connect the AUDIO output of PC to the AUDIO jack on the set Select the VGA input source using the SOURCE button on the remote control TV Back VGA Cable... -
Page 13: Tv Installation Drawings
TV INSTALLATION DRAWINGS HDMI Connection HDMI plug which replaces the HDMI connection allows transfer of all audio video/control signals through one cable only. These signals are transferred in digital. TV Back HDMI Cable DVD Back Wall Mounting The TV is provided with mounting holes for a VESA approved wall mounting bracket(NOTSUPPLIED). Remove the screws holding the base to the base bracket and lift the base away(do not remove the base mounting brackets ).Mount the VESA bracket using 4XST3x10F isometric threaded screws(not supplied). -
Page 14: Remotecontrol
REMOTECONTROL 7 REMOTECONTROL Remote Control Instructions SLEEP INFO ADD/ERASE REPEAT V-CHIP Note:The picture of remote controller is only for reference and is subject to the real one. - Page 15 REMOTE CONTROL :Turn the LED TV ON or OFF. Press to mute the sound. Press again or press V + to un-mute the TV. NUMBERBUTTONS :Press 0-9 to directly change the TV channel. - :Press this button to enter a program number for multiple program channel such as 2-1,etc. :Return to the previous channel viewed.
-
Page 16: Remote Control Setup
REMOTE CONTROL Remote Control Setup 1. Open the cover. 2. Use two AA size batteries When inserting the batteries, make sure correct polarities + and - “ ” “ ” marks on the batteries line up correctly with compartment markings 3. -
Page 17: Menu Operation
MENU OPERATION 8 MENU OPERATION Basic Operations Press button to select your desired mode then press to enter. Choose your Picture Mode Home Mode Energy Saving Standard Mode Exit Are you sure you want Home mode? In this mode ENERGY STAR saving are realized. Return Return Select Your Onscreen Language Preference... - Page 18 MENU OPERATION Navigating the Onscreen Display Press the MENU button to display the main menu. buttons to navigate and select the available menus. MENU MENU Air/Cable MENU MENU Display Mode Standard Mode MENU Choosing a TV Channel Press the CH /CH at the side of the panel or CH /CH on the remote control to scan through...
-
Page 19: Audio Menu Options
MENU OPERATION Picture Menu Options Press the MENU at the side of the panel or on the remote control and then use to move the PICTURE menu, press or OK to enter (see picture below). NOTE: Adjust the parameters of the picture, the Picture Mode is automatically converted to User Mode. -
Page 20: Setup Menu Options
MENU OPERATION Auto Volume Press to switch auto volume control On or Off This function allows volume to be controlled automatically SPDIF Type Press to select between PCM or RAW. Audio Language Press to select audio languages among English French Spanish Time Menu Options Press the MENU at the side of the panel or on the remote control and then use to move the... - Page 21 MENU OPERATION H POS Press and then use to adjust the H POS of the picture V POS Press and then use to adjust the V POS of the picture Clock Press and then use to adjust the Clock of the picture. Phase MENU Press...
- Page 22 MENU OPERATION Change Password button to select the “Change Password” item, then press button to enter into the following menu. Input the new 4-digital password and input it again to confirm. System Lock Allows you to turn on or off the system lock. If you turn off the system lock, then the following items(US, Canada, RRT MENU Setting and Reset RRT) will unable to use.
-
Page 23: Channel Menu Options
MENU OPERATION Information Motion Picture Association of America (MPAA) Rating System TV Parental Guideline Rating System Canadian Rating: Canadian English is used throughout all English-speaking Canada (C, C8+, G, PG, 14+, 18+). Canadian French is used in Quebec (G, 8 ans+, 13 ans+, 16 ans+, 18 ans+) Note: The V-Chip will automatically block certain categories that are “more restrictive”. - Page 24 MENU OPERATION Auto Scan button to highlight Auto Scan”, then “ press button to enter into the following menu. If you select “Air”as input signal in Antenna item, you can press button to search the channels automatically. The receivable channels will be stored automatically. When MENU searching channels, press MENU to stop.
-
Page 25: Troubleshooting
TROUBLESHOOTING 9. TROUBLESHOOTING Please check if you can solve problems by tr ubleshooting yoursel Troubleshooting Control No signal Please check that all cables are correctly plugged in. Adjust the contrast, the color and the brightness. No color shades May be the result from a lighting signal from car, motor, neon light Stain on the and other electrical devices or appliances. -
Page 26: Specifications
SPECIFICATIONS 11.SPECIFICATIONS This manual is only for your reference, any change to the design and specification will not be advised. Screen Size 19 Inch Display Type TFT LED Resolution(Pixel) 1366 X 768 Aspect Ratio 16:9 Input Power DC 12V, 2.5A Power Consumption TV System ATSC/NTSC...
Need help?
Do you have a question about the ELEFW195 and is the answer not in the manual?
Questions and answers
ELEFW 195 element TV trying to set up a digital HDTV antenna to get local channels
To set up a digital HDTV antenna for local channels on an Element ELEFW195 TV:
1. Connect the Antenna: Plug the digital HDTV antenna into the "ANT IN" or "RF IN" port on the back of the TV.
2. Access the Menu: Press the MENU button on the remote or TV.
3. Select Channel Menu: Use the navigation buttons to go to the "CHANNEL" menu.
4. Choose Air/Cable: Select "Air" for an over-the-air antenna.
5. Start Auto Scan: Select "Auto Scan" to search for available local channels.
6. Wait for Scan to Complete: The TV will find and store available channels.
7. Exit Menu: Once scanning is complete, exit the menu and use the channel buttons to browse available channels.
This answer is automatically generated
Element ELEFW195 TV cannot set up a digital HDTV antenna having trouble
To set up a digital HDTV antenna with the Element ELEFW195 TV, follow these steps:
1. Locate the Antenna Input: Find the "Antenna Input (75Ω VHF/UHF)" port on the back of the TV.
2. Connect the Antenna: Plug the coaxial cable from the HDTV antenna into the Antenna Input.
3. Power the Antenna (if needed): If the antenna has an external power source, ensure it is plugged in and powered on.
4. Access the TV Menu: Turn on the TV and press the "MENU" button on the remote.
5. Select Channel Menu: Navigate to the "Channel Menu" using the arrow buttons.
6. Choose Auto Scan: Select the "Auto Scan" option to search for available digital channels.
7. Wait for the Scan to Complete: The TV will find and store all available channels automatically.
8. Save and Exit: Once the scan is finished, save the settings and exit the menu.
9. Test the Channels: Use the channel up/down buttons to browse the available channels.
If reception is poor, try repositioning the antenna, increasing its height, or using an amplifier if supported.
This answer is automatically generated

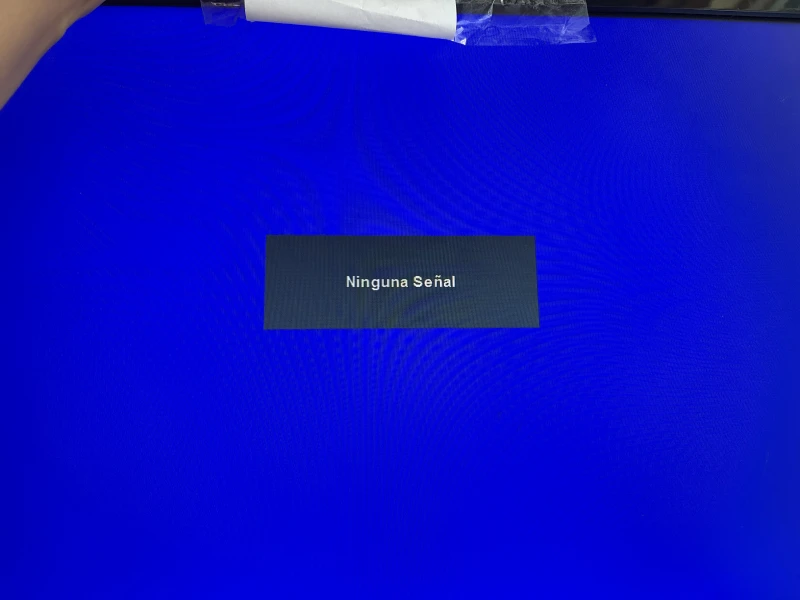

Hola. Mi monitor siempre dice sin señal y no sale de Hdmi
