Chrysler 2002 PT Cruiser Specifications

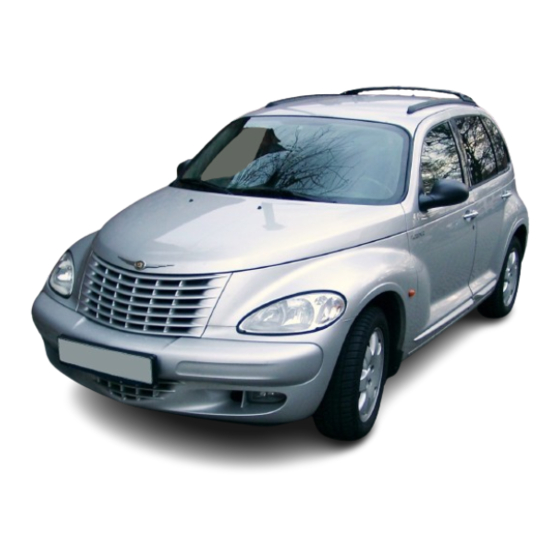

2002 CHRYSLER PT CRUISER

ALL CHRYSLER PT CRUISER MODELS INCLUDE:

Air Bags* – Next-Generation driver and front passenger
Air Conditioning – Manual temperature controls
Brake-Park Interlock – Cannot be shifted out of Park until brake
pedal is depressed (automatic transmission)
Brakes – Front disc/rear drum
Child-Seat Anchorage System – LATCH-ready, at each back
seat position
Climate-Control Outlets – Rear, located near the rear of standard
floor console
Clutch-Starter Interlock – Cannot start engine until clutch is
depressed (manual transmission)
Console – Floor – Includes four cup holders, coin holders, letter
holder, cassette/CD storage, multipurpose bin, pen/pencil tray
and auxiliary power outlet
Defroster – Electric rear window
Door Handles – Exterior – Chrome, push-button actuated
Door Locks – Power, speed-sensitive with central locking, child-
protection, rear
Engine Block Heater
Floor Mats – Front and rear, carpeted
Glass – Deep-tint sunscreen for rear passenger doors, rear quarter
windows and liftgate
Glove Box – Locking
Instrument Cluster – Speedometer, tachometer, odometer, trip
odometer; gauges for fuel level, engine coolant temperature,
oil pressure; off-white faced with chrome accents
Instrument Panel Trim – Colour-keyed inserts for Deep Cranberry,
Inferno Red, Steel Blue and Patriot Blue. Light Pewter Metallic
inserts for Light Almond, Taupe Frost, Bright Silver, Black and
Stone White
Liftgate Handle – Integrated into rear Chrysler winged badge
Lighting
Exterior – Quad-halogen headlamps
– Tail lamps with amber-colour turn signals
Interior – Dome lamp with theatre-dimming feature
– Cargo area lamp
Mirrors
Exterior – Dual power, heated, foldaway, exterior rearview
Interior – Day/night rearview and dual visor vanity mirrors
*Certified to federal regulations using less forceful front air bags. Always use seat belts. Children 12 or under should always be in a back seat correctly using an infant or child restraint system, or a seat belt,
that is right for their age and size.
SPECIFICATIONS

INTERIOR DIMENSIONS*

Headroom – Front..........................1026 (40.4)
– Rear ..........................1006 (39.6)
Legroom – Front..........................1031 (40.6)
– Rear ..........................1036 (40.8)
Shoulder – Front..........................1387 (54.6)
Room – Rear ..........................1369 (53.9)
Hiproom – Front..........................1372 (54.0)
– Rear ..........................1188 (46.8)
Seating Capacity...................................................5
Passenger Interior Volume L (cu. ft.) ...2866 (101.2)
Cargo Volume L (cu. ft.) – Behind
Rear Seat with Shelf Panel Removed ...538 (19.0)
Rear Seat Removed..............................1818 (64.2)
Remote Keyless Entry – Controls for illuminated entry system,
door and liftgate locks, panic alarm and security alarm system;
includes two transmitters
Seat Belts – Three-point for all seating positions with height-
adjustable driver and front-passenger shoulder belts, travelling
inboard buckles and pretensioners
Seats
Front – Low-back buckets with driver and passenger inboard
Rear – 65/35 split that can be folded, folded and tumbled or
Sentry Key
encoded keys
Shelf Panel – Rear, multiposition with integral grocery bag hooks
Side-Impact Intrusion Protection – Includes steel side-guard
door beams, unique transverse beam and structural body
reinforcements
Speed Control
Steering – Power-assisted rack-and-pinion, 18:1 ratio
Steering Column – Height-adjustable
Storage Drawer – Under front passenger seat
Storage Pockets
– Front and rear doors
– Front-passenger seatback
Sun Visors – Dual, cloth-covered
Suspension
Front – Independent suspension with MacPherson struts,
Rear – Solid trailing arm twist-beam axle with coil springs,
Touring
Tire – Compact spare
Windows – Power with driver and front-passenger
one-touch-down feature
Wiper System
Front – Windshield, two-speed with variable intermittent mode
Rear – Wiper/washer

EXTERIOR DIMENSIONS*

Wheelbase .........................................2616 (103.0)
Overall Length ....................................4288 (168.8)
Overall Width .......................................1704 (67.1)
Overall Height.......................................1600 (63.0)
Track – Front..........................1481 (58.3)
– Rear ..........................1478 (58.2)
armrest, front-passenger seatback storage net
and two-way adjustable locking head restraint
removed with quick-release latches, carry handles
and wheels
® Engine Immobilizer – Theft-deterrent system, with two
coil springs and stabilizer bar
shock absorbers, Watt's linkage and stabilizer bar

ENGINE SPECIFICATIONS*

Drivetrain...............................................................FWD
Engine Configuration ......................In-Line 4-Cylinder
Displacement ................................2.4-litre (148.2 CID)
Bore and Stroke..........................87 (3.44) x 101 (3.98)
Valve System .......................................DOHC 16-Valve
Fuel System ......Sequential Multi-point Fuel Injection
Net Power – kW (bhp) @ rpm ........112 (150) @ 5500
Net Torque – N·m (lb-ft) @ rpm......220 (162) @ 4000

OTHER

Base Curb Weight kg (lb.) .........................1409 (3107)
Turning Diameter m (ft.)
– 15" tires and manual transmission .........11.1 (36.5)
– 16" tires and automatic transmission .....12.2 (40.1)
Maximum Towing Capacity
Coefficient of Drag ..............................................0.379
Fuel Tank Capacity L (Imp. gal.)......................57 (12.5)
*Dimensions shown in mm (in.) unless otherwise specified.
†
When properly equipped. Refer to Owner's Manual for restrictions.
†
kg (lb.) ..........454 (1000)
