Please read this instruction booklet before using the appliance
1
1. Hob Top
2. Normal Hotplate - 1500 W -180 mm dia.
3. Normal Hotplate - 1000 W - 145 mm dia.
4. Rapid Hotplate - 2000 W - 180 mm dia.
5. Rapid Hotplate - 1500 W - 145 mm dia.
6. Control knobs
7. Electric Hotplates Control Light
INSTRUCTION BOOKLET
Keep this instruction book for future
reference and ensure it is passed on to any
new owner.
2
5
These instructions are only valid for :
ELECTRIC HOB
3
4
7
Any electrical work required to install
this hob should be carried out by a
qualified electrician or competent
person, in accordance with the
current regulations.
THIS HOB MUST BE EARTHED.
GB
MEH 631
6
Advertisement
Table of Contents
Related Manuals for Moffat MEH 631
Summary of Contents for Moffat MEH 631
-
Page 1: Electric Hob
Keep this instruction book for future new owner. These instructions are only valid for : ELECTRIC HOB MEH 631 Any electrical work required to install this hob should be carried out by a qualified electrician or competent person, in accordance with the current regulations. -
Page 2: Important Safety Information
Important Safety Information You MUST read hese warnings carefully before installing or using the hob. If you need assistance, contact our Customer Care Department on 08705 950950 Installation This hob must be installed by qualified personnel, according manufacturer's instructions and to the relevant British Standards. -
Page 3: Environmental Information
This hob should only be repaired or serviced by an authorised Service Engineer and only genuine approved spare parts should be used. Environmental Information After installation, please dispose of the packaging with due regard to safety and the environment. When disposing of an old appliance, make it unusable, by cutting off the cable. -
Page 4: Operation
Operation Electric Hotplates To switch on a hotplate, turn the relevant control knob anticlockwise to the required heat setting. The control knob is numbered 1 - 6 MINIMUM To keep food warm Very Gentle To melt butter and chocolate Gentle To prepare cream-sauces, stews and milk puddings or to fry eggs... -
Page 5: Maintenance And Cleaning
Maintenance and Cleaning Before any maintenance or cleaning can be carried out, you must DISCONNECT the hob from the electricity supply. The hob is best cleaned whilst it is still warm, as spillage can be removed more easily than if it is left to cool. The Hob Top Regularly wipe over the hob top using a soft cloth well wrung out in warm water to which a... -
Page 6: Specifications
Instructions for the Installer This hob must be installed by qualified personnel to the relevant British Standards. - The manufacturer will not accept liability, should the following instructions or any of the other safety instructions incorporated in this book be ignored. -
Page 7: Important Safety Requirements
Important safety requirements This hob must be installed in accordance with the IEE Wiring Regulations (Current Edition). Detailed recommendations are contained in the following British Standards Codes Of Practice: B.S. 6172/ B.S. 5440, Par. 2 and B.S. 6891 Current Editions. Location This hob has been registered as a "Class X"... -
Page 8: Building Over A Cupboard Or Drawer
Building In Building over a cupboard or drawer If the hob is to be installed above a cupboard or drawer it will be necessary to fit a heat resistant board below the base of the hob on the underside of the work surface. It is also recommended to carry out the electrical connection to the hob as shown in diagrams 1 and 2. -
Page 9: Electrical Connections
Electrical connections This hob is designed to be connected to a 230V 50Hz AC electrical supply. Before switching on, make sure the electricity supply voltage is the same as that indicated on the hob rating plate. The rating plate is located on the bottom of the hob. A copy is attached on the back cover of this book. -
Page 10: Service And Spare Parts
United Kingdom. * Appliances found to be in use within a commercial or similar environment, plus those which are the subject to rental agreements. * Products of Moffat manufacture which are not marketed by Moffat. resulting from... - Page 12 www.electrolux.com 35676-3003 05/06...
Need help?
Do you have a question about the MEH 631 and is the answer not in the manual?
Questions and answers

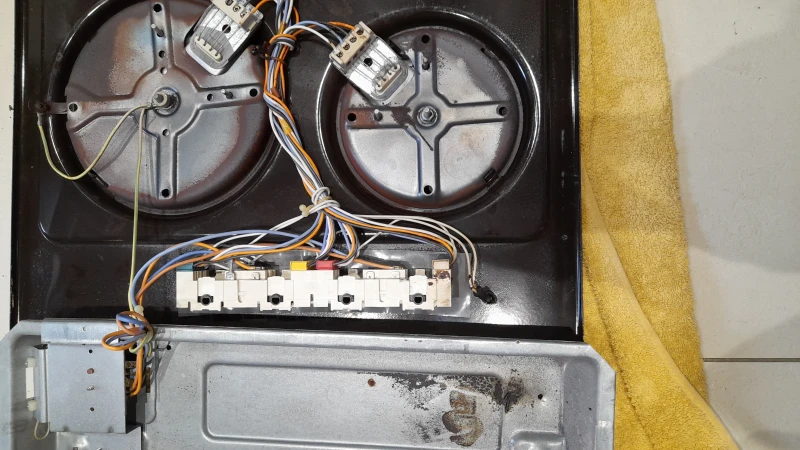

Where is fuse located on hob
