- Page 1 Scout PS-Series Thermal Imager Operator’s Manual Document Number: 431-PS00-00-10 Revision: 110 October 2011 FLIR-DIRECT .com info@FLIR-Direct.com 1.888.475.5235...
- Page 2 FLIR for proper disposal. This document is controlled to FLIR Technology Level EAR 1. The information contained in this document is proprietary and/or restricted and pertains to a dual use product controlled for export by the Export Administration Regulations (EAR).
-
Page 3: Table Of Contents
The battery used in this device may present a risk of fire or chemical burn if mistreated. Do not disassemble the camera, store above 60°C, or incinerate. The battery is factory replaceable only and must be replaced with the identical battery pack. 431-PS00-00-10, Revision 110 FLIR-DIRECT .com info@FLIR-Direct.com 1.888.475.5235... - Page 4 — Scout PS-Series Operator’s Manual October 2011 FLIR-DIRECT .com info@FLIR-Direct.com 1.888.475.5235...
-
Page 5: Introduction

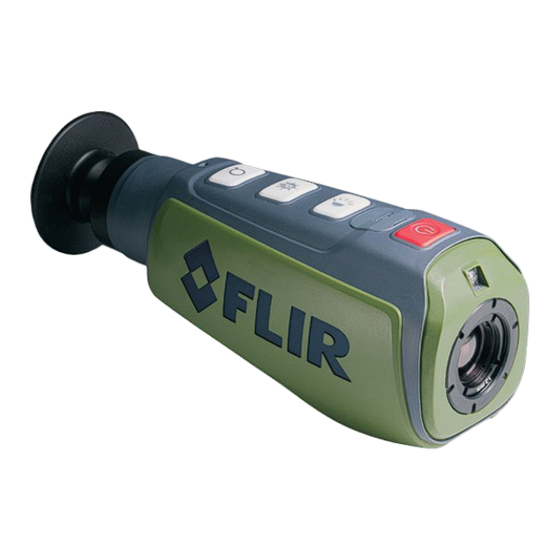

1 Introduction FLIR’s Scout PS-Series thermal handheld cameras give hikers, hunters, and outdoorsmen the ability to see clearly in total darkness, providing a wealth of information during any nighttime excursion. The Scout PS-Series camera enables the outdoorsman to: • See animals and difficult terrain in reduced visibility or total darkness •... -
Page 6: Scout Ps-Series Camera Features
Do not point the camera directly at extremely high-intensity radiation sources, such as the sun, lasers, arc welders, etc. Be careful not to leave fingerprints on the camera’s infrared optics. Clean only with low pressure fresh water and a lens cloth. October 2011 FLIR-DIRECT .com info@FLIR-Direct.com 1.888.475.5235... -
Page 7: Getting Started
Refer to the packing list enclosed with your camera shipment to determine the actual contents of your camera package. • PS24 and PS32 Cameras In addition to the camera, Quick Start card, and Documentation/ Training CD or DVD; the following items are included in the camera... - Page 8 2—Getting Started Scout PS-Series Operator’s Manual • PS24 and PS32 Camera Options The following optional accessories are available for the Scout PS- Series camera Molle-Compatible Belt Holster Floating Lanyard Camera Carrying Pouch October 2011 FLIR-DIRECT .com info@FLIR-Direct.com 1.888.475.5235...
-
Page 9: Operating Your Scout Ps-Series Camera
Camera Features and Controls Power Display Brightness/ × zoom/ (Tasklight On/Off Freeze Frame when Camera in off state) Eyepiece White hot/ Adjustable LED Tasklight USB/Charging Black hot/ diopter ±2 Plug Instalert Lanyard Clip 431-PS00-00-10, Revision 110 FLIR-DIRECT .com info@FLIR-Direct.com 1.888.475.5235... -
Page 10: Charging The Camera
• When fully charged, the charging indicator will light solid green. The initial charge time is approximately 5 hours. Plug in USB Charger Charging indicator orange when charging Charging indicator green when fully charged October 2011 FLIR-DIRECT .com info@FLIR-Direct.com 1.888.475.5235... -
Page 11: Scout Ps-Series Power Management
When the camera is turned on from the Off state, it takes about four seconds to become operational. During the Bootup process, The FLIR splash screen is shown and then the software version is displayed briefly. Pressing the Power button will toggle the camera between On and Off. - Page 12 When switching between palettes, the appropriate icon is displayed for approximately 3 seconds. White hot Black hot Instalert™ 1 – 4 October 2011 FLIR-DIRECT .com info@FLIR-Direct.com 1.888.475.5235...
- Page 13 Scout PS-Series Operator’s Manual 3—Operating Your Scout PS-Series Zoom Button—PS32 models only Use this button to switch the camera between no zoom (full resolution) and 2× zoom. The central part of the image is magnified twice its normal size when 2× is selected.
-
Page 14: Battery
Press any button during this countdown to terminate Auto Shutdown and resume normal operation. Note Pressing any button during an Auto Shutdown countdown will only terminate the countdown and abort the shutdown. The normal function of the button will not occur. October 2011 FLIR-DIRECT .com info@FLIR-Direct.com 1.888.475.5235... -
Page 15: Technical Data
Detector Type VOx Microbolometer × Resolution 180 pixels PS24 × 240 pixels PS32 Image Processing FLIR Proprietary Digital Detail Enhancement × Focus, Zoom Fixed focus. 2 electronic zoom on applicable models only. Video Display NTSC 7.5 Hz refresh rate 4–2... -
Page 16: Environmental
Operational Temp. -4°F to 122°F (-20°C to 50°C) Storage Temp. -40°F to 140°F (-40°C to 60°C) Ratings IP-67, 1 meter drop 4–4 Physical PS24, PS32 Weight 12 oz. (340 g) with battery × × × × Size (L 6.70” 2.31”... - Page 17 FLIR-DIRECT .com info@FLIR-Direct.com 1.888.475.5235...
- Page 18 Santa Barbara Portland FLIR Commercial Systems, Inc. FLIR Corporate Headquarters World Headquarters FLIR Systems, Inc. FLIR Systems, Inc. 27700A SW Parkway Ave. 70 Castilian Dr. Wilsonville, OR 97070 Goleta, CA 93117 PH: +1.888.747.FLIR (+1.888.747.3547) Europe FLIR Commercial Systems B.V. Charles Petitweg 21...
