Summary of Contents for Zanussi ZDH8333W

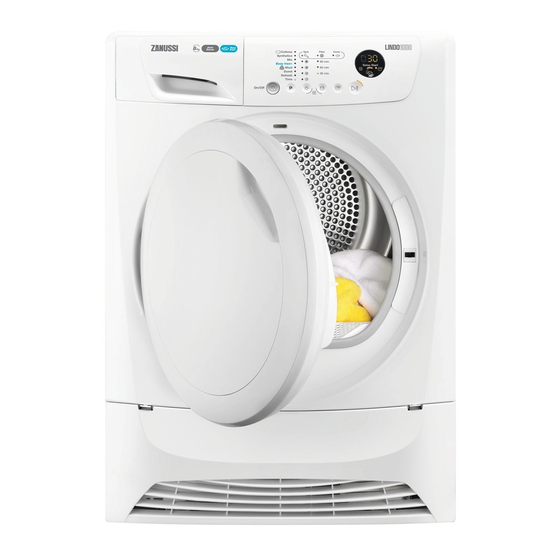

- Page 1 User Manual GETTING STARTED? EASY. ZDH8333W EN User Manual Tumble Dryer...
-
Page 2: Safety Information
SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference. - Read the supplied instructions. -
Page 3: Children And Vulnerable People Safety
Obey the maximum load volume of 8kg (refer to the • “Programme chart” chapter). Do not use the appliance if industrial chemicals have been used • for cleaning. Wipe away lint that has accumulated around the appliance. • Do not run the appliance without a filter. Clean the lint filter •... -
Page 4: Safety Instructions
been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Do not let children play with the appliance. • Children of less than 3 years should be kept away unless • continuously supervised. - Page 5 CARE AND CLEANING WARNING! Risk of injury or damage to the appliance. • Do not use water spray and steam to clean the appliance. • Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
-
Page 6: Easy Start
EASY START PRODUCT DESCRIPTION Water container Control panel Appliance door Primary Filter Bottom cover with the airflow slots WARNING! Do not put any object on the bottom cover Buttons to open the bottom cover Adjustable feet Heat exchanger door Knob to lock the heat exchanger door Rating plate The load door can be installed by the user in the opposite side. -
Page 7: Programme Table
Delay touchpad Touch the touchpads with your finger Display in the area with the symbol or name of the option. Do not wear gloves when Indicators you operate with the control panel. Make sure that the control panel is always clean and dry. Indicators Indicators Description... -
Page 8: Anticrease 90 Min
Load (max.) Programmes Type of load Fabric mark Wool fabrics. Gentle drying washable woollens. Remove immediately the items when the programme is completed. Wool For drying sport shoes only with Drying Rack (see separate 1 pair of sport user manual provided with Drying Rack). shoes To dry one or two duvet and pillows (with feather, down or Duvet... -
Page 9: Options Table
the duration is related to the quantity of laundry We recommend that you set a short in the appliance. duration for small quantities of laundry • Wool programme: You can set the or for only one item. programme duration, from a minimum of 30 minutes to a maximum of 4 hours. -
Page 10: Buzzer On/Off
SETTINGS The child lock indicator comes on. It is possible to deactivate the child lock option while a programme operates. Press and hold the same touchpads until the child lock indicator goes off. BUZZER ON/OFF To deactivate or activate the acoustic signals, press A) On / Off button and hold for approximately 2 seconds touchpads (B) and (C) at the same time. -
Page 11: Hints And Tips
STAND-BY FUNCTION CAUTION! Make sure that when To decrease the energy consumption, this function you close the door, the laundry automatically deactivates the appliance: does not catch between the appliance door and the rubber • After 5 minutes if you do not start the seal. -
Page 12: Care And Cleaning
Fabric label Description Laundry that is applicable for tumble dryer. Laundry that is applicable for tumble dryer. Set the programme with standard temperature. Laundry that is applicable for tumble dryer. Set the programme with low tempera- ture. Laundry that is not applicable for tumble dryer. CARE AND CLEANING CLEANING THE FILTER DRAINING THE WATER CONTAINER... - Page 13 CLEANING THE CONDENSER if necessary, one time for each 6 months, remove the fluff from the heat exchanger compartment. You can use a vacuum cleaner. CLEANING THE DRUM Use a moist cloth to clean. Dry the cleaned surfaces with a soft cloth. WARNING! Disconnect the appliance before you clean it.
-
Page 14: Troubleshooting
TROUBLESHOOTING Problem Possible solution You cannot activate the appliance. Make sure that the mains plug is connected to the mains socket. Check fuse in fuse box (domestic installation). The programme does not start. Press Start/Pause. Make sure that the appliance door is closed. The appliance door does not close. -
Page 15: Consumption Data
Max. width with the appliance door open 950 mm Adjustable height 850 mm (+ 15 mm - feet regulation) Drum volume 118 l Maximum load volume 8 kg Voltage 230 - 240 V Frequency 50 Hz Necessary fuse 13 A Total power 950 W Energy efficiency class... -
Page 16: Environmental Concerns
ENVIRONMENTAL CONCERNS Recycle the materials with the symbol . Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. - Page 20 WWW.ZANUSSI.COM/SHOP...
