Page 1: Installation Manual

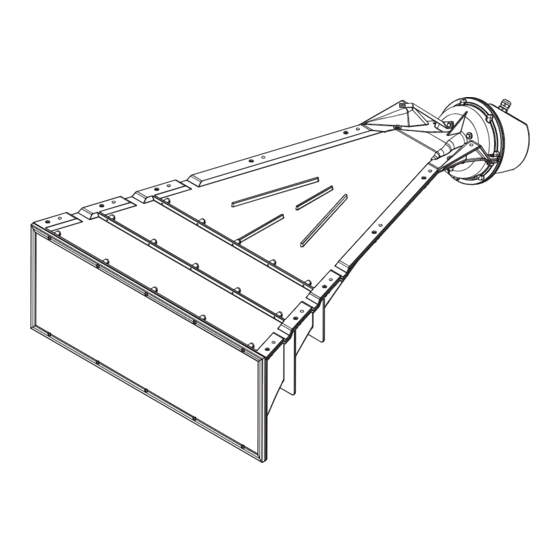

Installation Manual ® AXYS ABF-260 Model ABF-260/100W PA6 V0 (Part No. 570285) -
Page 2: Reference To Statements Of Conformity
AXYS ® ABF-260/100W PA6 V0 Installation Manual REFERENCE TO EC STATEMENT OF CONFORMITY This document confirms that this product manufactured USER’S NOTICE AND DISCLAIMER: by Duran Audio bears the CE label and meets the No part of this manual including the software described in requirements of the following standard: it may be reproduced, transmitted, transcribed, stored in a Safety:... -
Page 3: Table Of Contents
AXYS ® ABF-260/100W PA6 V0 Installation Manual TABLE OF CONTENTS Reference to Statements of Conformity ....2 User’s Notice and disclaimer ......2 1. -
Page 4: Important Safety Instructions
AXYS ® ABF-260/100W PA6 V0 Installation Manual 1. IMPORTANT SAFETY INSTRUCTIONS This symbol is intended to alert you to the 8) Do not install near any heat sources such as radiators, presence of uninsulated dangerous voltages heat registers, stoves, or other apparatus (including within the product's enclosure that may be of amplifiers) that produce heat. -
Page 5: Introduction
AXYS ® ABF-260/100W PA6 V0 Installation Manual 2. INTRODUCTION ® This manual describes the recommended installation The AXYS ABF-260 employs the patented principle of ® procedures for the AXYS ABF-260 range of loudspeakers. Acoustic Boundary Flare (ABF) geometry. It is designed to be mounted directly on the roof of the tunnel;... -
Page 6: Unpacking
AXYS ® ABF-260/100W PA6 V0 Installation Manual UNPACKING OVERVIEW The ABF-260 is shipped in a cardboard packing case. If installing an ABF-260 for the first time, it may be helpful to spend a few moments identifying the unit’s main In addition to the horn loudspeaker itself, the shipment also features after unpacking*. -
Page 7: Installation Guide
AXYS ® ABF-260/100W PA6 V0 Installation Manual 3. INSTALLATION GUIDE PREPARING FOR INSTALLATION MECHANICAL INSTALLATION Location It is assumed that the installation site (e.g. tunnel) has been the subject of extensive acoustic analysis prior to the actual The ideal mounting situation for the ABF-260 is with the upper installation. -
Page 8: Fixing To A Curved Roof
AXYS ® ABF-260/100W PA6 V0 Installation Manual 1104 1025 9 (12x mounting holes) Reference poin t for acoustical m oun tin g fig.2: Mechanical references. all dimensions are in mm 1025 FIXING TO A CURVED ROOF NON-FLUSH INSTALLATION In a tunnel with a curved roof, a totally flush fitment will be If an acceptably flat fitment to the tunnel roof is unachievable, the degree of deviation being dependent on unobtainable, either due to the tunnel’s curvature or to lack... -
Page 9: Electrical Connections
AXYS ® ABF-260/100W PA6 V0 Installation Manual 4. ELECTRICAL CONNECTIONS CABLE SPECIFICATIONS Wire cross-section 1.0 dB loss 3.0 dB loss 0.50 mm 142 m 479 m The maximum permissible cable length is dependent on the 0.75 mm 212 m 718 m 1.00 mm 283 m 957 m... -
Page 10: Wiring Details
AXYS ® ABF-260/100W PA6 V0 Installation Manual WIRING DETAILS 6. Re-position the rear cover [2]. Ensure that the gasket [4] is Electrical connection to the ABF-260 is made via a terminal properly positioned and that the rear cover is properly block located inside the rear cover. -
Page 11: Monitoring
AXYS ® ABF-260/100W PA6 V0 Installation Manual MONITORING THERMAL PROTECTION Life safety installations typically have very low duty cycles; In a PA/VA system, it is important that the failure of a single that is, they spend the most of their service lives not being loudspeaker does not incapacitate the rest of the system. -
Page 12: Appendix
AXYS ® ABF-260/100W PA6 V0 Installation Manual APPENDIX MAINTENANCE AND CLEANING water, bird droppings and other detritus. Regular cleaning The ABF-260 is designed to operate for an extended of this protection grid might be required in order to avoid duration in a hostile environment. The driver enclosure is deterioration of the acoustical performance of the ABF-260. -
Page 13: Exploded Views
AXYS ® ABF-260/100W PA6 V0 Installation Manual EXPLODED VIEWS fig.3: Exploded View (front). 1 ABF-260 horn Top&Bottom assembly PA6-V0 2 ABF-260 Horn Sealing Cover PA6-V0 18 Front Cover For ABF Horn, PA6-V0 model H345 35 EJOT PT Button Head Flanged Screw,TX20, 5x25mm, A4 201407/ABFPA6IM_v1.0... - Page 14 AXYS ® ABF-260/100W PA6 V0 Installation Manual J ( 1 : 1 ) H ( 1 : 1 ) fig.3: Exploded View (rear). 1 ABF-260 horn Top&Bottom assembly PA6-V0 27 ABF-260 Fall protecion bracket Outside 2 ABF-260 Horn Sealing Cover PA6-V0 28 Duran 100 CD 2 Inch, 100Watt compression driver 8 ohms 3 Trafo Assembly for ABF-260 horn PA6-V0 model,...
